Pinpoint Test R: The Traction Control Is Inoperative

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

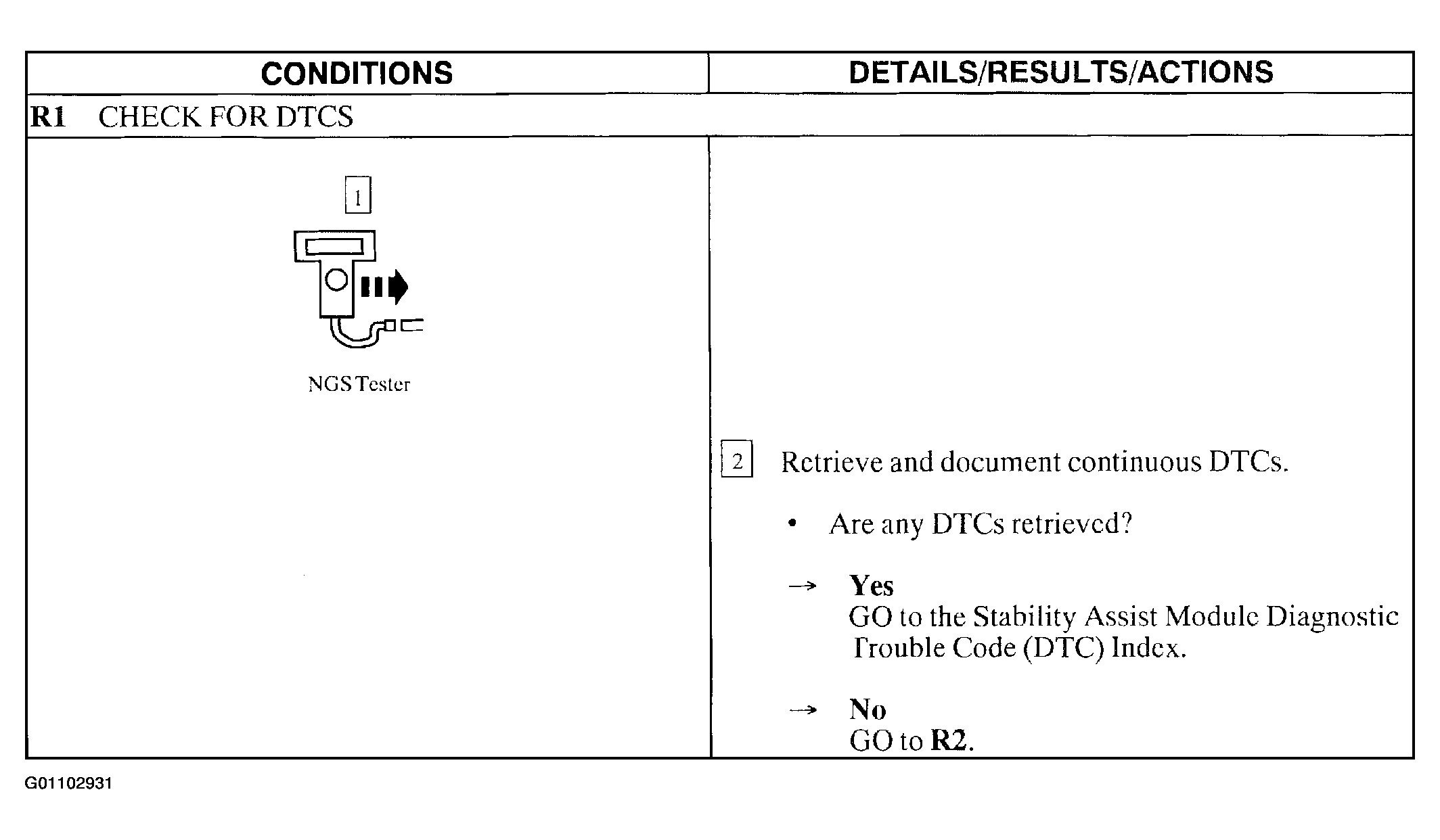

Fig 1: Pinpoint Test R: The Traction Control Is Inoperative (Step R1)

Courtesy of FORD MOTOR CO.

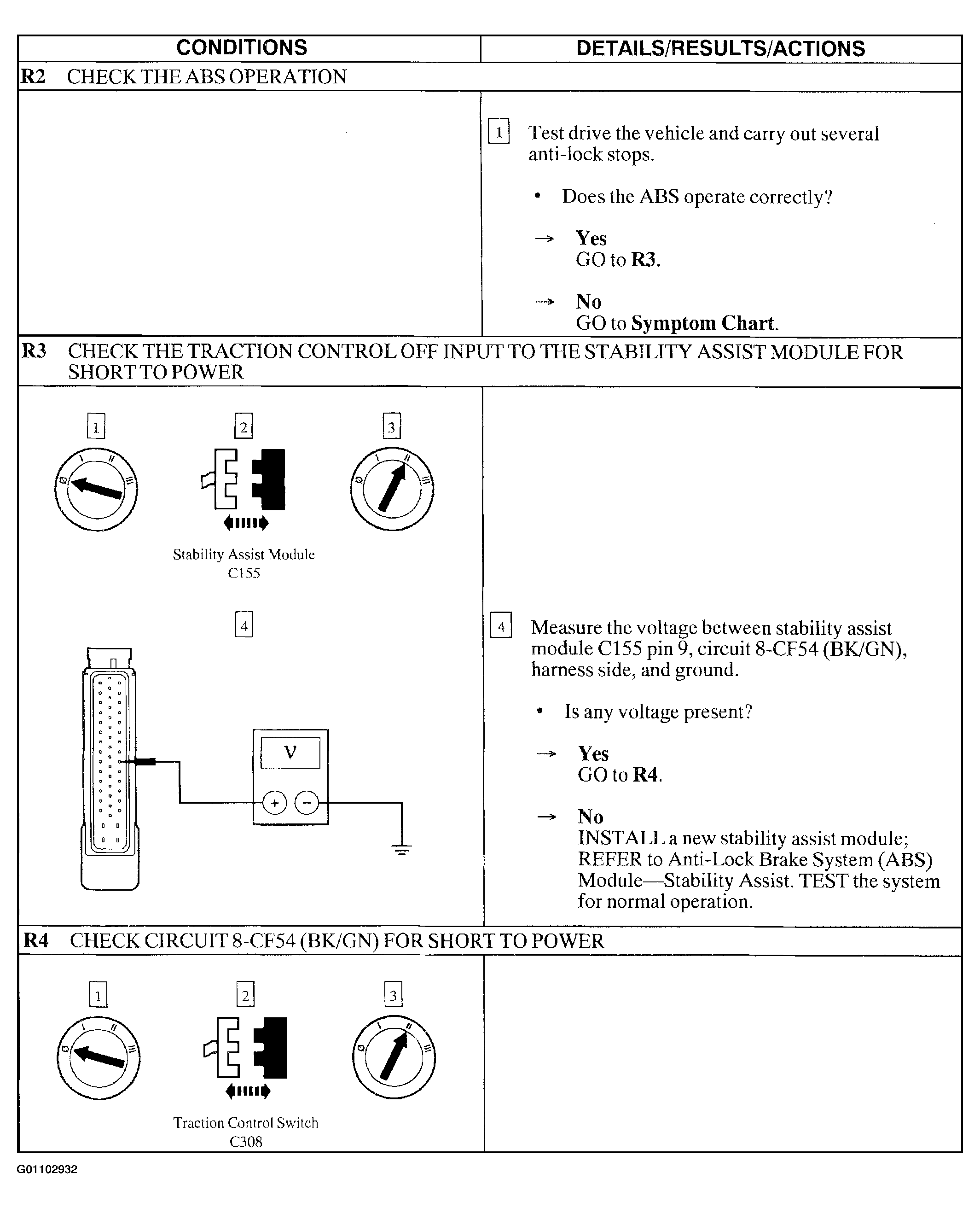

Fig 2: Pinpoint Test R: The Traction Control Is Inoperative (Steps R2-R4)

Courtesy of FORD MOTOR CO.

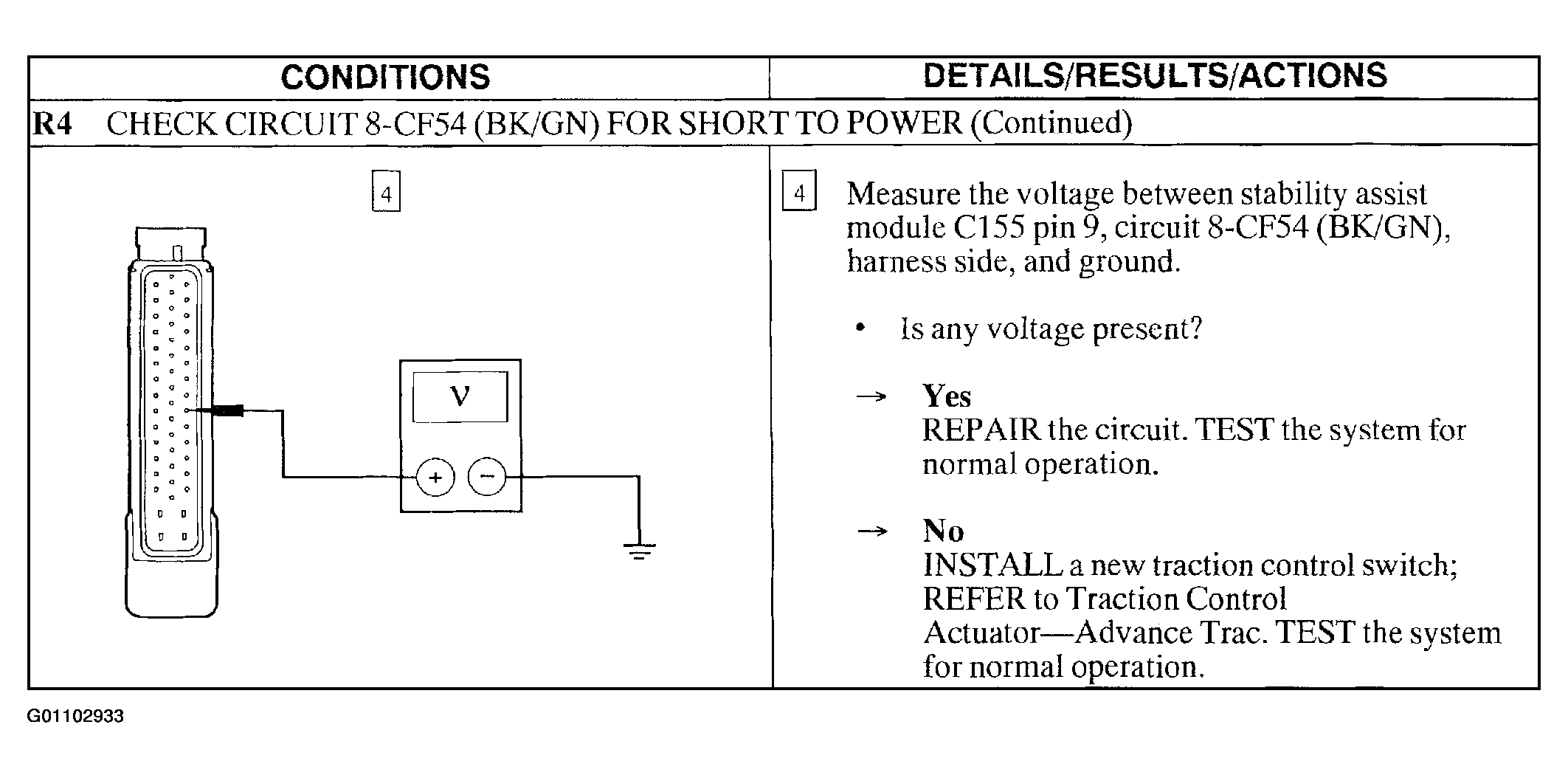

Fig 3: Pinpoint Test R: The Traction Control Is Inoperative (Step R4 Cont.)

Courtesy of FORD MOTOR CO.
