Pinpoint Test Q: The Yellow ABS Warning Indicator Does Not Self-Check

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

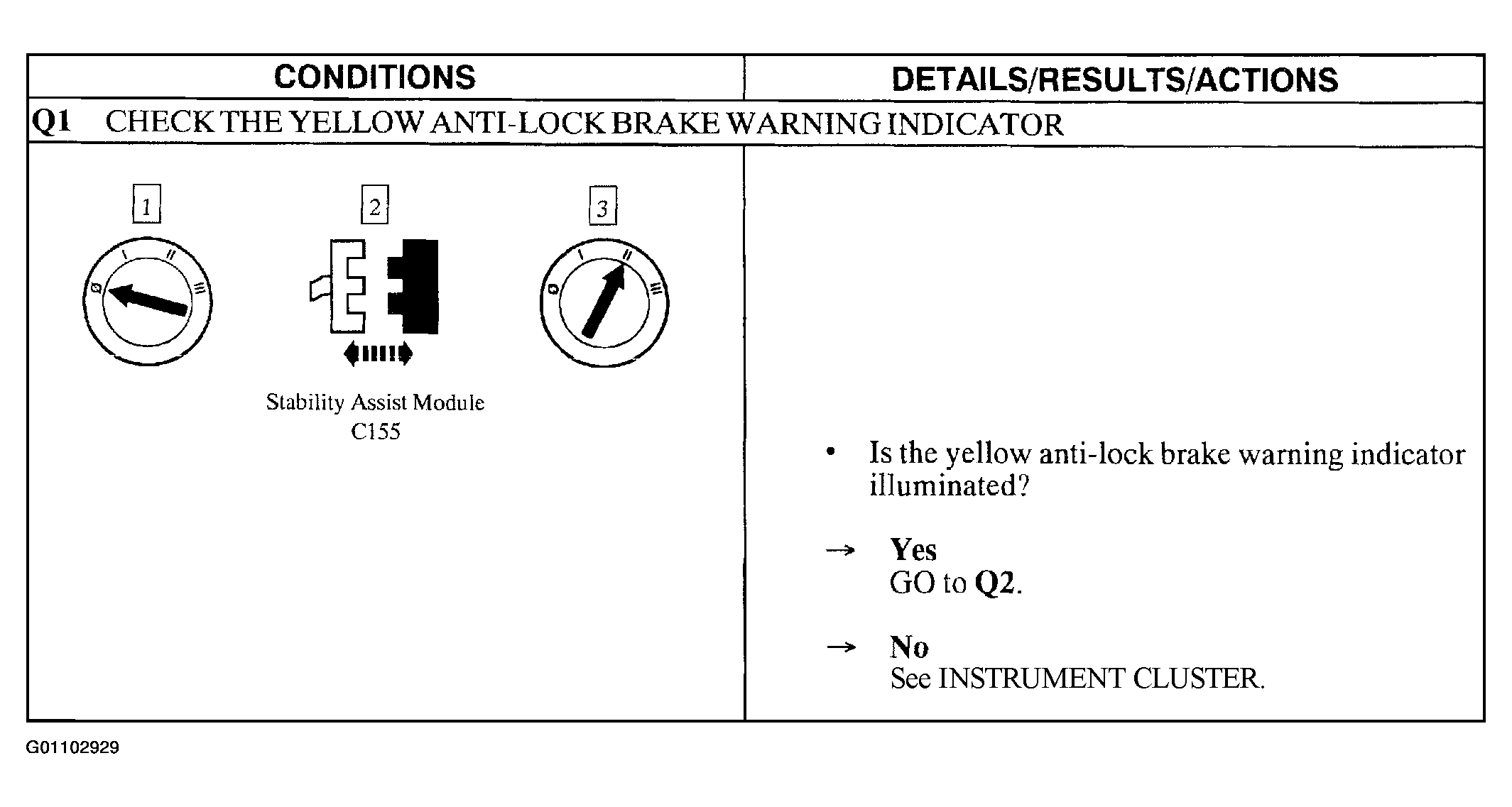

Fig 1: Pinpoint Test Q: The Yellow ABS Warning Indicator Does Not Self-Check (Step Q1)

Courtesy of FORD MOTOR CO.

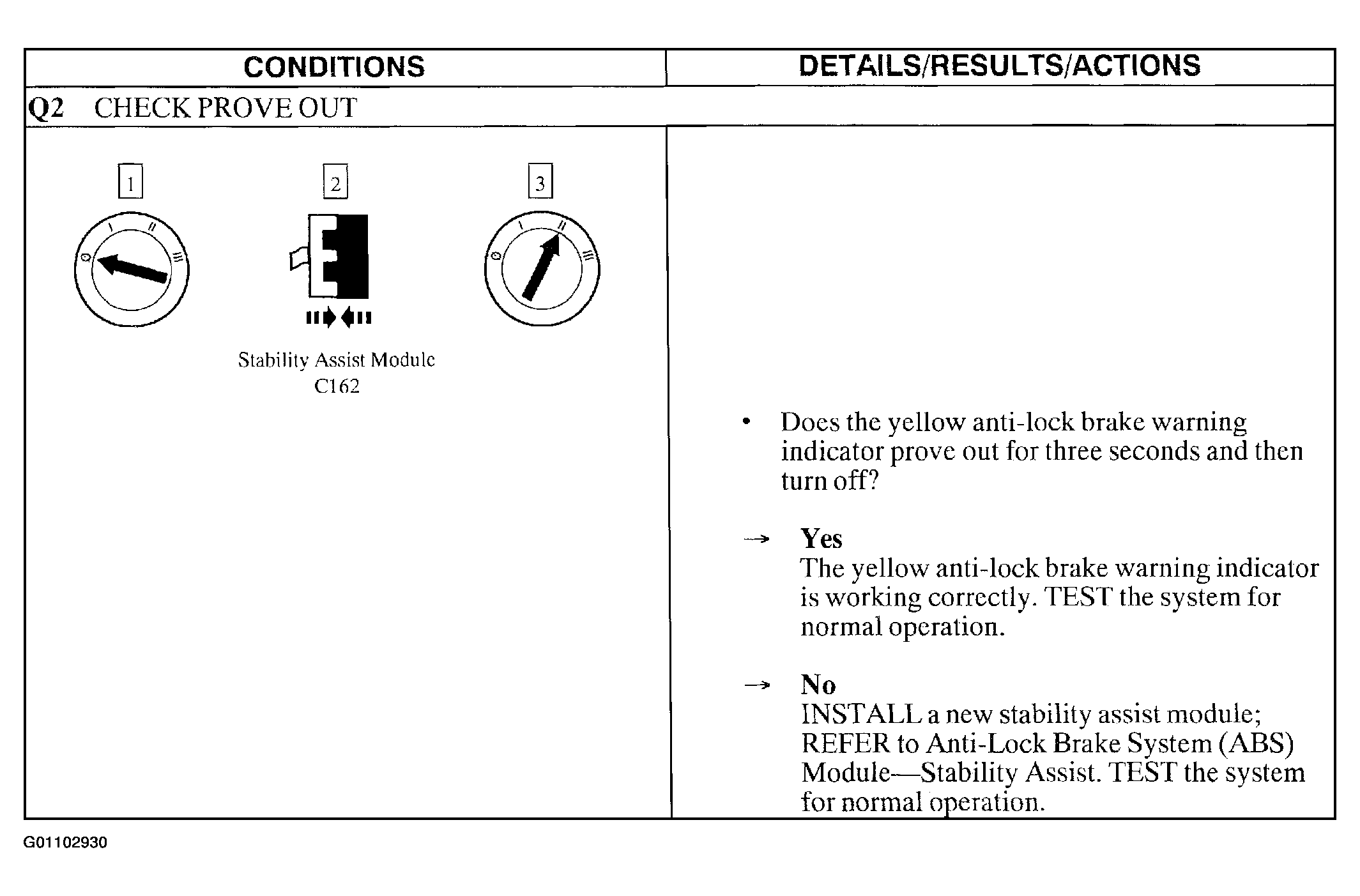

Fig 2: Pinpoint Test Q: The Yellow ABS Warning Indicator Does Not Self-Check (Step Q2)

Courtesy of FORD MOTOR CO.
