Pinpoint Test P: DTC C1960 - Driver Brake Apply Circuit Fault

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

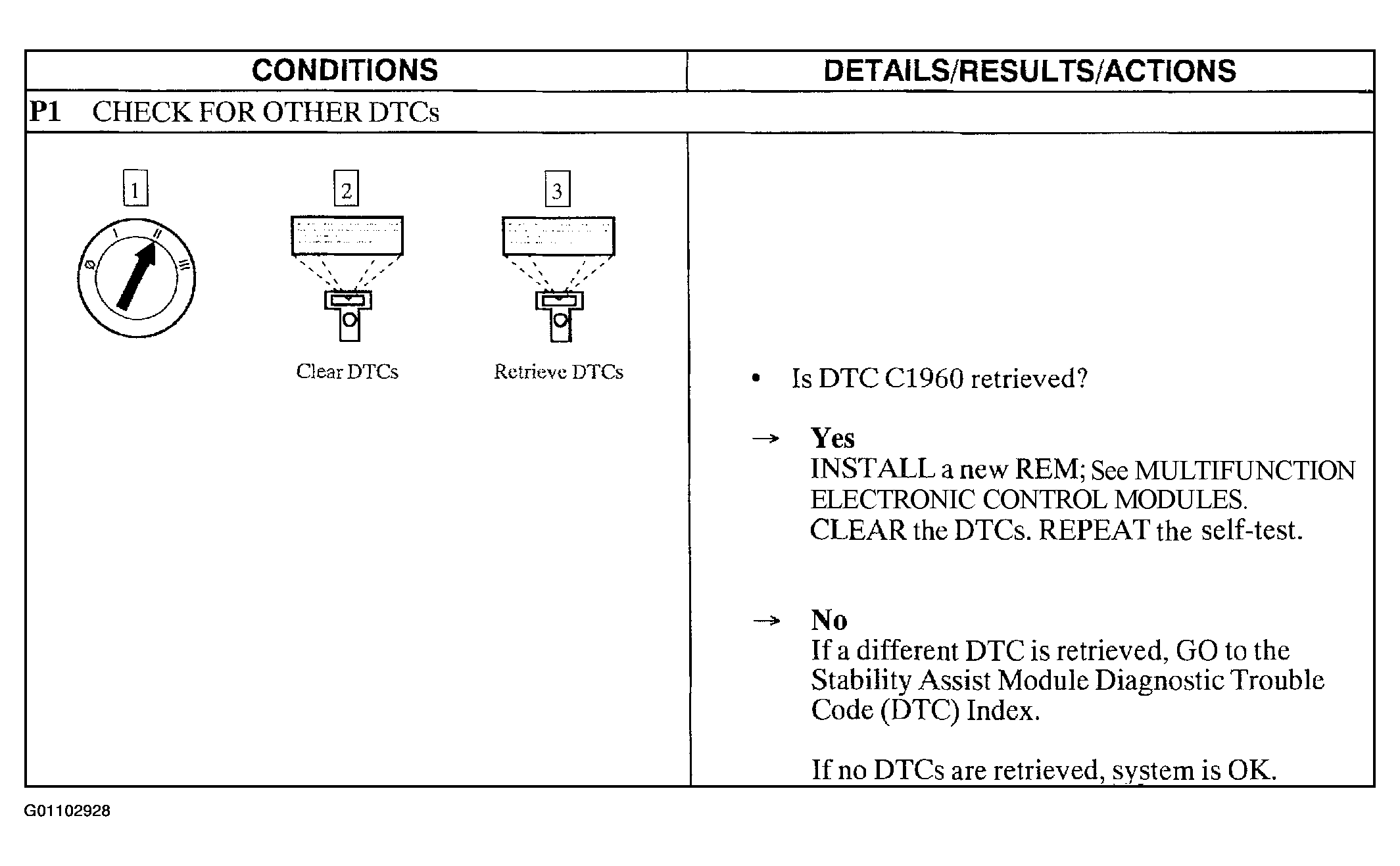

Fig 1: Pinpoint Test P: DTC C1960 - Driver Brake Apply Circuit Fault
G01102928Courtesy of FORD MOTOR CO.
