Pinpoint Test L: DTC C1287 - Booster Pedal Force Switch Circuit Failure

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

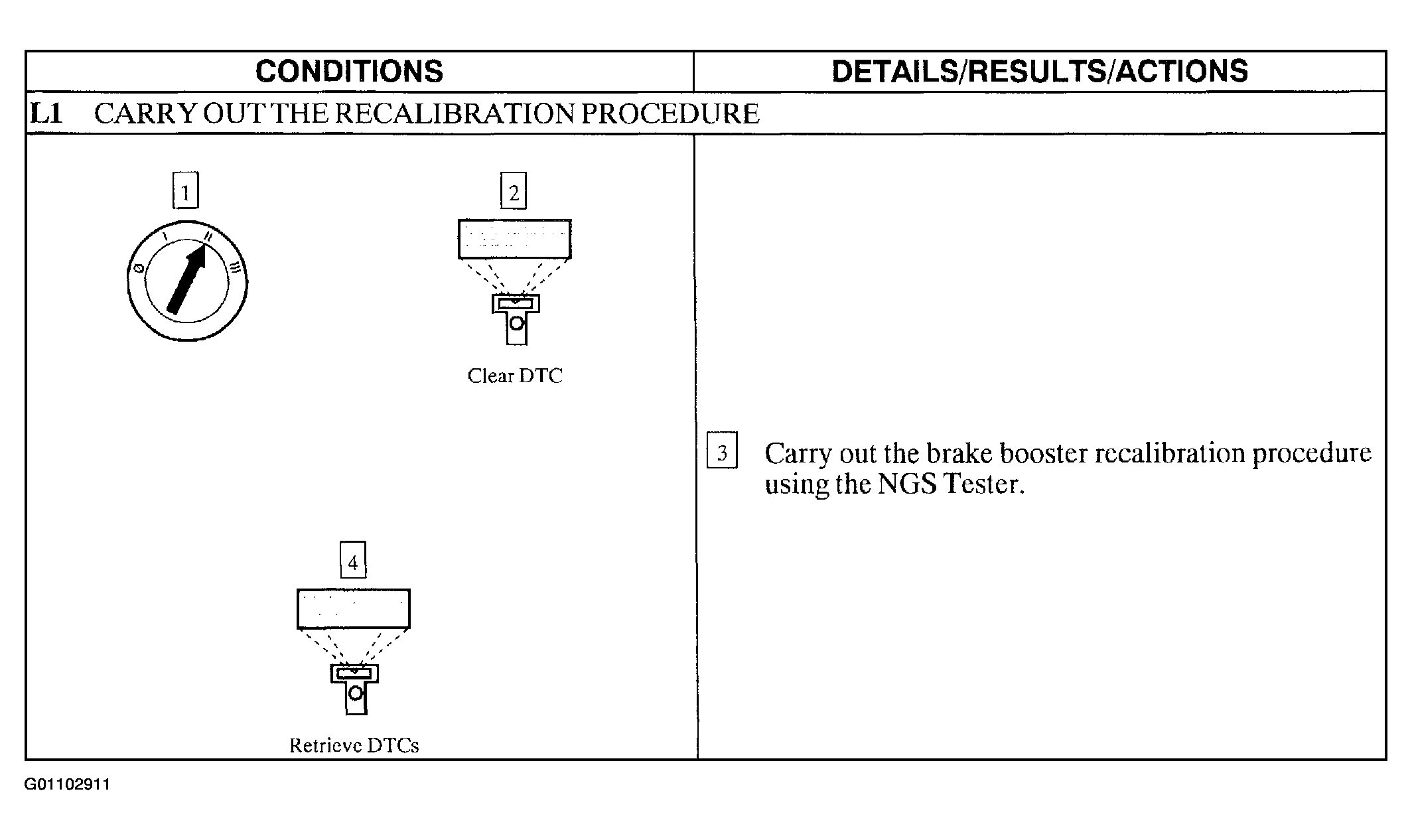

Fig 1: Pinpoint Test L: DTC C1287 - Booster Pedal Force Switch Circuit Failure (Step L1)

Courtesy of FORD MOTOR CO.

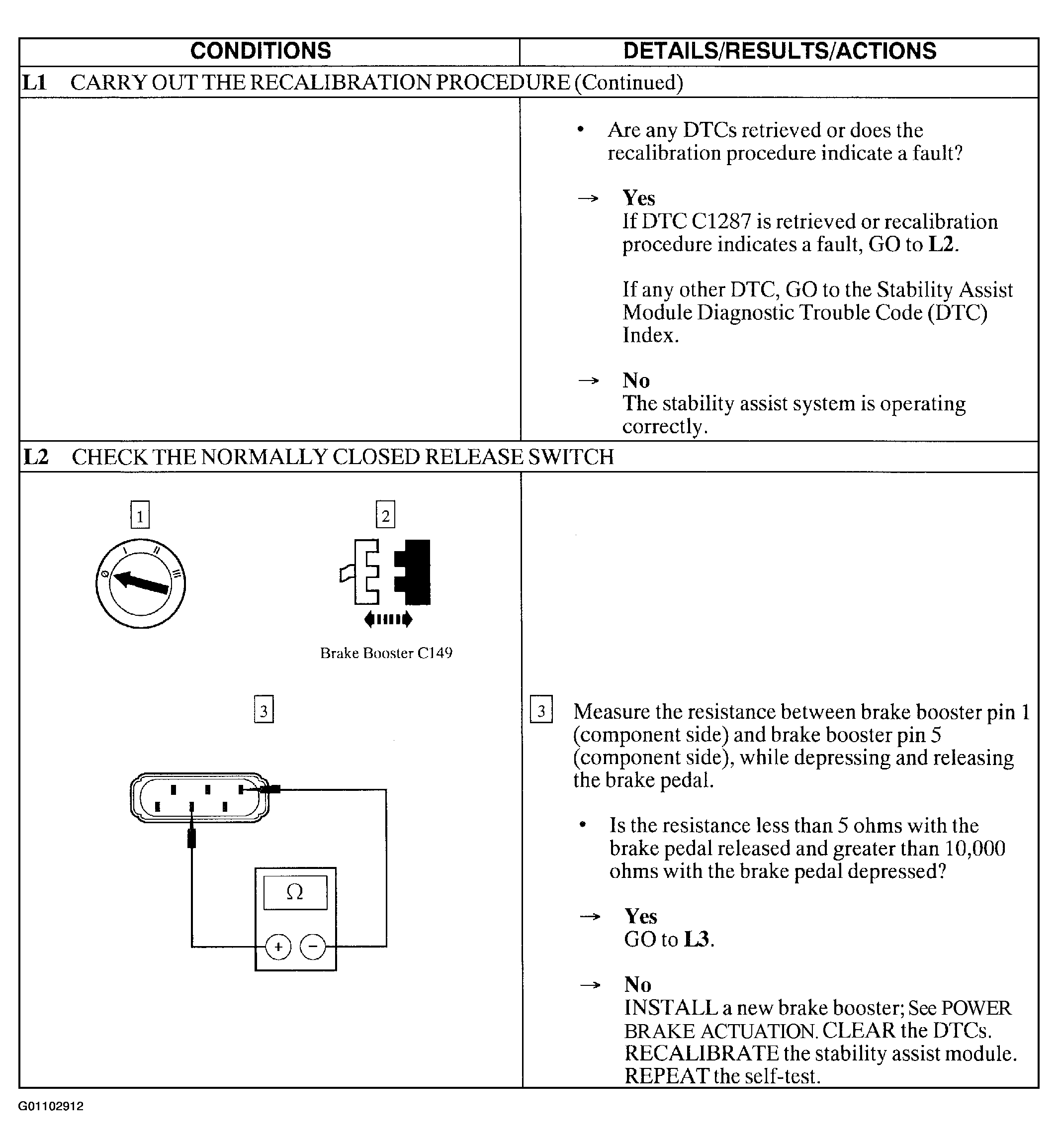

Fig 2: Pinpoint Test L: DTC C1287 - Booster Pedal Force Switch Circuit Failure (Step L1 Cont. & L2)

Courtesy of FORD MOTOR CO.

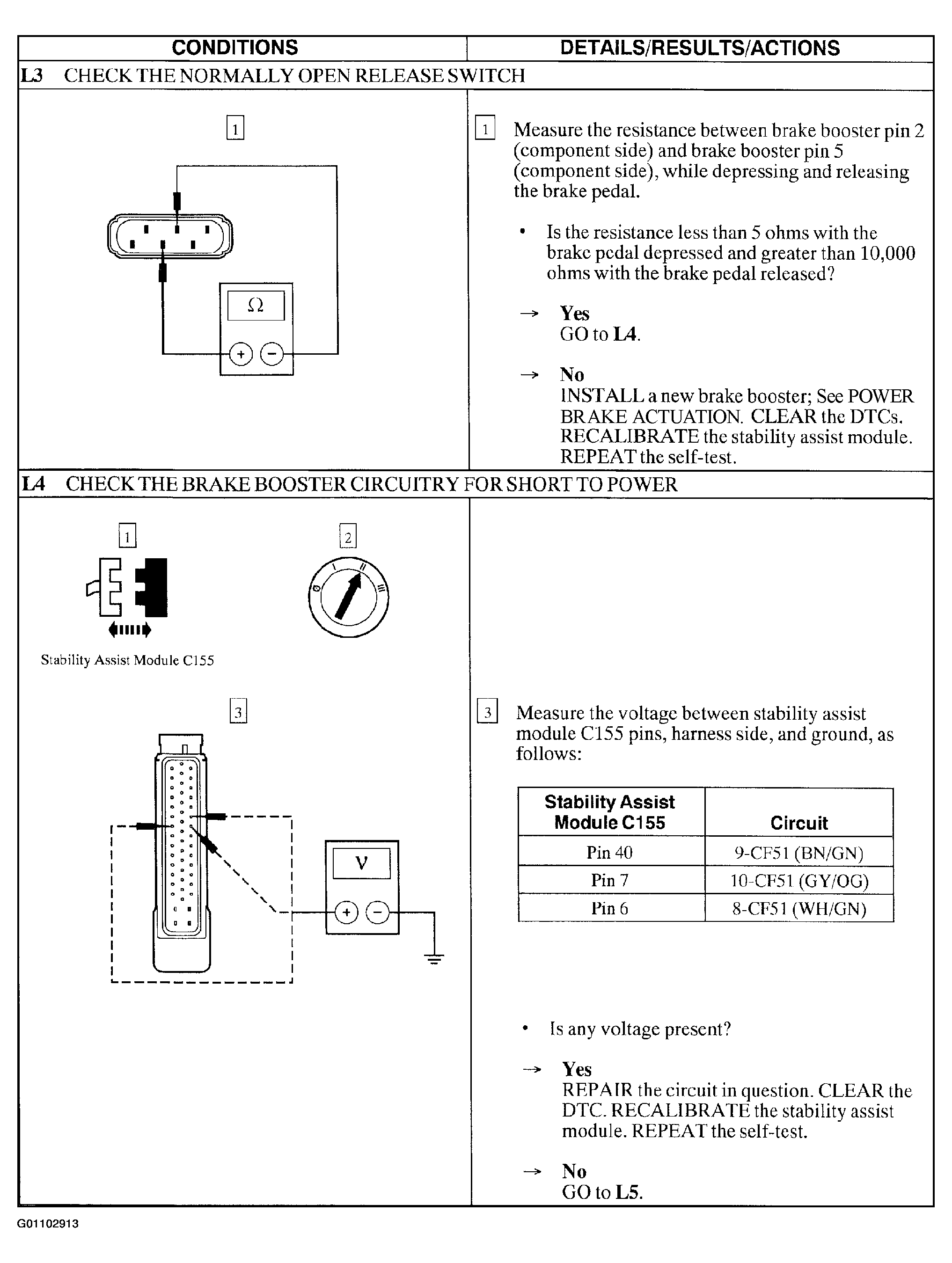

Fig 3: Pinpoint Test L: DTC C1287 - Booster Pedal Force Switch Circuit Failure (Steps L3 & L4)

Courtesy of FORD MOTOR CO.

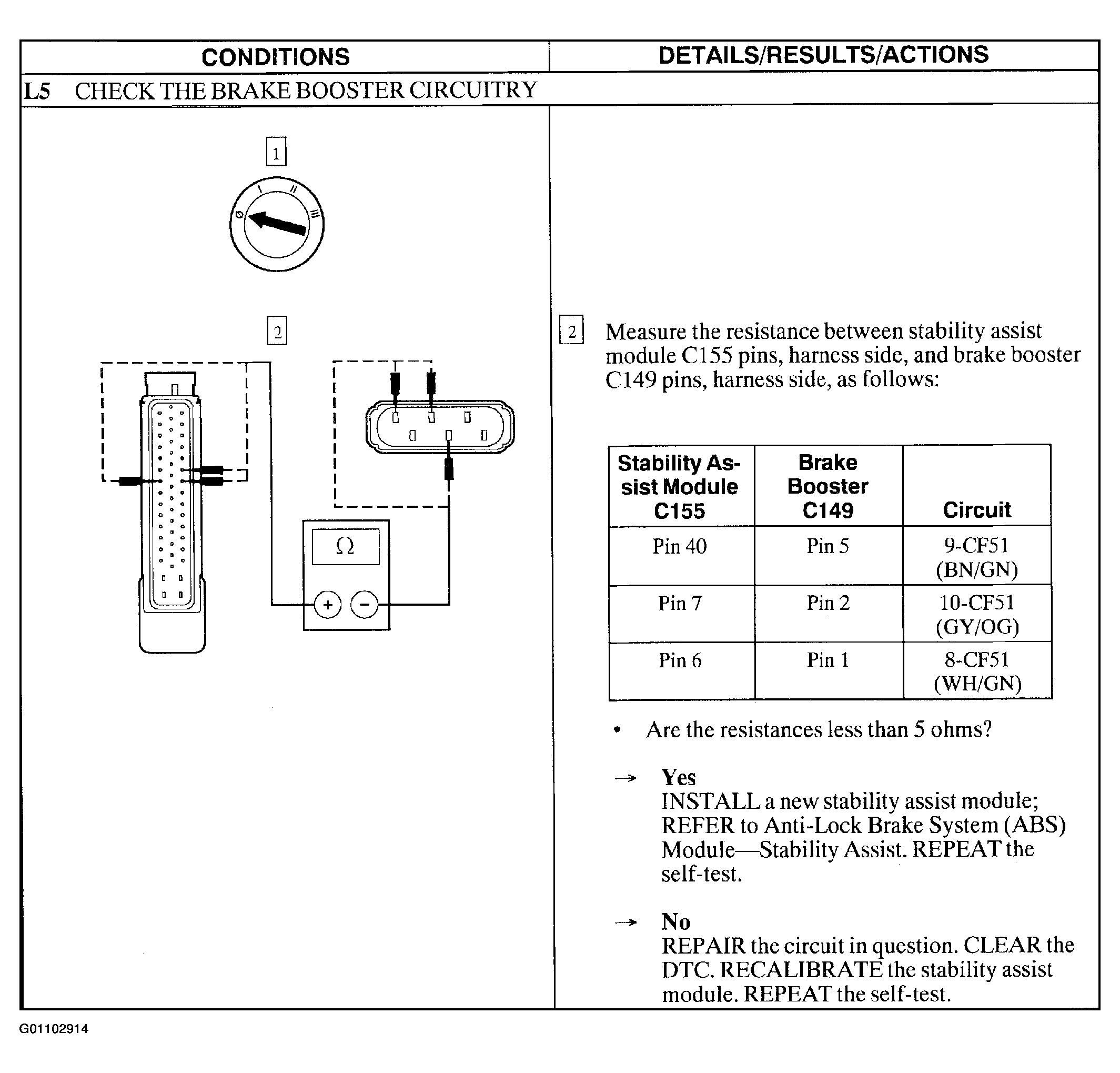

Fig 4: Pinpoint Test L: DTC C1287 - Booster Pedal Force Switch Circuit Failure (Step L5)

Courtesy of FORD MOTOR CO.
