Pinpoint Test K: DTC C1286 - Booster Mechanical Failure

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

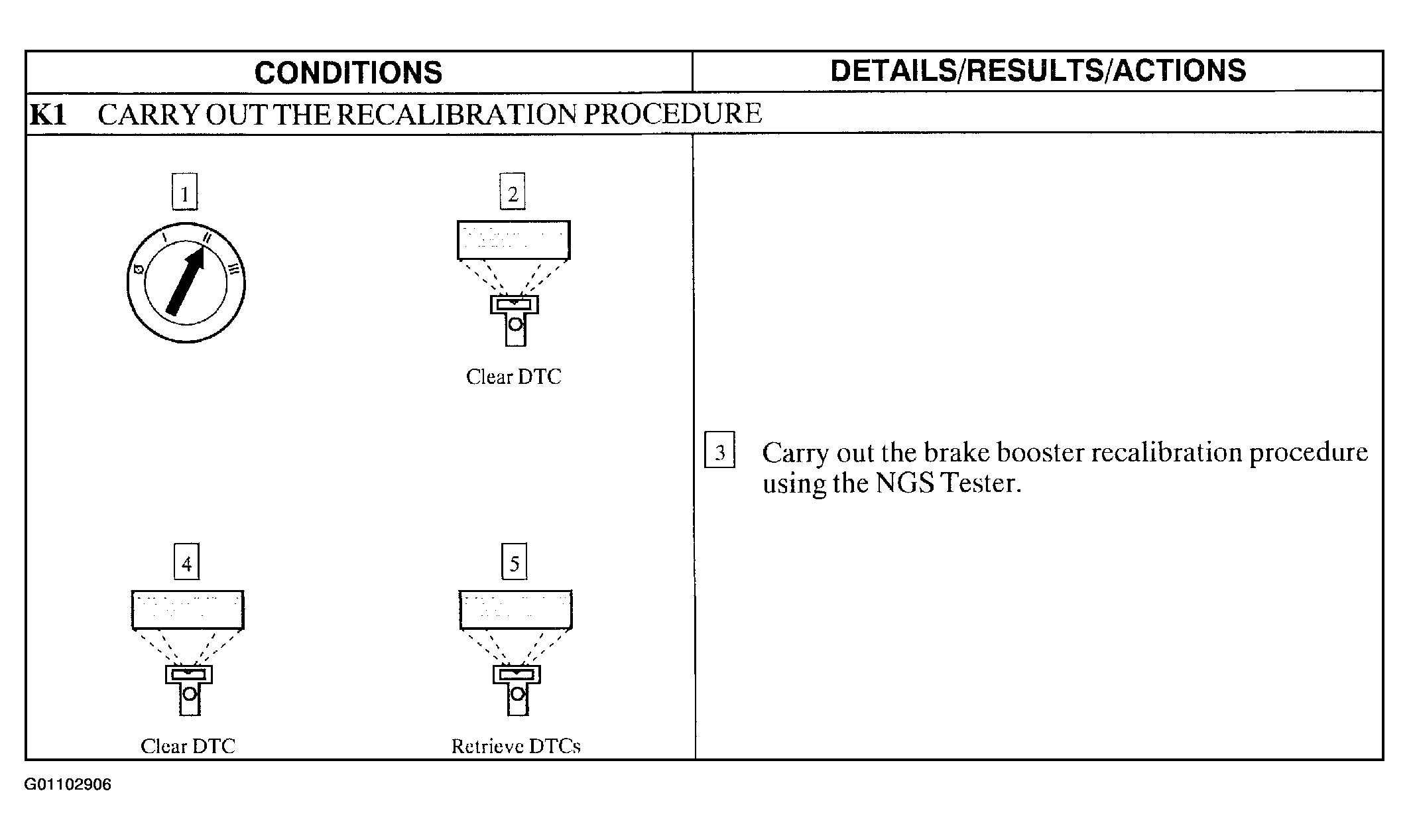

Fig 1: Pinpoint Test K: DTC C1286 - Booster Mechanical Failure (Step K1)

Courtesy of FORD MOTOR CO.

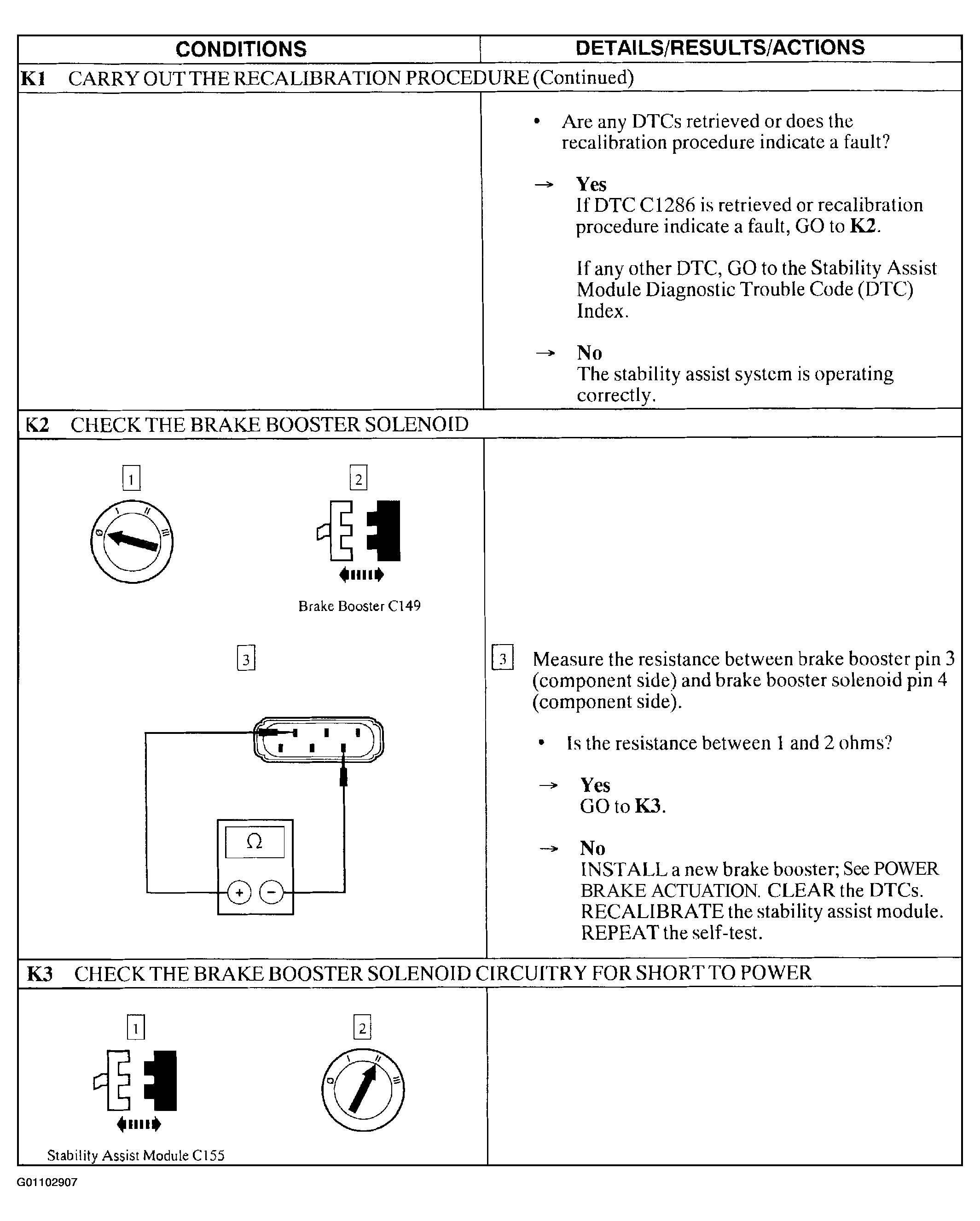

Fig 2: Pinpoint Test K: DTC C1286 - Booster Mechanical Failure (Steps K1 Cont. & K3)

Courtesy of FORD MOTOR CO.

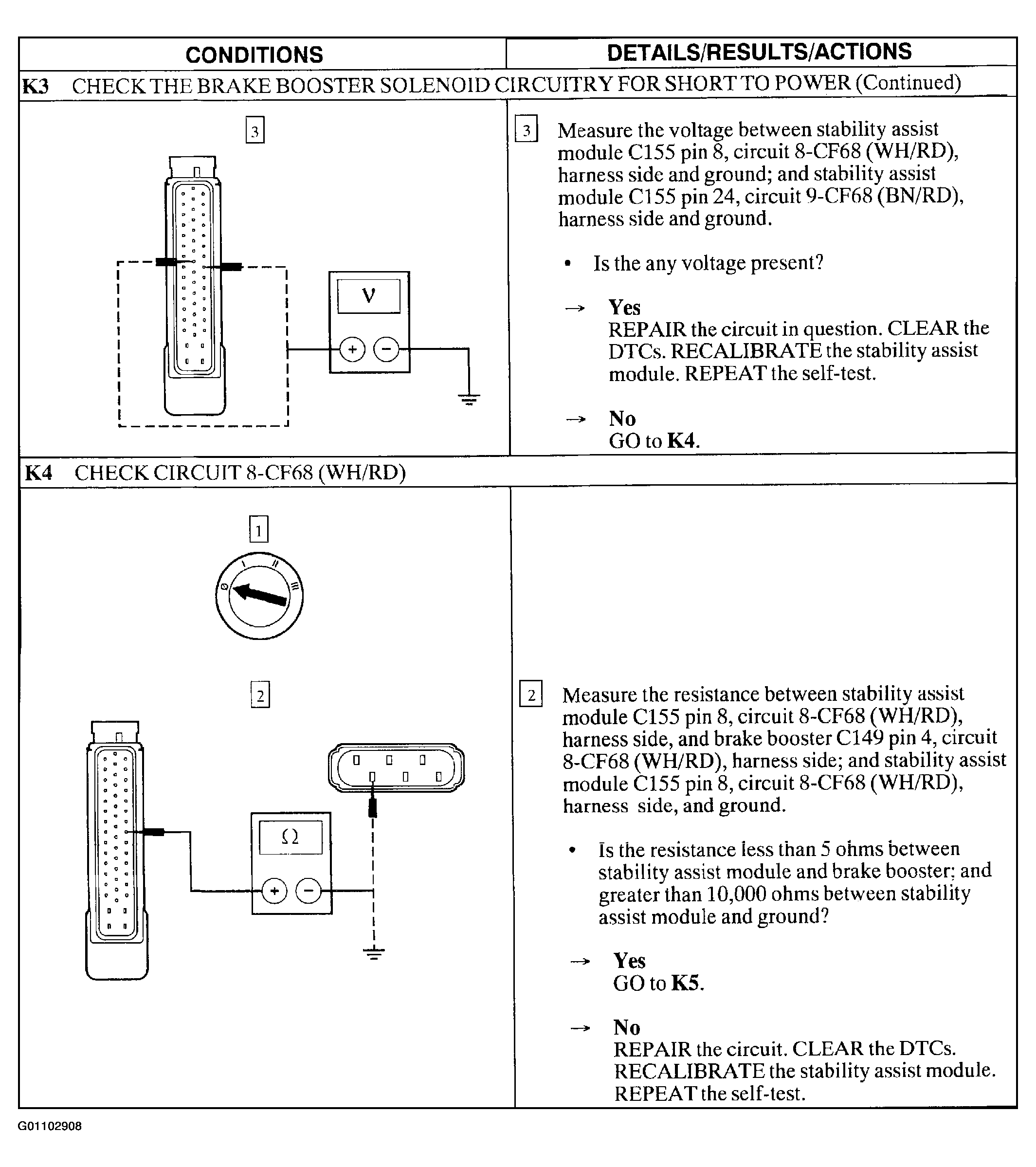

Fig 3: Pinpoint Test K: DTC C1286 - Booster Mechanical Failure (Steps K3 Cont. & K4)

Courtesy of FORD MOTOR CO.

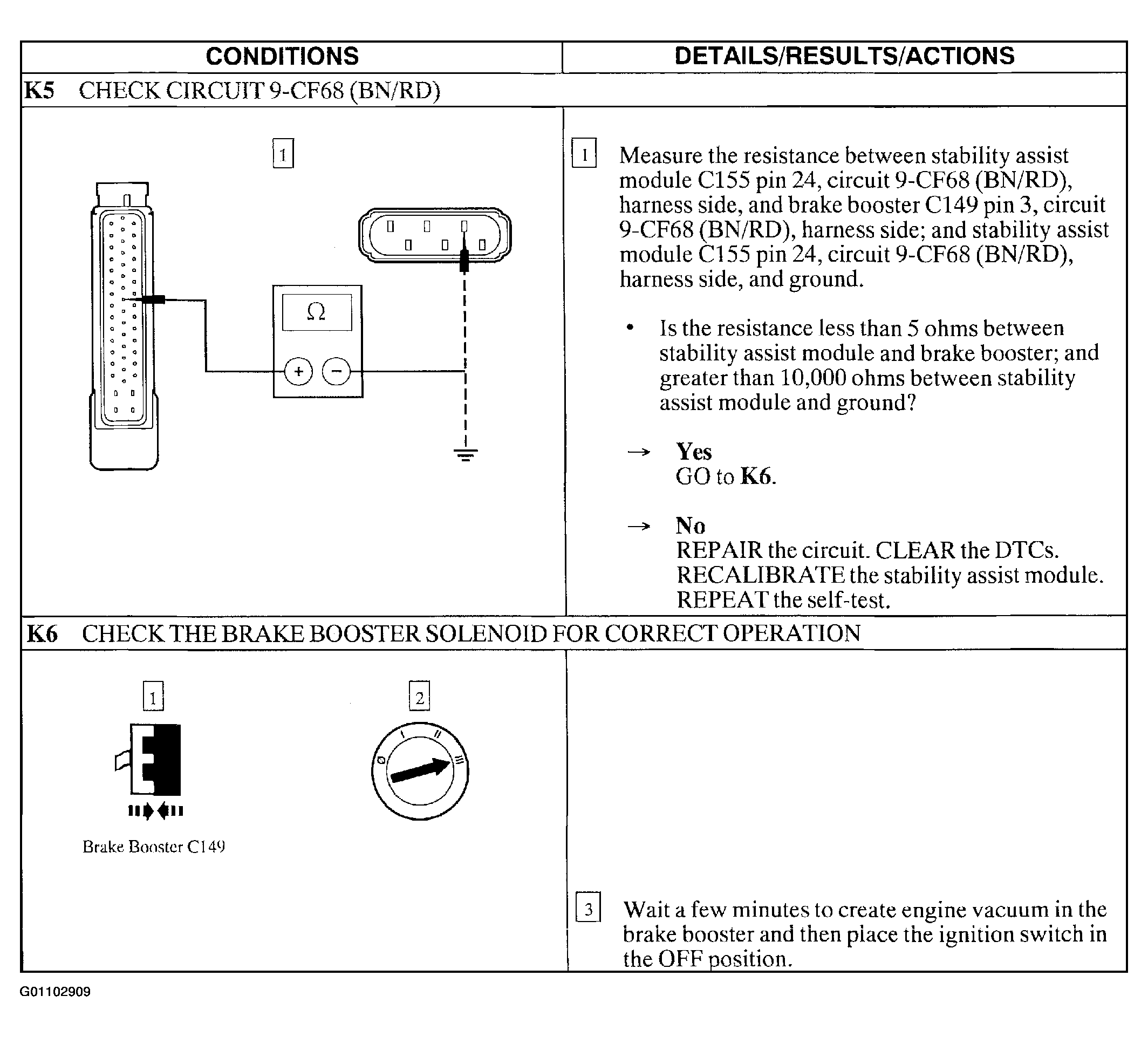

Fig 4: Pinpoint Test K: DTC C1286 - Booster Mechanical Failure (Steps K5 & K6)

Courtesy of FORD MOTOR CO.

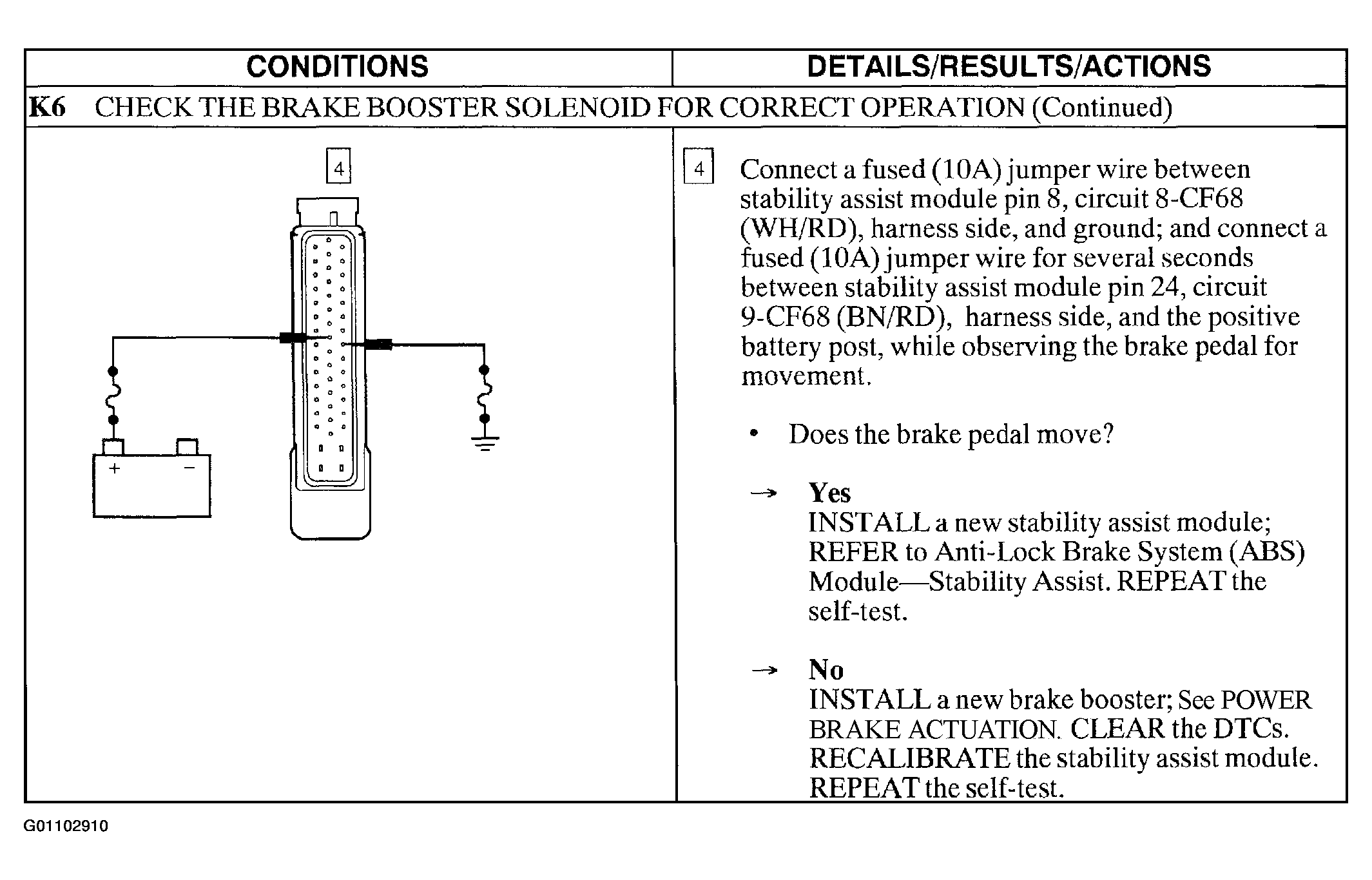

Fig 5: Pinpoint Test K: DTC C1286 - Booster Mechanical Failure (Step K6 Cont.)

Courtesy of FORD MOTOR CO.
