Pinpoint Test I: DTC C1281 - Lateral Accelerometer Circuit Failure, DTC C1282 - Lateral Accelerometer Signal Fault

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

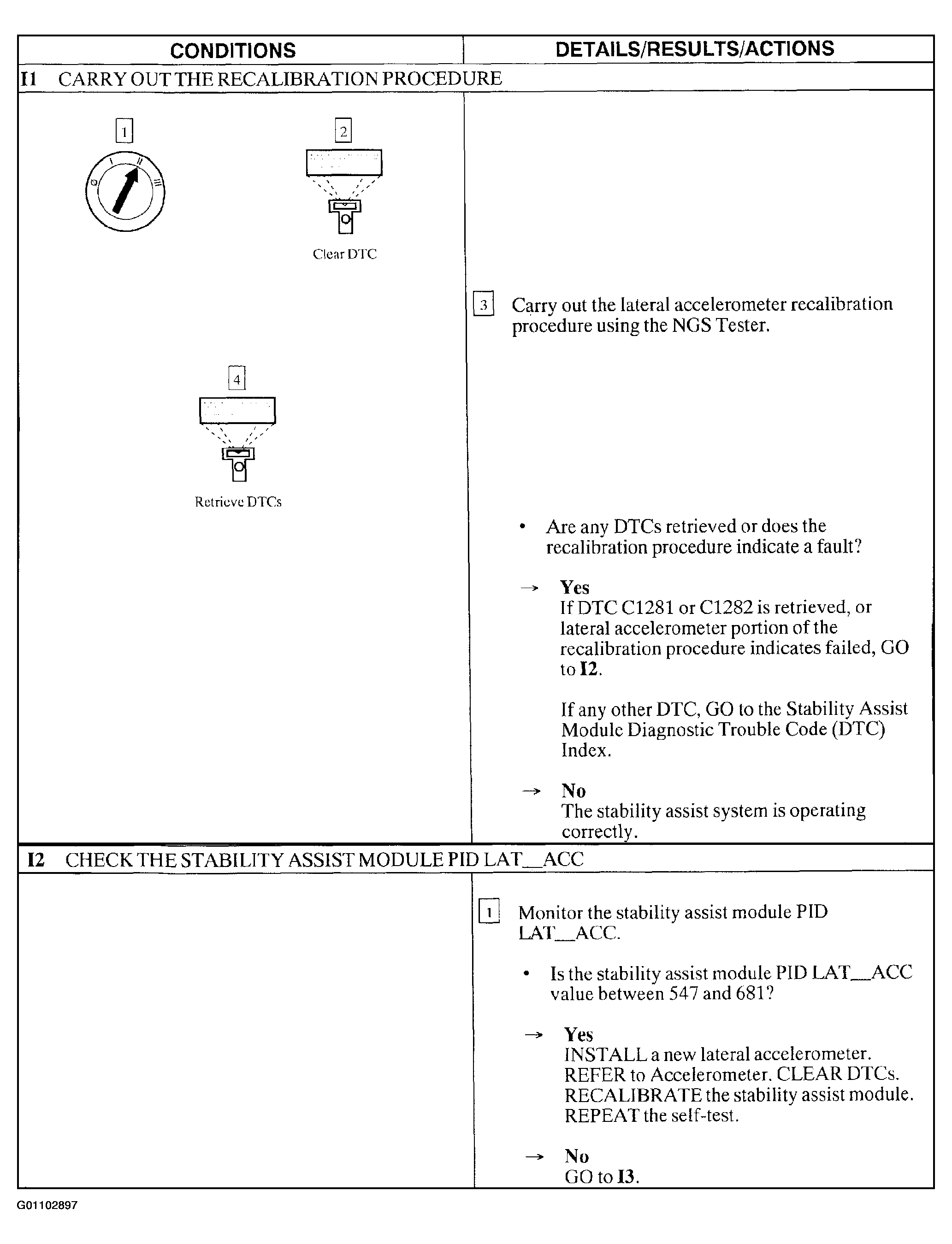

Fig 1: Pinpoint Test I: DTC C1281 - Lateral Accelerometer Circuit Failure, DTC C1282 - Lateral Accelerometer Signal Fault (Steps I1 & I2)

Courtesy of FORD MOTOR CO.

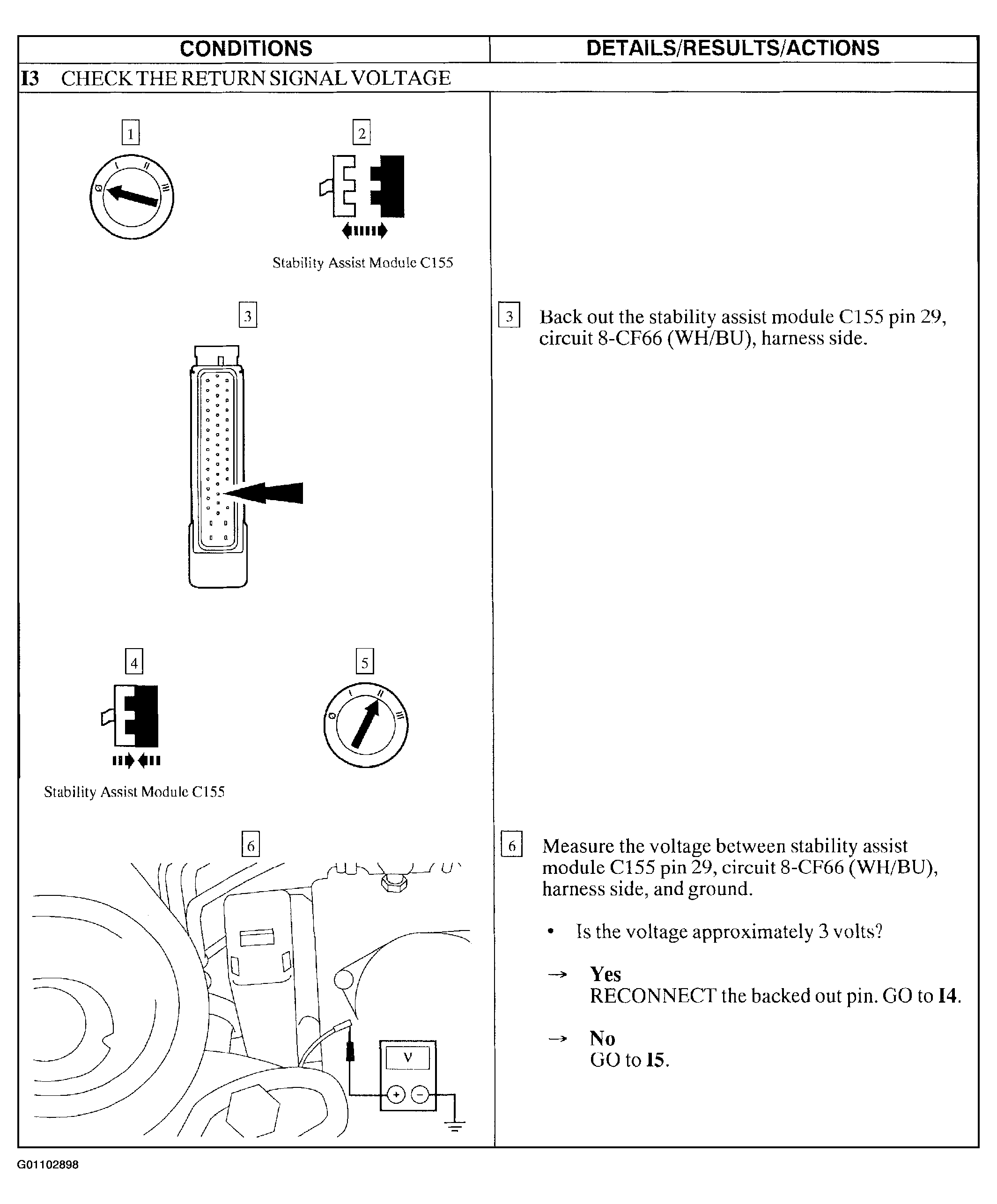

Fig 2: Pinpoint Test I: DTC C1281 - Lateral Accelerometer Circuit Failure, DTC C1282 - Lateral Accelerometer Signal Fault (Step I3)

Courtesy of FORD MOTOR CO.

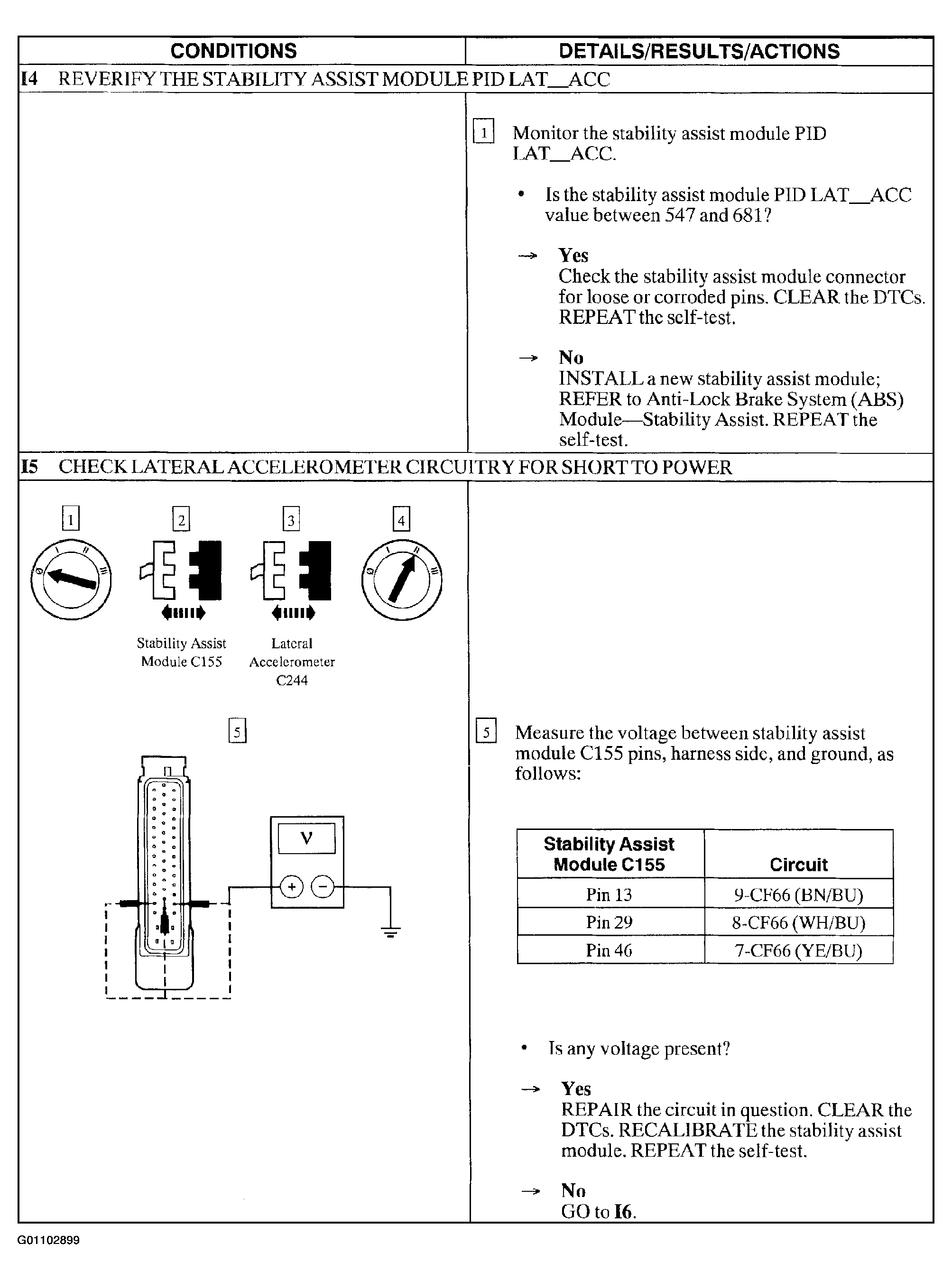

Fig 3: Pinpoint Test I: DTC C1281 - Lateral Accelerometer Circuit Failure, DTC C1282 - Lateral Accelerometer Signal Fault (Steps I4 & I5)

Courtesy of FORD MOTOR CO.

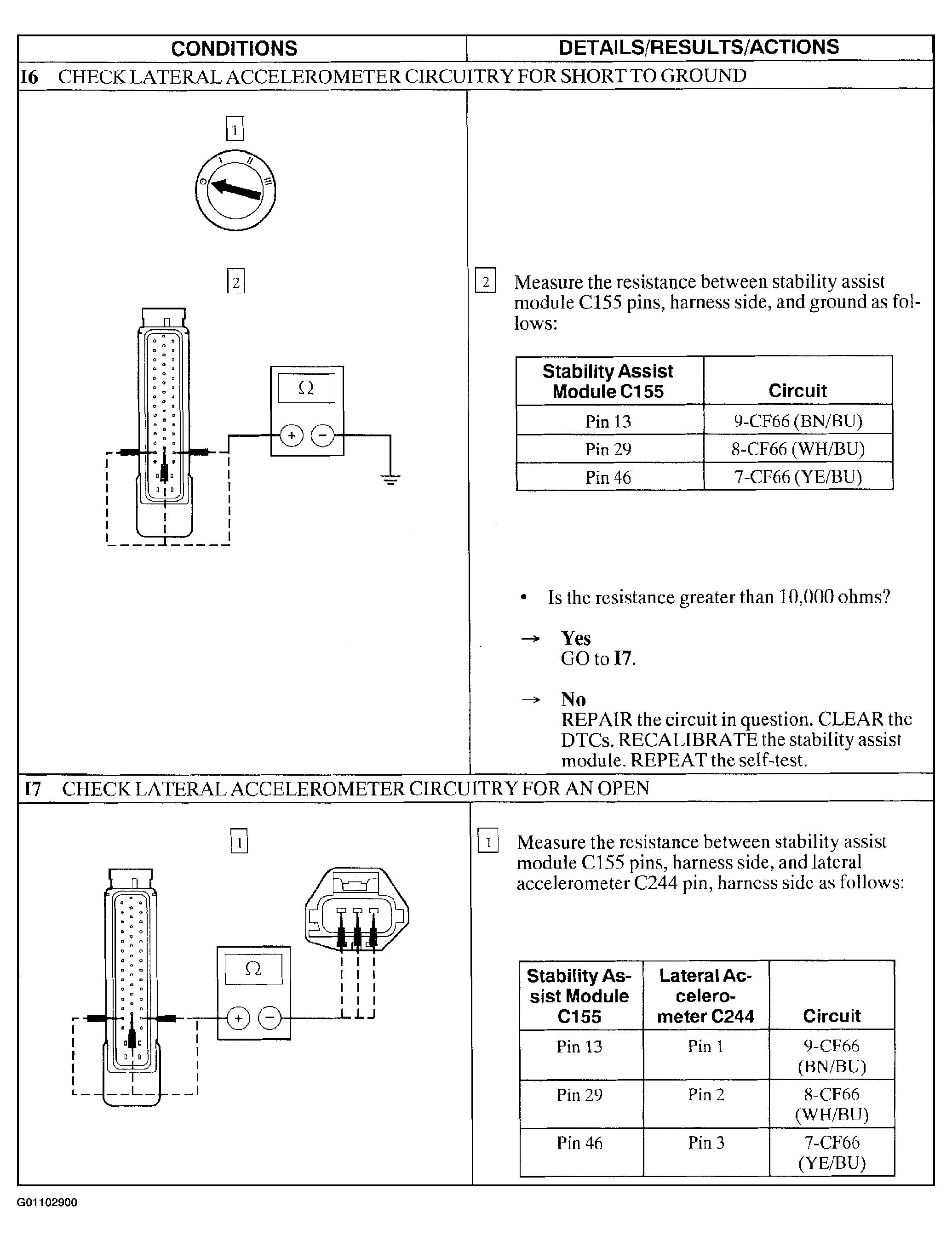

Fig 4: Pinpoint Test I: DTC C1281 - Lateral Accelerometer Circuit Failure, DTC C1282 - Lateral Accelerometer Signal Fault (Steps I6 & I7)

Courtesy of FORD MOTOR CO.

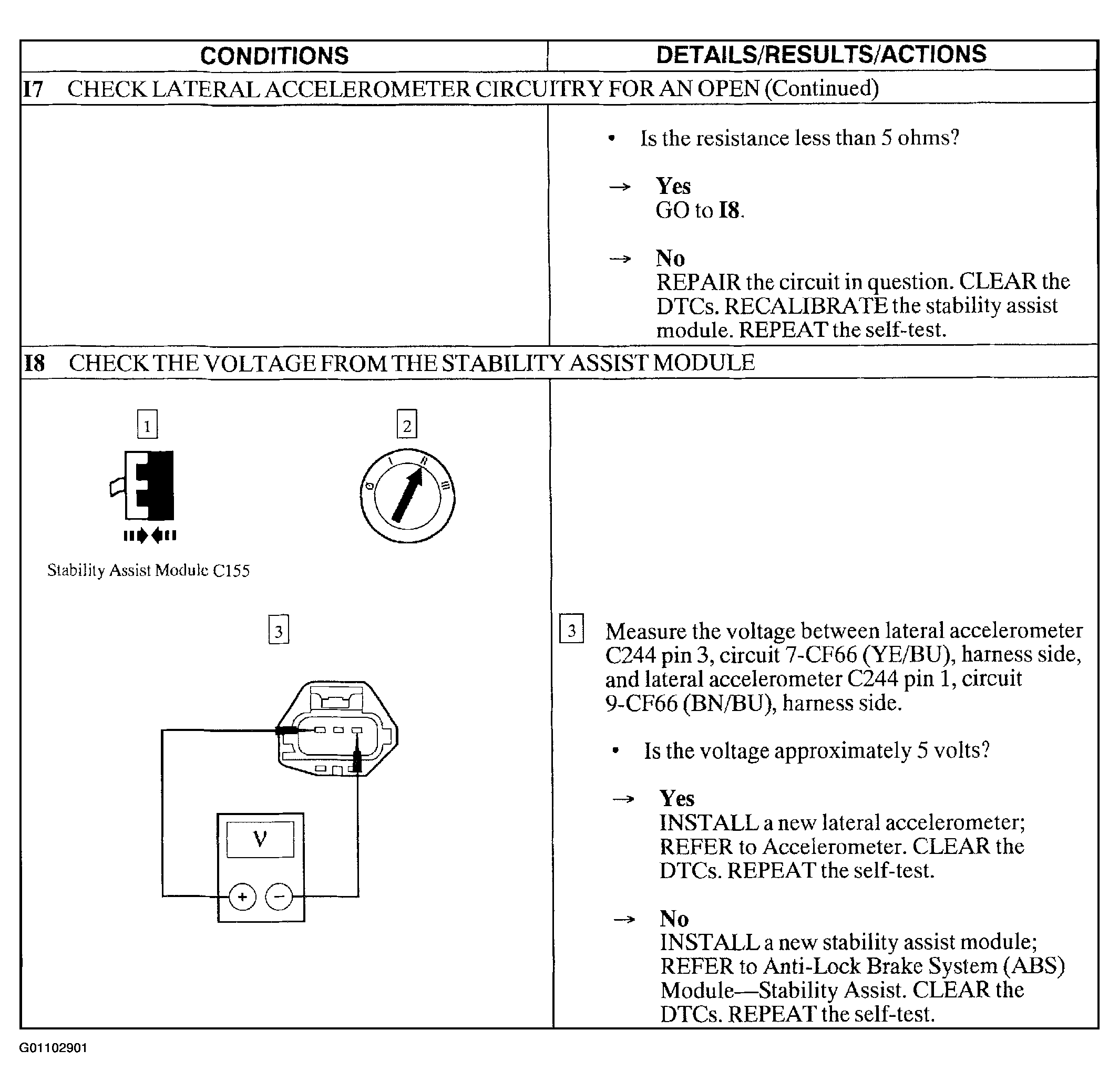

Fig 5: Pinpoint Test I: DTC C1281 - Lateral Accelerometer Circuit Failure, DTC C1282 - Lateral Accelerometer Signal Fault (Steps I7 Cont. & I8)

Courtesy of FORD MOTOR CO.
