Pinpoint Test H: DTC C1279 - Yaw Rate Sensor Circuit Failure, DTC C1280 - Yaw Rate Sensor Signal Fault

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

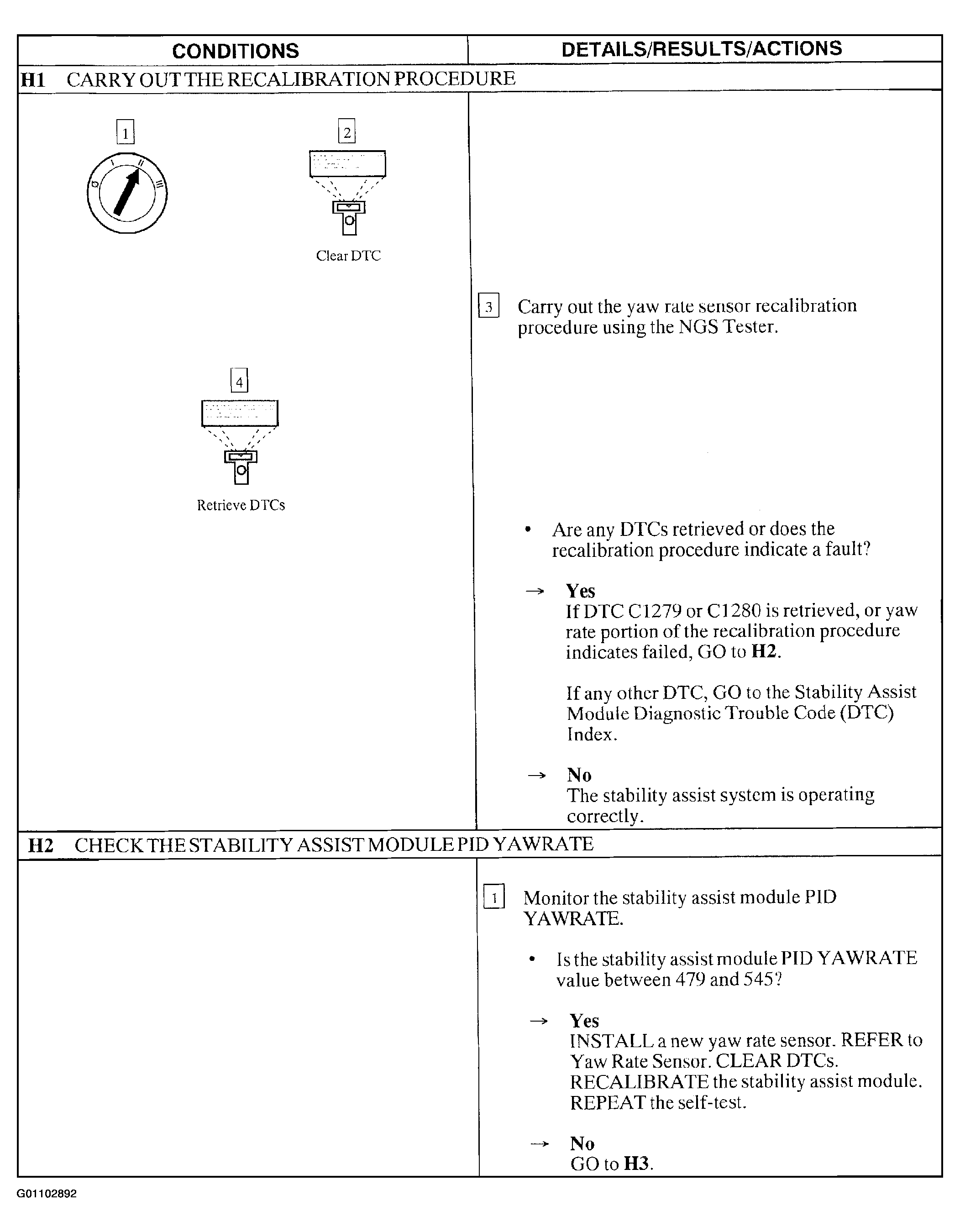

Fig 1: Pinpoint Test H: DTC C1279 - Yaw Rate Sensor Circuit Failure, DTC C1280 - Yaw Rate Sensor Signal Fault (Steps H1 & H2)

Courtesy of FORD MOTOR CO.

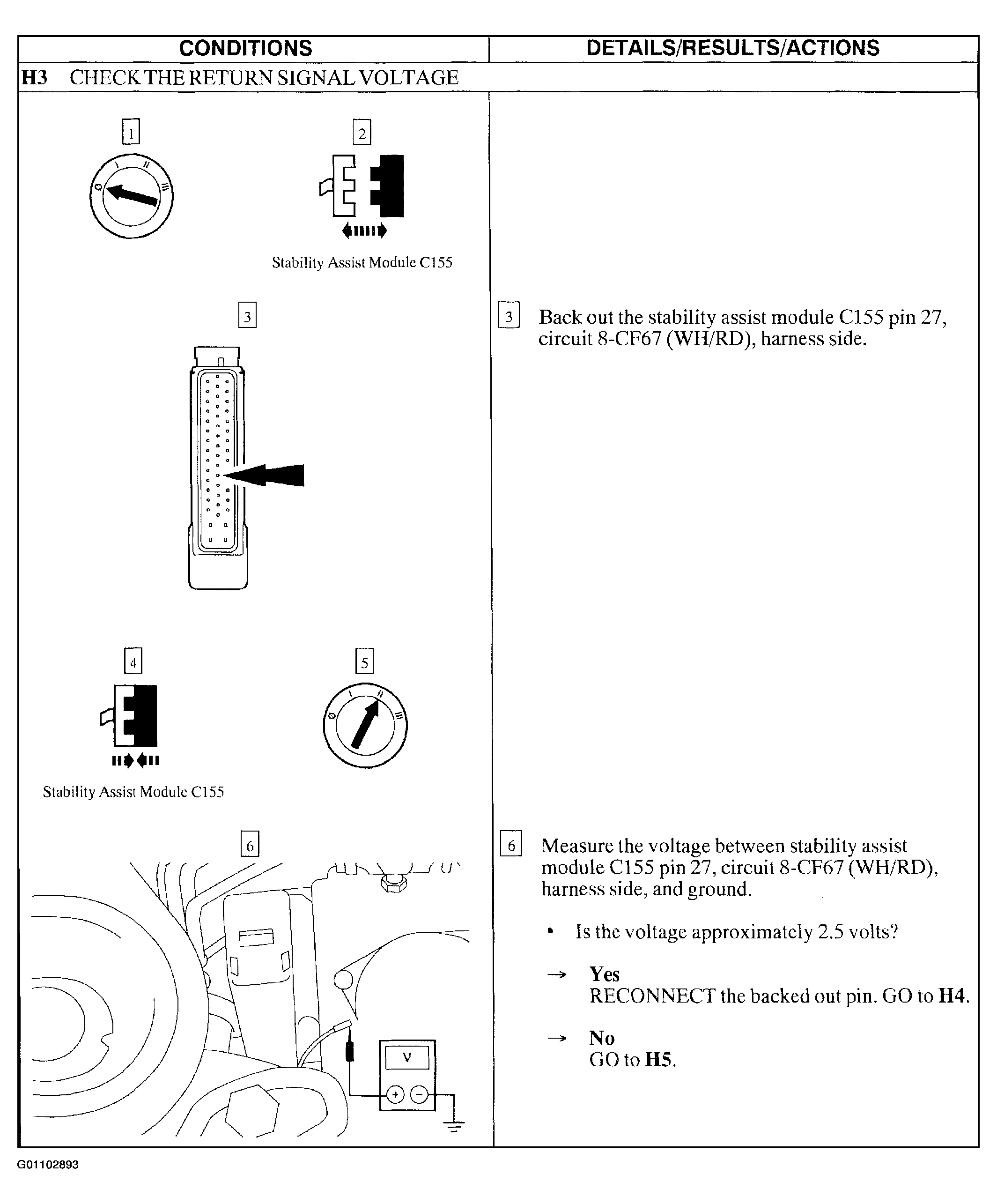

Fig 2: Pinpoint Test H: DTC C1279 - Yaw Rate Sensor Circuit Failure, DTC C1280 - Yaw Rate Sensor Signal Fault (Step H3)

Courtesy of FORD MOTOR CO.

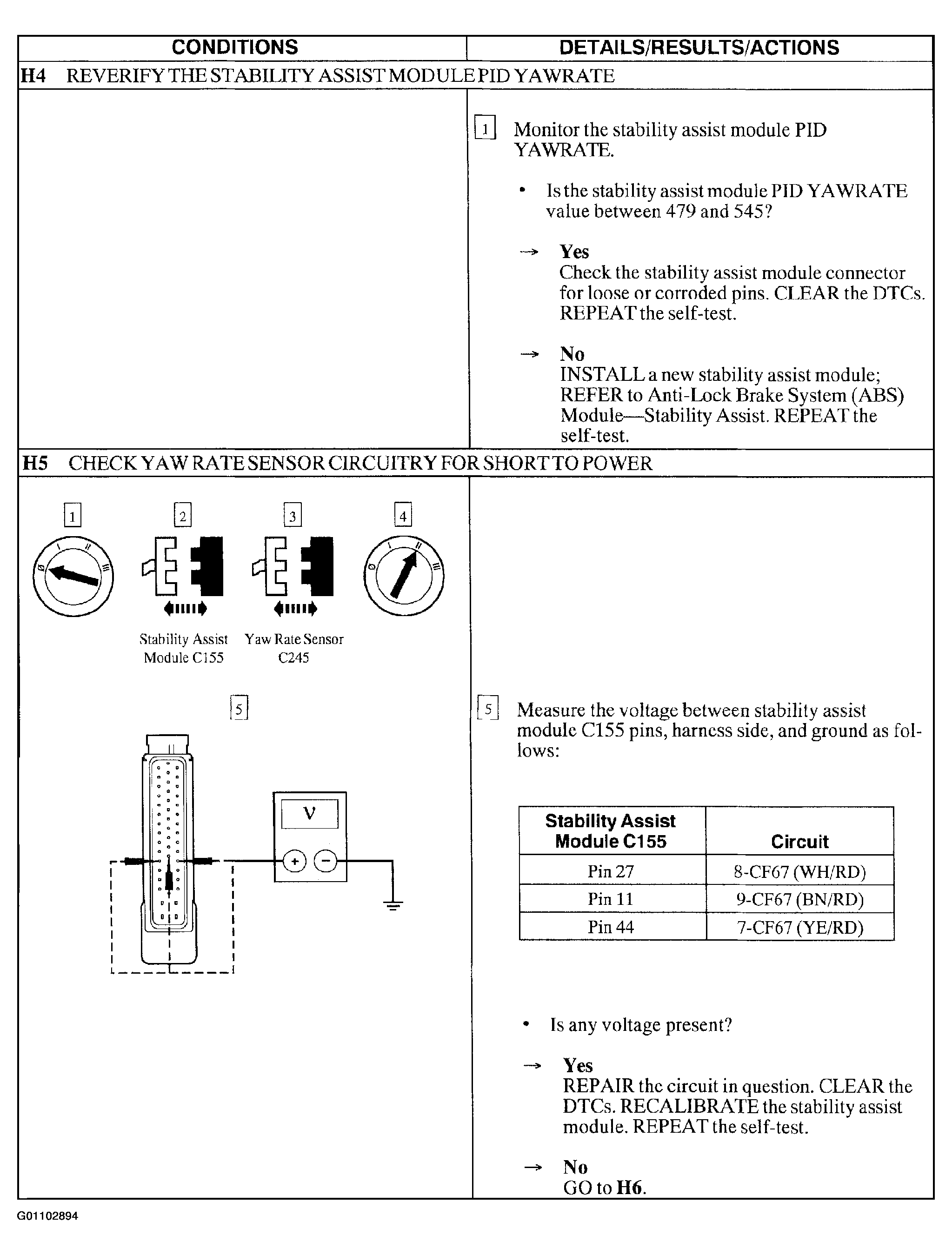

Fig 3: Pinpoint Test H: DTC C1279 - Yaw Rate Sensor Circuit Failure, DTC C1280 - Yaw Rate Sensor Signal Fault (Steps 4 & H5)

Courtesy of FORD MOTOR CO.

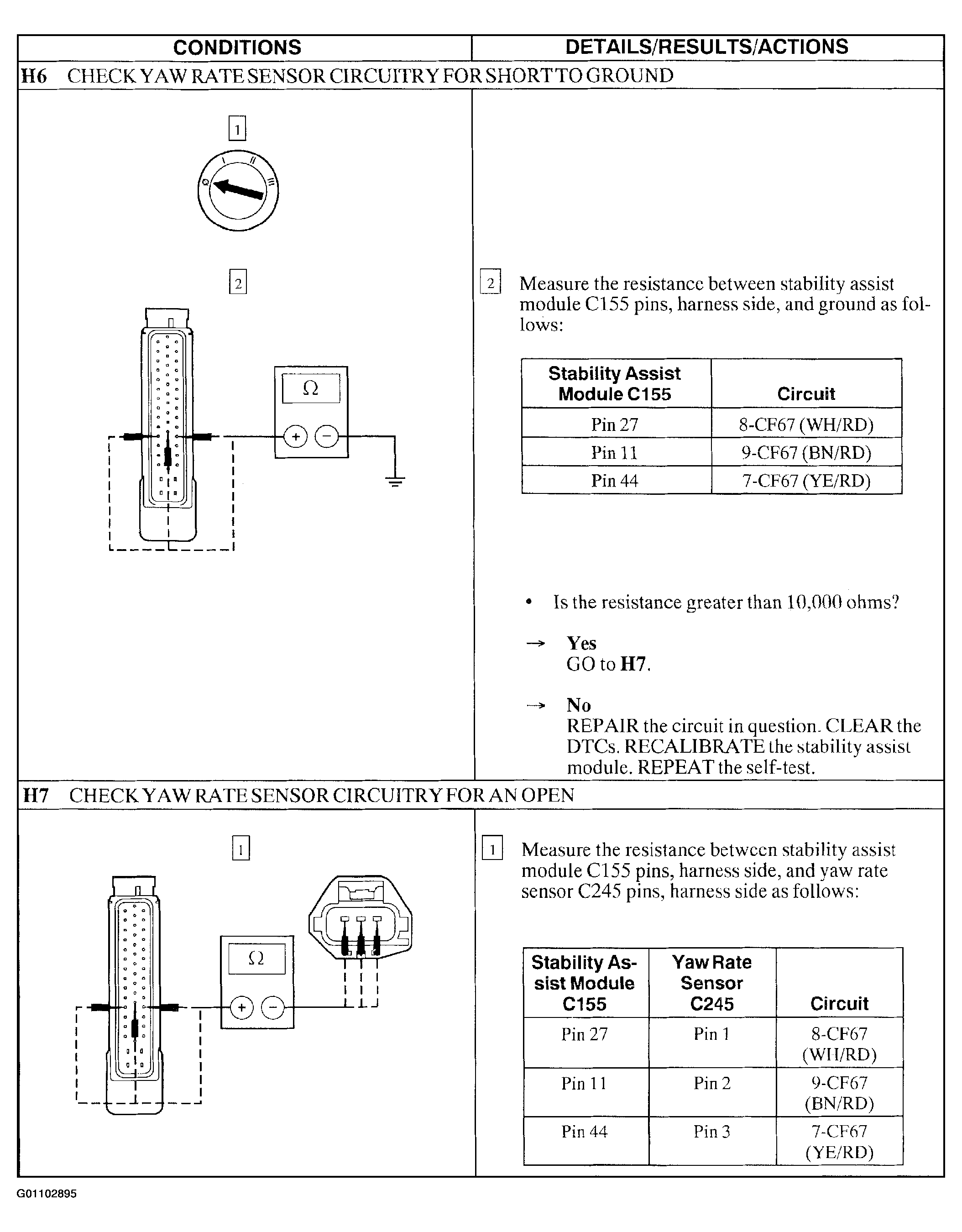

Fig 4: Pinpoint Test H: DTC C1279 - Yaw Rate Sensor Circuit Failure, DTC C1280 - Yaw Rate Sensor Signal Fault (Steps H6 & H7)

Courtesy of FORD MOTOR CO.

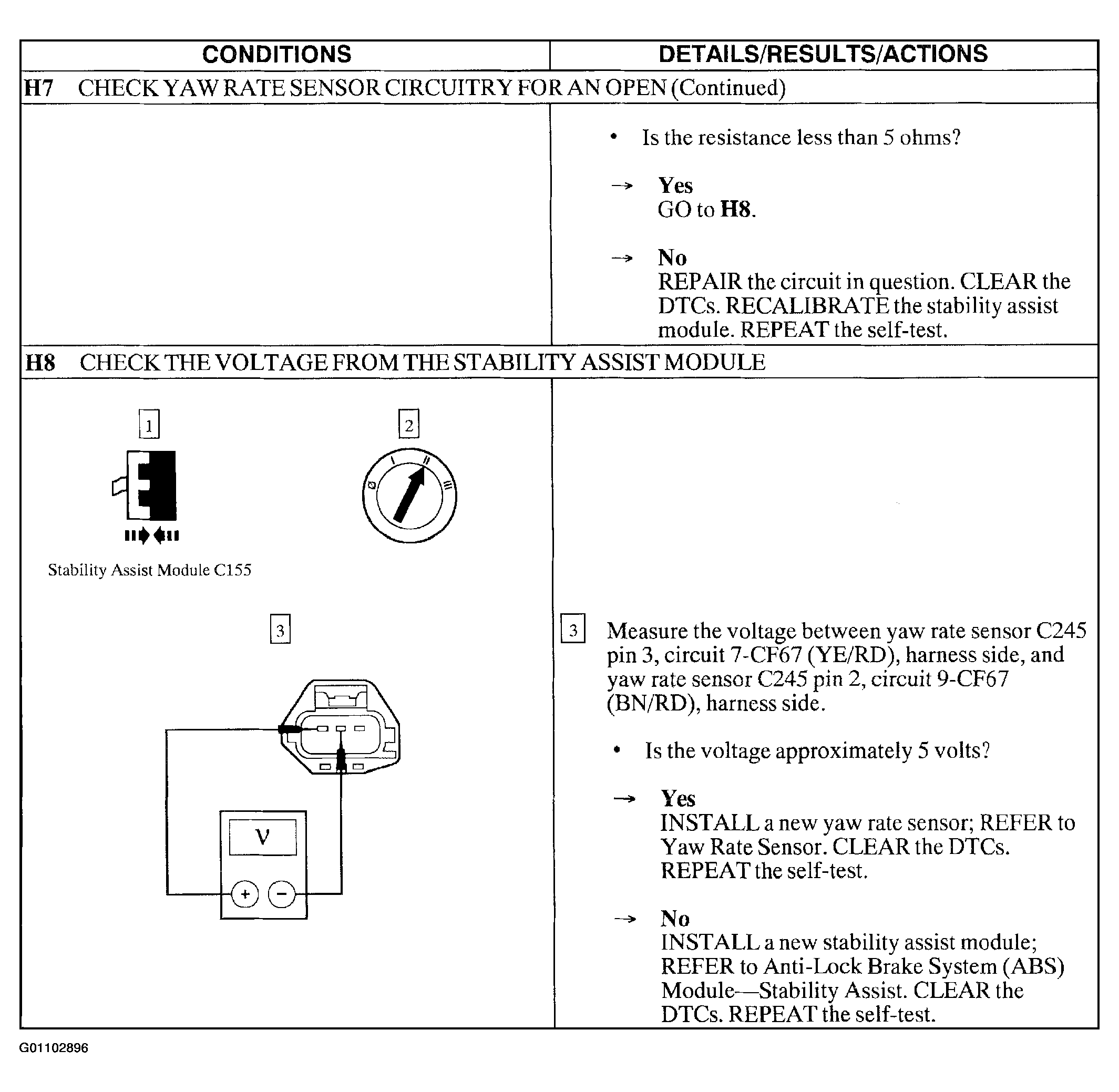

Fig 5: Pinpoint Test H: DTC C1279 - Yaw Rate Sensor Circuit Failure, DTC C1280 - Yaw Rate Sensor Signal Fault (Steps H7 Cont. & H8)

Courtesy of FORD MOTOR CO.
