Pinpoint Test G: DTC C1277 - Steering Wheel Angle 1 And 2 Circuit Failure, DTC C1278 - Steering Wheel Angle 1 And 2 Circuit Faulted

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

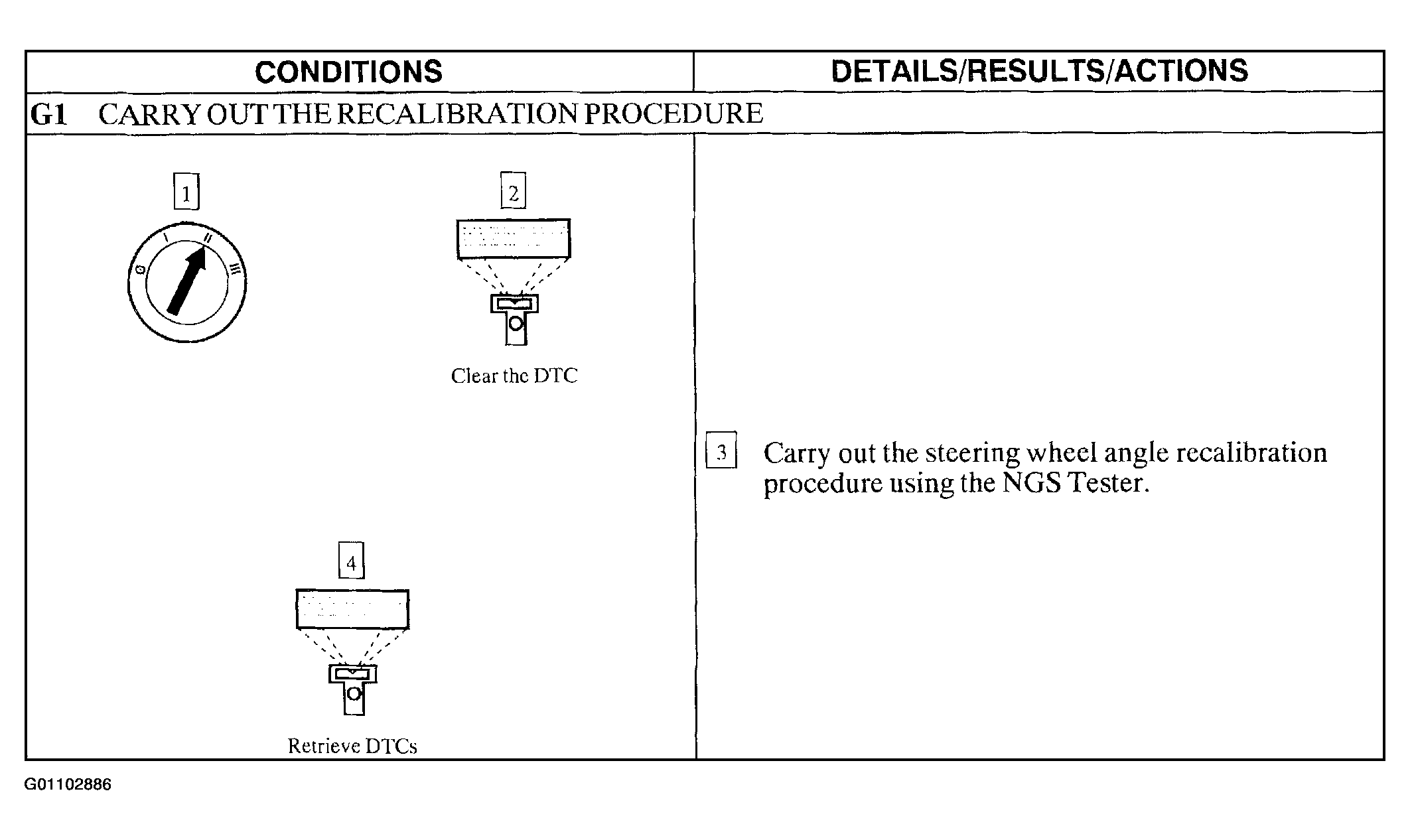

Fig 1: Pinpoint Test G: DTC C1277 - Steering Wheel Angle 1 And 2 Circuit Failure, DTC C1278 - Steering Wheel Angle 1 And 2 Circuit Faulted (Step G1)

Courtesy of FORD MOTOR CO.

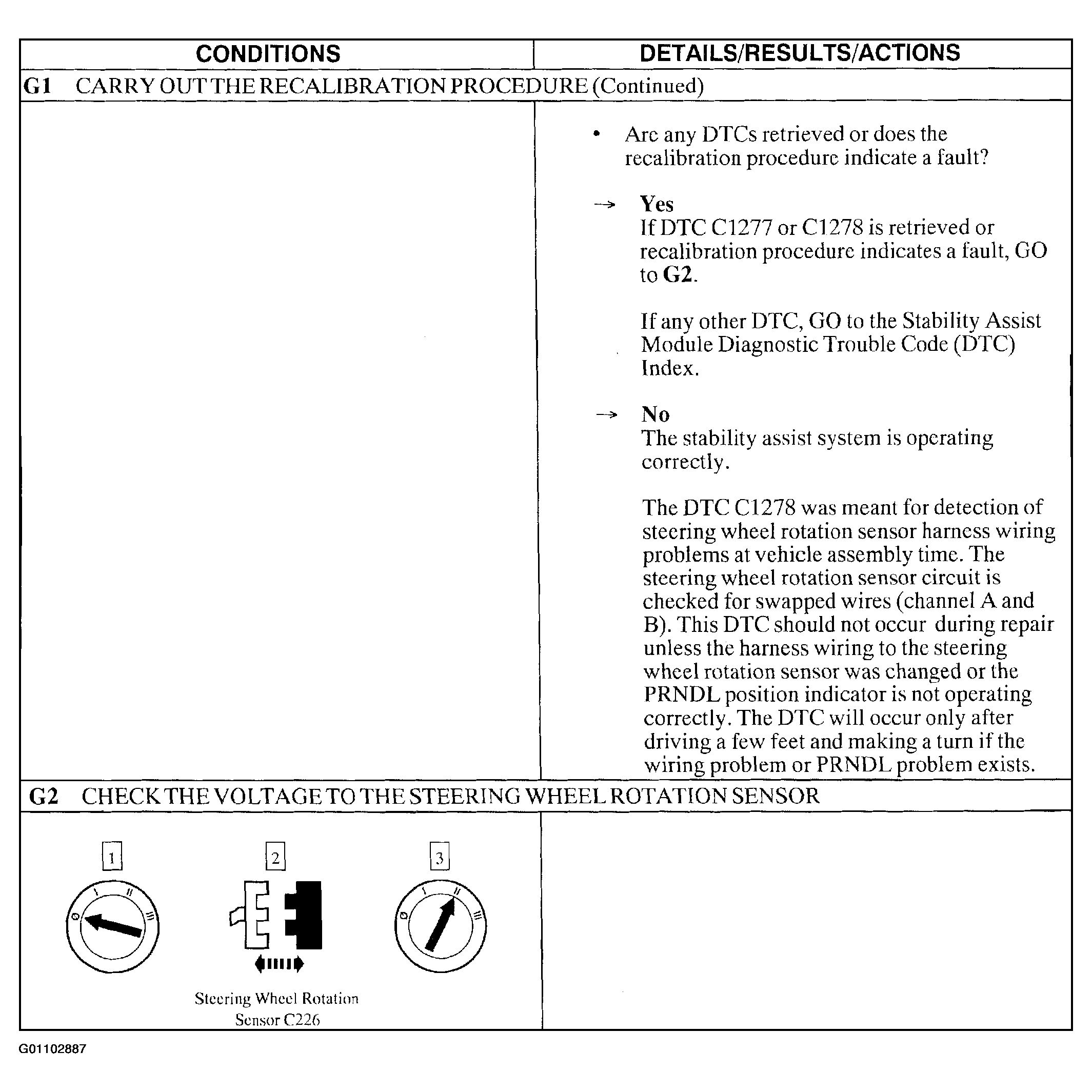

Fig 2: Pinpoint Test G: DTC C1277 - Steering Wheel Angle 1 And 2 Circuit Failure, DTC C1278 - Steering Wheel Angle 1 And 2 Circuit Faulted (Steps G1 Cont. & G2)

Courtesy of FORD MOTOR CO.

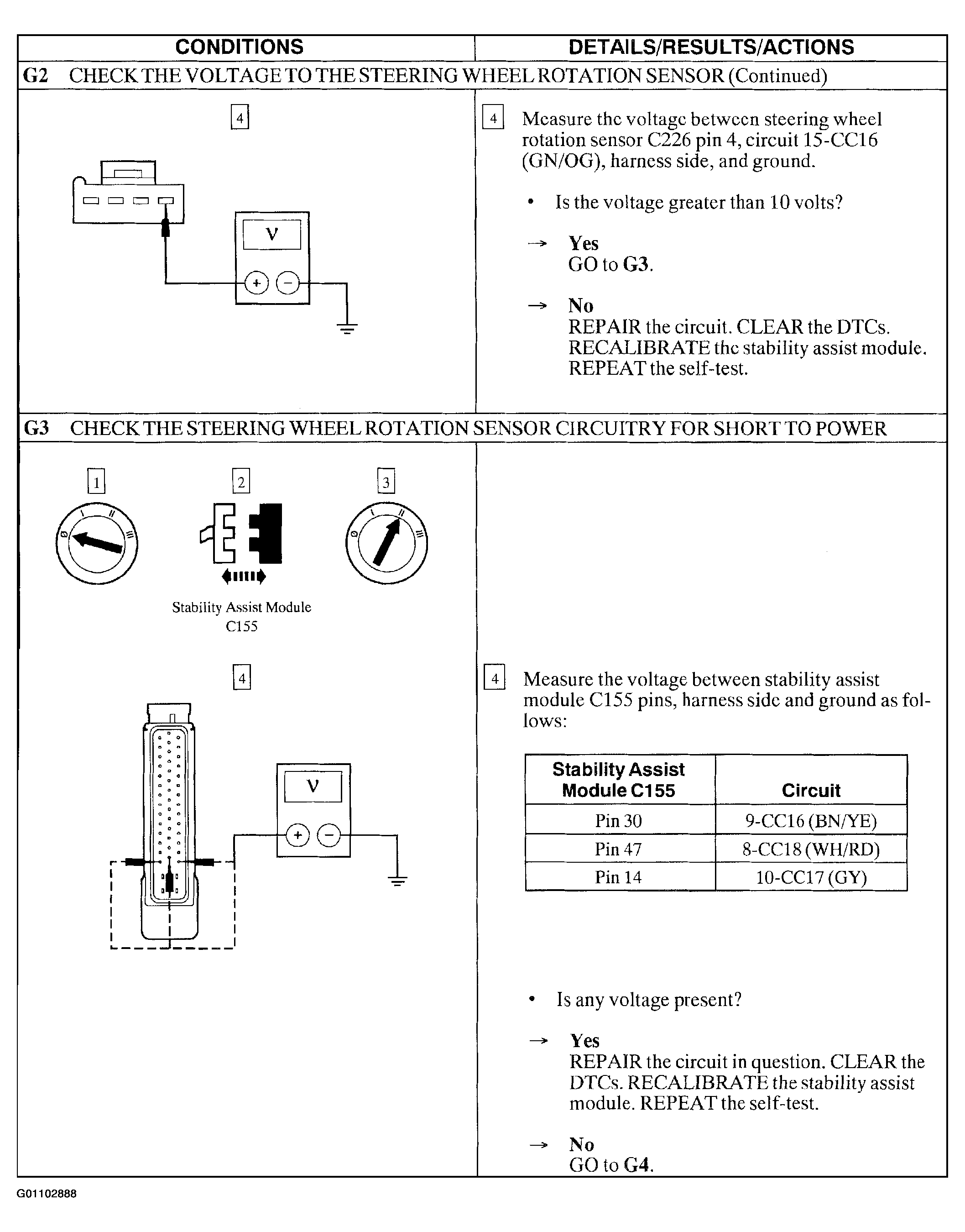

Fig 3: Pinpoint Test G: DTC C1277 - Steering Wheel Angle 1 And 2 Circuit Failure, DTC C1278 - Steering Wheel Angle 1 And 2 Circuit Faulted (Steps G2 Cont. & G3)

Courtesy of FORD MOTOR CO.

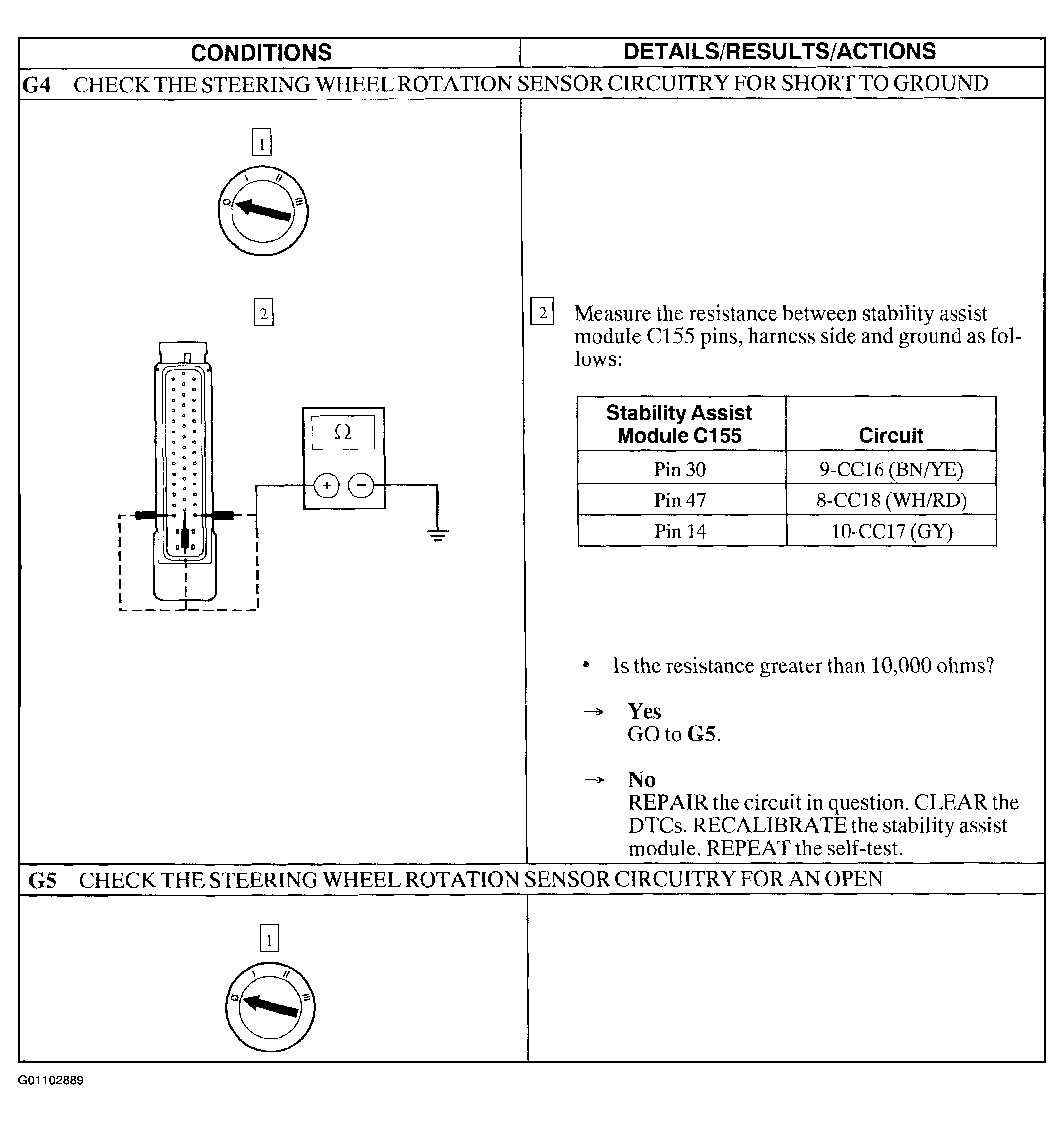

Fig 4: Pinpoint Test G: DTC C1277 - Steering Wheel Angle 1 And 2 Circuit Failure, DTC C1278 - Steering Wheel Angle 1 And 2 Circuit Faulted (Steps G4 & G5)

Courtesy of FORD MOTOR CO.

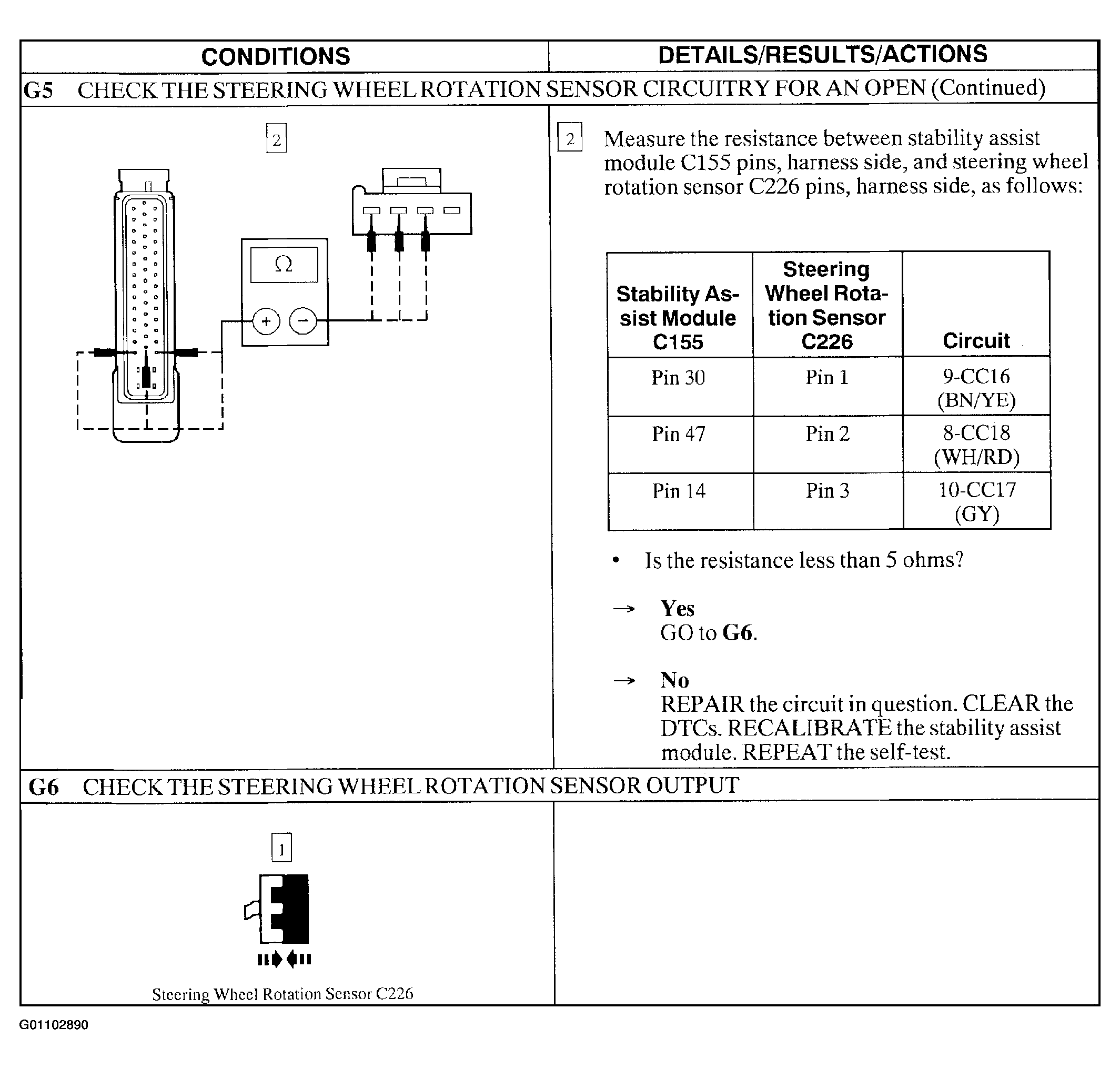

Fig 5: Pinpoint Test G: DTC C1277 - Steering Wheel Angle 1 And 2 Circuit Failure, DTC C1278 - Steering Wheel Angle 1 And 2 Circuit Faulted (Steps G5 Cont. & G6)

Courtesy of FORD MOTOR CO.

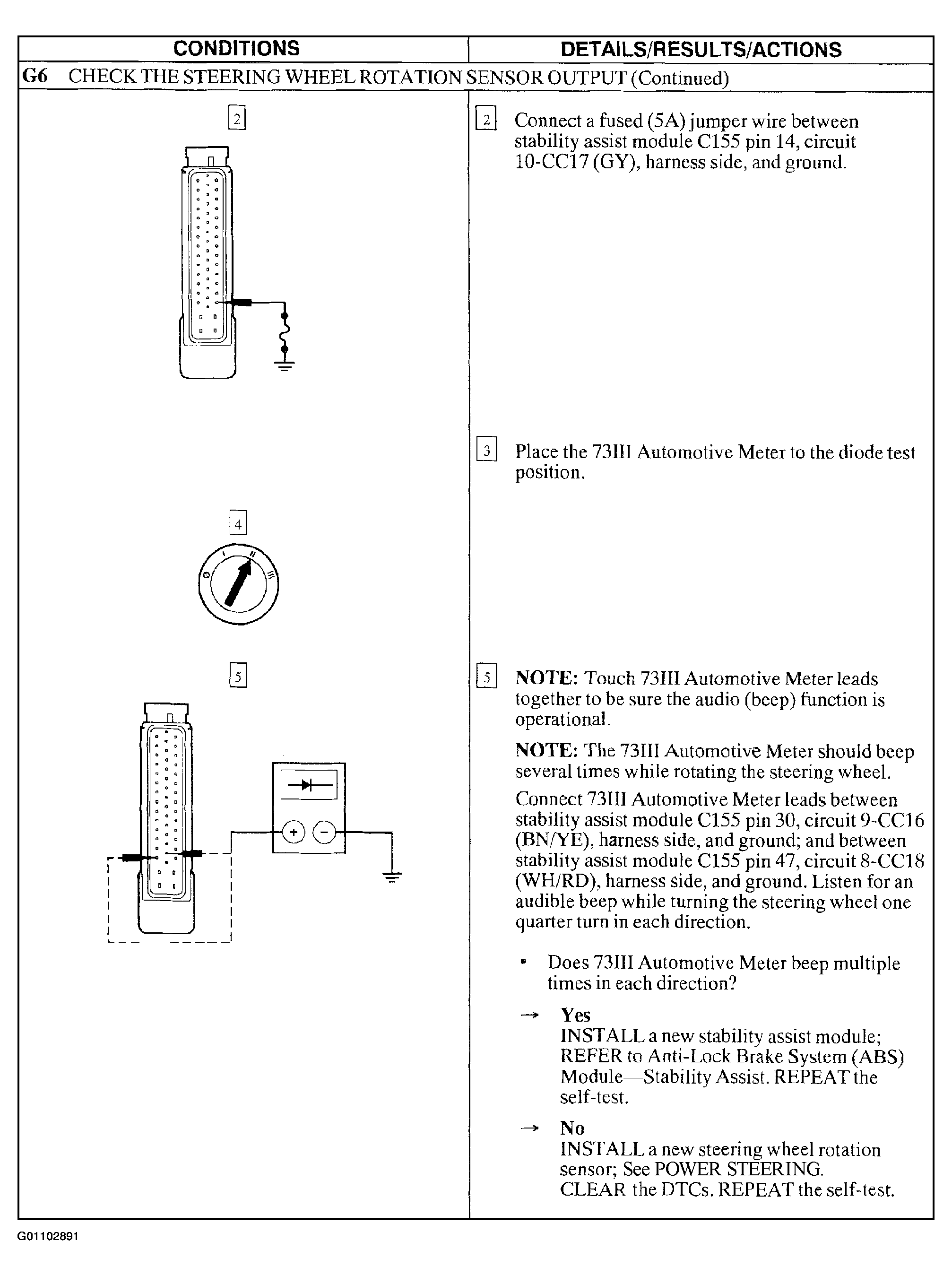

Fig 6: Pinpoint Test G: DTC C1277 - Steering Wheel Angle 1 And 2 Circuit Failure, DTC C1278 - Steering Wheel Angle 1 And 2 Circuit Faulted (Step G6 Cont.)

Courtesy of FORD MOTOR CO.
