Pinpoint Test F: DTC C1233 (LF), DTC C1234 (RF), DTC C1235 (RR), DTC C1236 (LR) - Anti-Lock Brake Sensor Input Signal Missing

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Any time an anti-lock brake sensor is removed, thoroughly clean the mounting surfaces and apply High Temperature 4x4 Front Axle and Wheel Bearing Grease E8TZ-19590-A or equivalent meeting Ford specification ESA-M1C198-A.

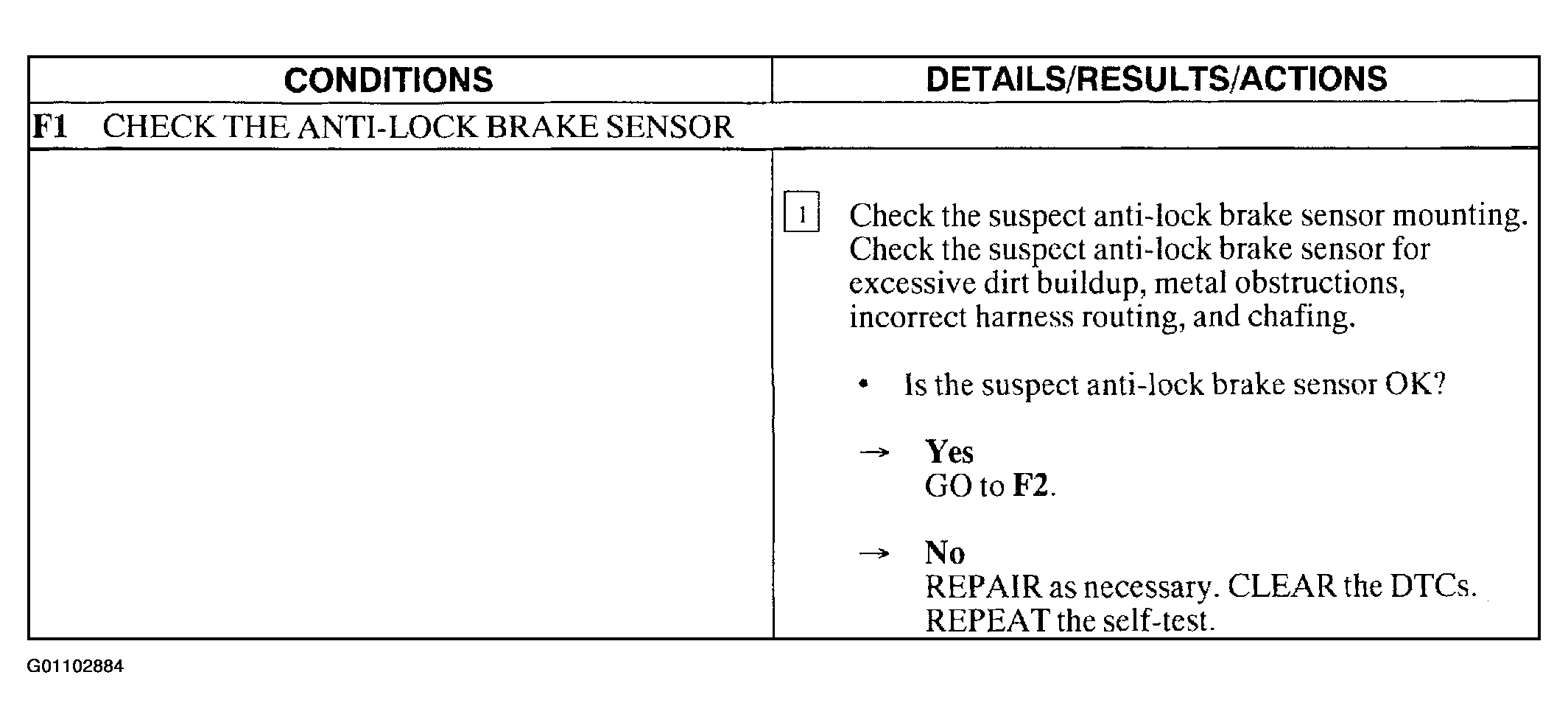

Fig 1: Pinpoint Test F: DTC C1233 (LF), DTC C1234 (RF), DTC C1235 (RR), DTC C1236 (LR) - Anti-Lock Brake Sensor Input Signal Missing (Step F1)

Courtesy of FORD MOTOR CO.

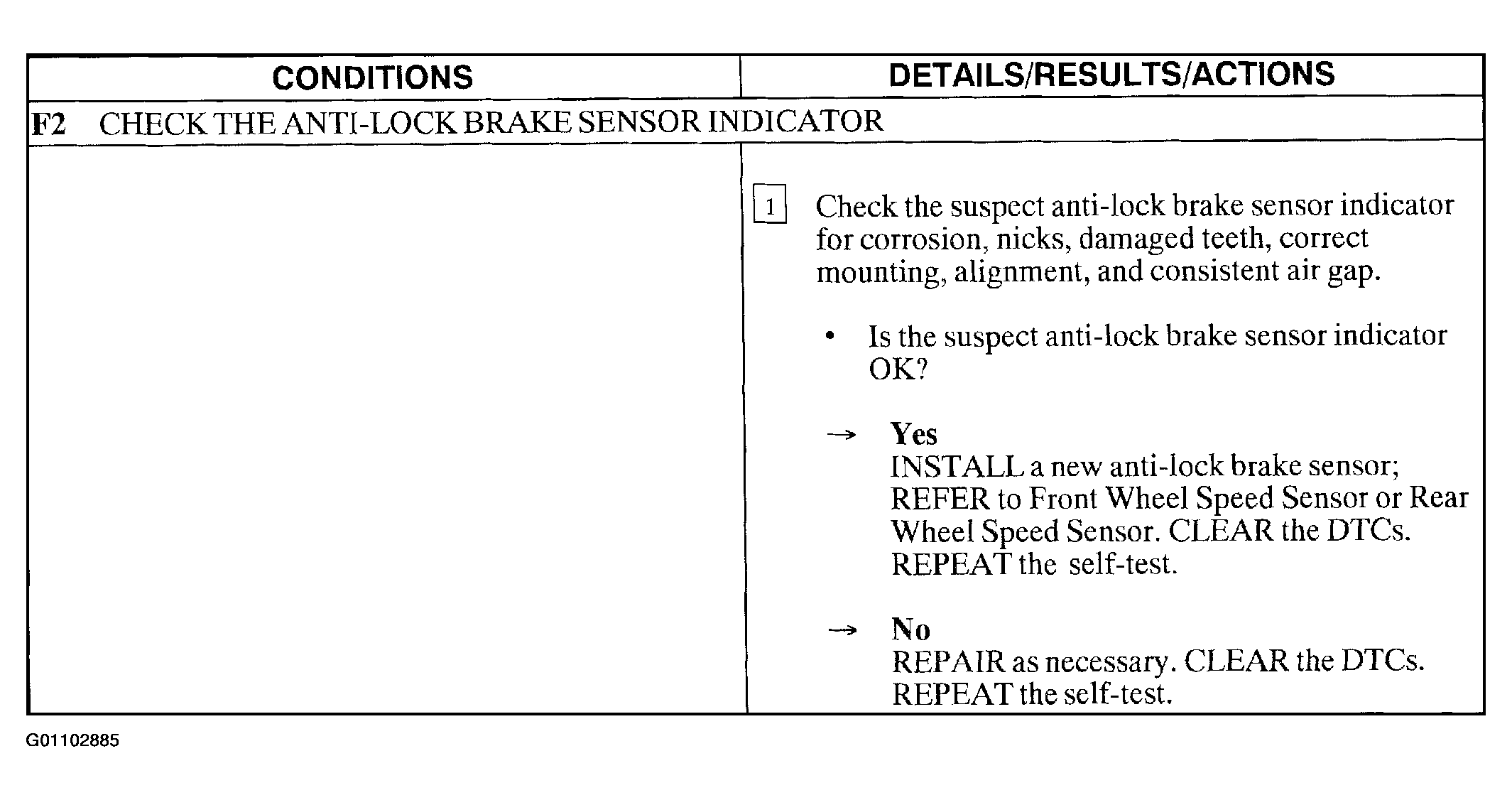

Fig 2: Pinpoint Test F: DTC C1233 (LF), DTC C1234 (RF), DTC C1235 (RR), DTC C1236 (LR) - Anti-Lock Brake Sensor Input Signal Missing (Step F2)

Courtesy of FORD MOTOR CO.
