Pinpoint Test D: DTC C1095 - ABS Hydraulic Pump Motor Circuit Failure

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

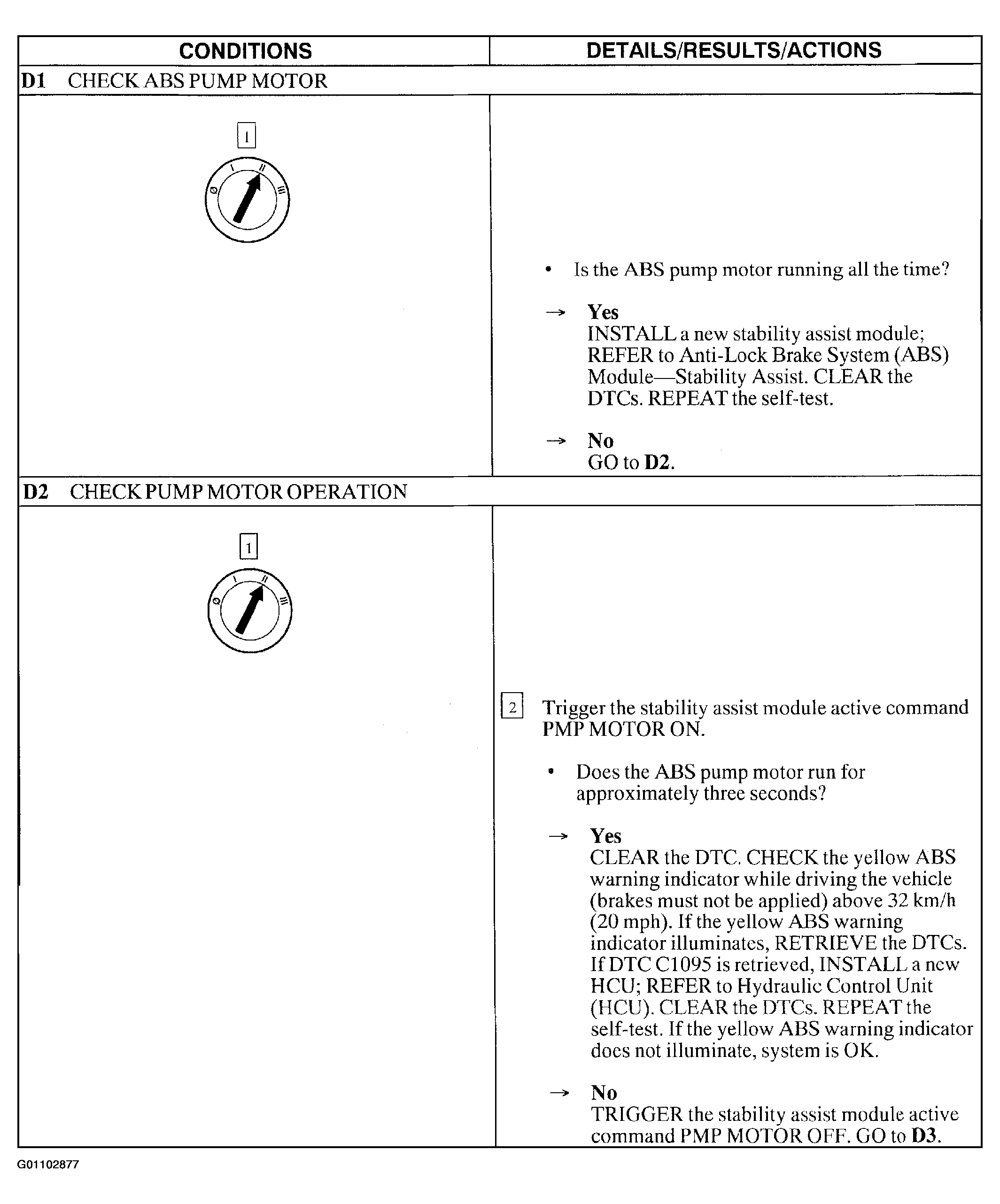

Fig 1: Pinpoint Test D: DTC C1095 - ABS Hydraulic Pump Motor Circuit Failure (Steps D1 & D2)

Courtesy of FORD MOTOR CO.

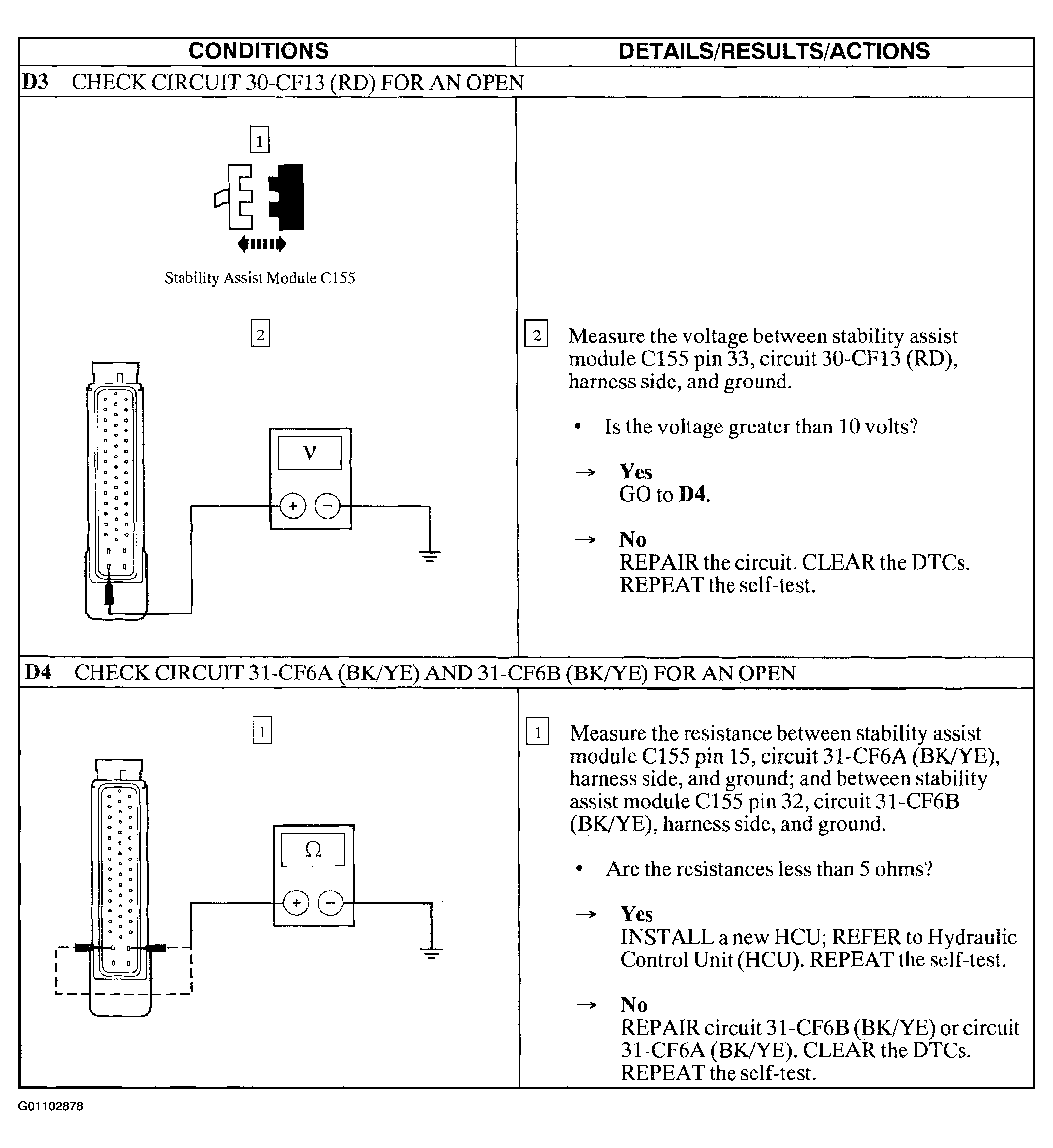

Fig 2: Pinpoint Test D: DTC C1095 - ABS Hydraulic Pump Motor Circuit Failure (Steps D3 & D4)

Courtesy of FORD MOTOR CO.
