Rear Wheel Bearing and Axle Shaft Oil Seal: Removal
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the axle shaft. For additional information, refer to AXLE SHAFT .
- Remove the oil seal from the axle tube.
- Discard the oil seal.
- Inspect the rear wheel bearing and axle shaft for wear or damage.

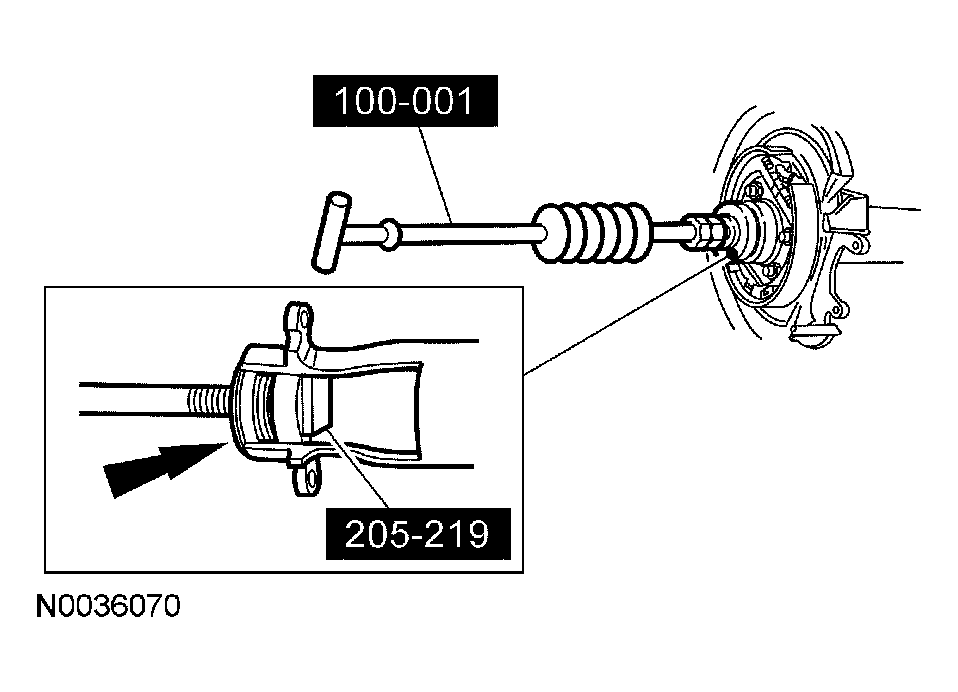

- If necessary, using the special tools, remove the rear wheel bearing.
WARNING:
If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM
.
NOTE:
If the wheel bearing oil seal is leaking, the axle housing vent may be plugged with foreign material.
NOTE:
If only the seal needs to be installed, use care to avoid damaging the seal bore.
