Drive Pinion Flange and Drive Pinion Seal: Removal

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: The electrical power to the air suspension system must be shut off prior to hoisting, jacking or towing an air suspension vehicle. This can be accomplished by turning off the air suspension switch located in the LH side of the luggage compartment. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations.
    Fig 1: Locating Air Suspension Service Switch
    G04582893Courtesy of FORD MOTOR CO.
  1. Turn the air suspension switch OFF.
    2. WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .
    CAUTION: Remove the rear brake discs to prevent brake drag during drive pinion bearing preload adjustment.
    NOTE: When removing the rear brake caliper in this procedure, it is not necessary to disconnect the hydraulic lines.
  2. Remove the rear brake discs and rear brake caliper. For additional information, refer to REAR DISC BRAKE .
    • Support the rear brake caliper with mechanic's wire.
  3. Index-mark the driveshaft flange and pinion flange for correct alignment during installation.

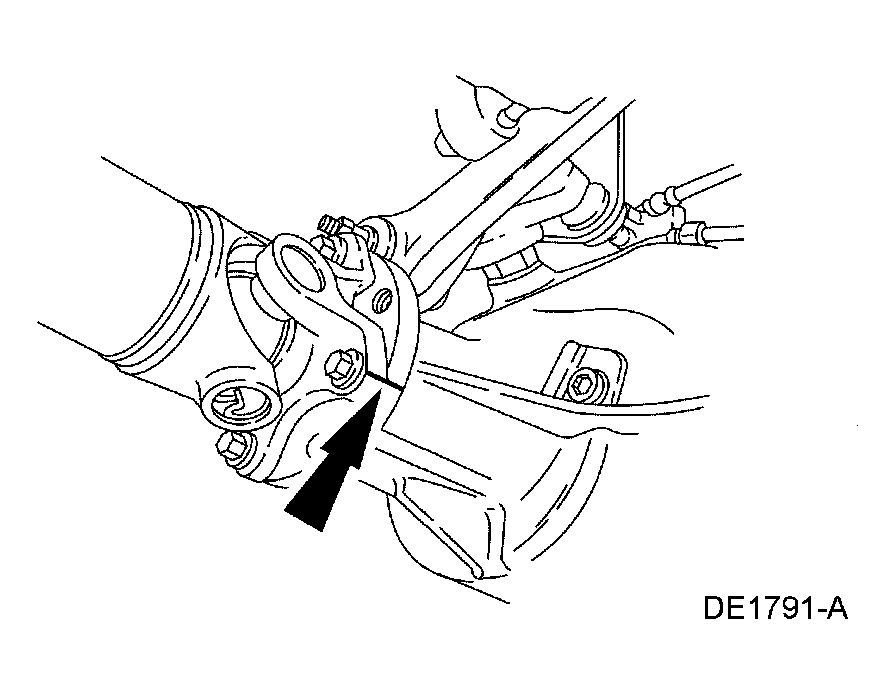

    Fig 2: Identifying Mark On Driveshaft Flange And Pinion Flange
    G04582894Courtesy of FORD MOTOR CO.
  4. Remove the 4 driveshaft bolts.
    Fig 3: Identifying Driveshaft Flange Bolts
    G03878515Courtesy of FORD MOTOR CO.
    5. CAUTION: The driveshaft centering socket yoke fits tightly on the rear axle pinion flange pilot. Never hammer on the driveshaft or any of its components to disconnect the yoke from the flange. Pry only in the area shown with a suitable tool to disconnect the yoke from the flange.
  5. Using a suitable tool as shown, disconnect the driveshaft centering socket yoke from the rear axle pinion flange.
    • Position the driveshaft aside.
      Fig 4: Disconnecting Driveshaft Flange Yoke From Pinion Flange
      G03878446Courtesy of FORD MOTOR CO.
  6. Install a Nm (lb-in) torque wrench on the nut and record the torque necessary to maintain rotation of the pinion through several revolutions.

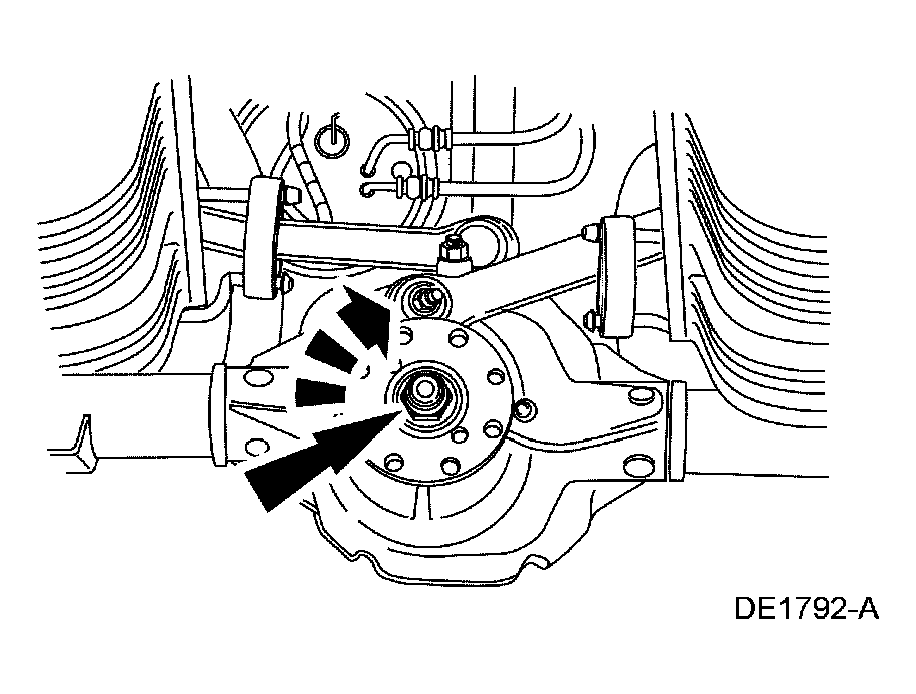

    Fig 5: Measuring Pinion Rotating Torque
    G04582897Courtesy of FORD MOTOR CO.
    7. CAUTION: Discard the nut after removing it. Install a new nut during installation.

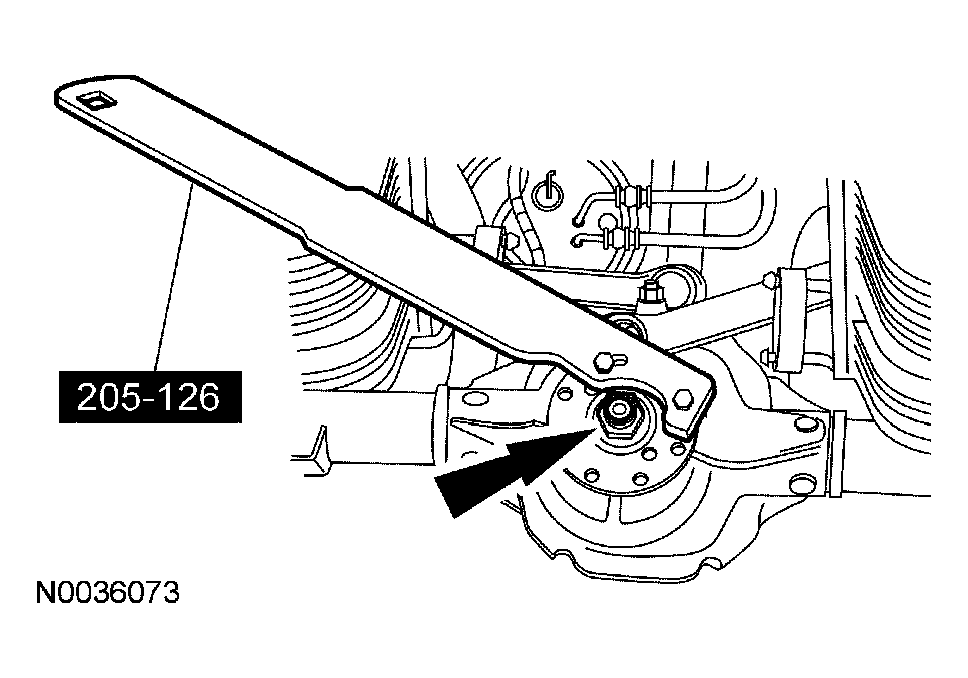

    Fig 6: Removing Pinion Flange Nut
    G04582898Courtesy of FORD MOTOR CO.
  7. Use the special tool to hold the pinion flange while removing the nut.
  8. Index-mark the pinion flange and the drive pinion stem for correct alignment during installation.

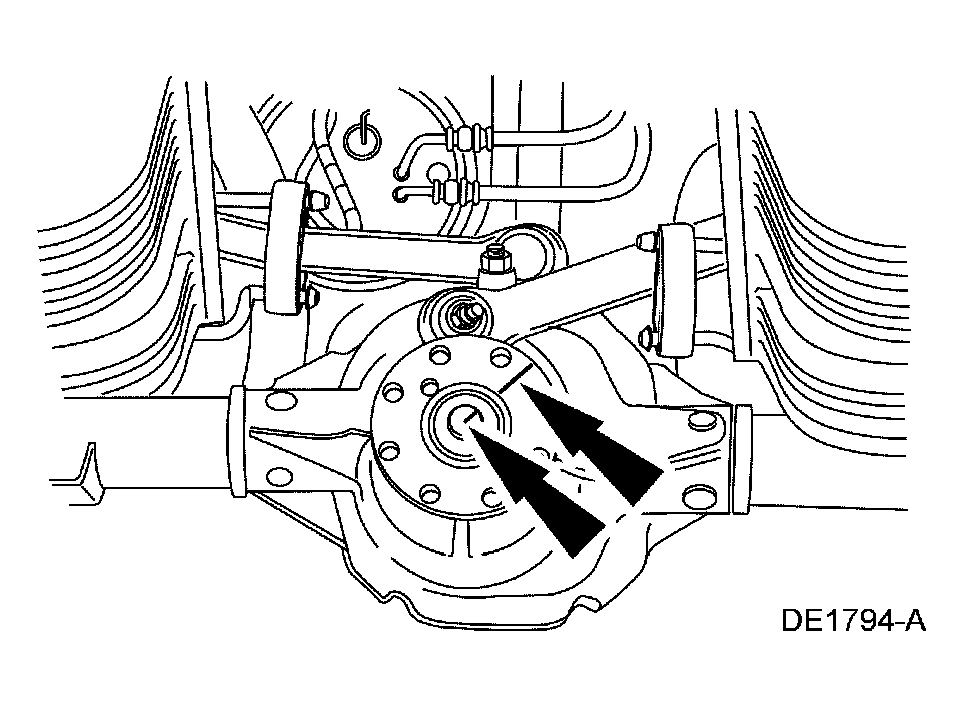

    Fig 7: Identifying Mark On Pinion Flange And Drive Pinion Stem
    G04582899Courtesy of FORD MOTOR CO.
  9. Using the special tool, remove the pinion flange.
    Fig 8: Removing Pinion Flange Using Special Tool
    G03878593Courtesy of FORD MOTOR CO.
  10. Force up on the metal flange of the drive pinion seal. Install gripping pliers and strike with a hammer until the drive pinion seal is removed.
    • Discard the seal.
      Fig 9: Removing Drive Pinion Oil Seal
      G03878521Courtesy of FORD MOTOR CO.
