Differential Housing Cover: Removal

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The electrical power to the air suspension system must be shut off prior to hoisting, jacking or towing an air suspension vehicle. This can be accomplished by turning off the air suspension switch located in the LH side of the luggage compartment. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations.

WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .

Fig 1: Locating Air Suspension Service Switch

Courtesy of FORD MOTOR CO.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the differential housing cover.
1. Remove the differential housing cover bolts and drain the lubricant from the differential housing.
2. Remove the differential housing cover.
  - Police vehicles have a lower axle guard.

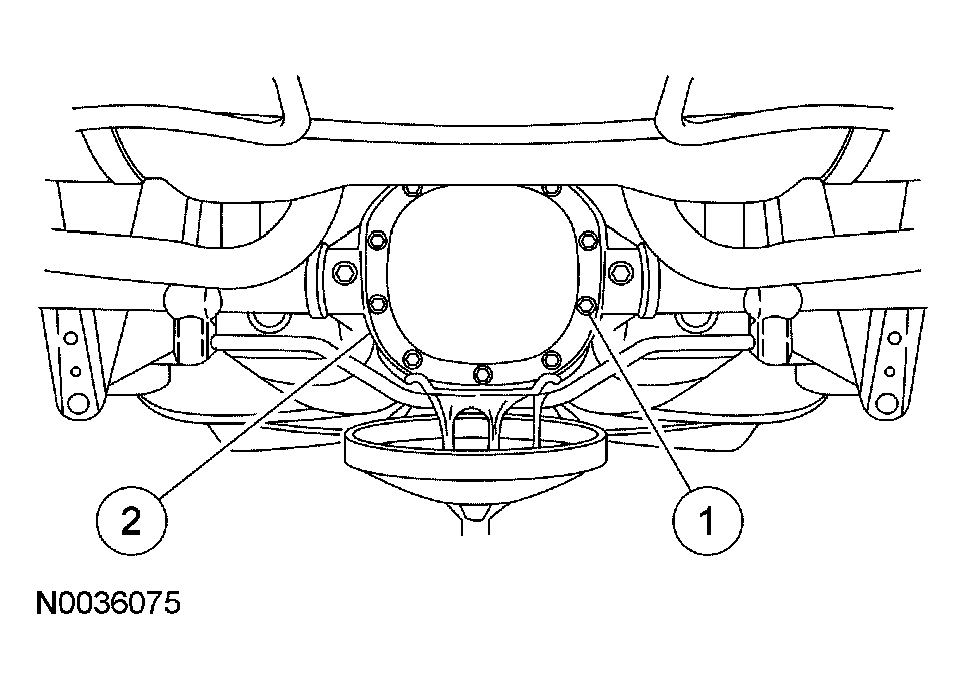

    Fig 2: Removing Differential Housing Cover
    Courtesy of FORD MOTOR CO.
