Pinpoint Test G: The Yellow Anti-Lock Brake Warning Indicator Does Not Self- Check

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

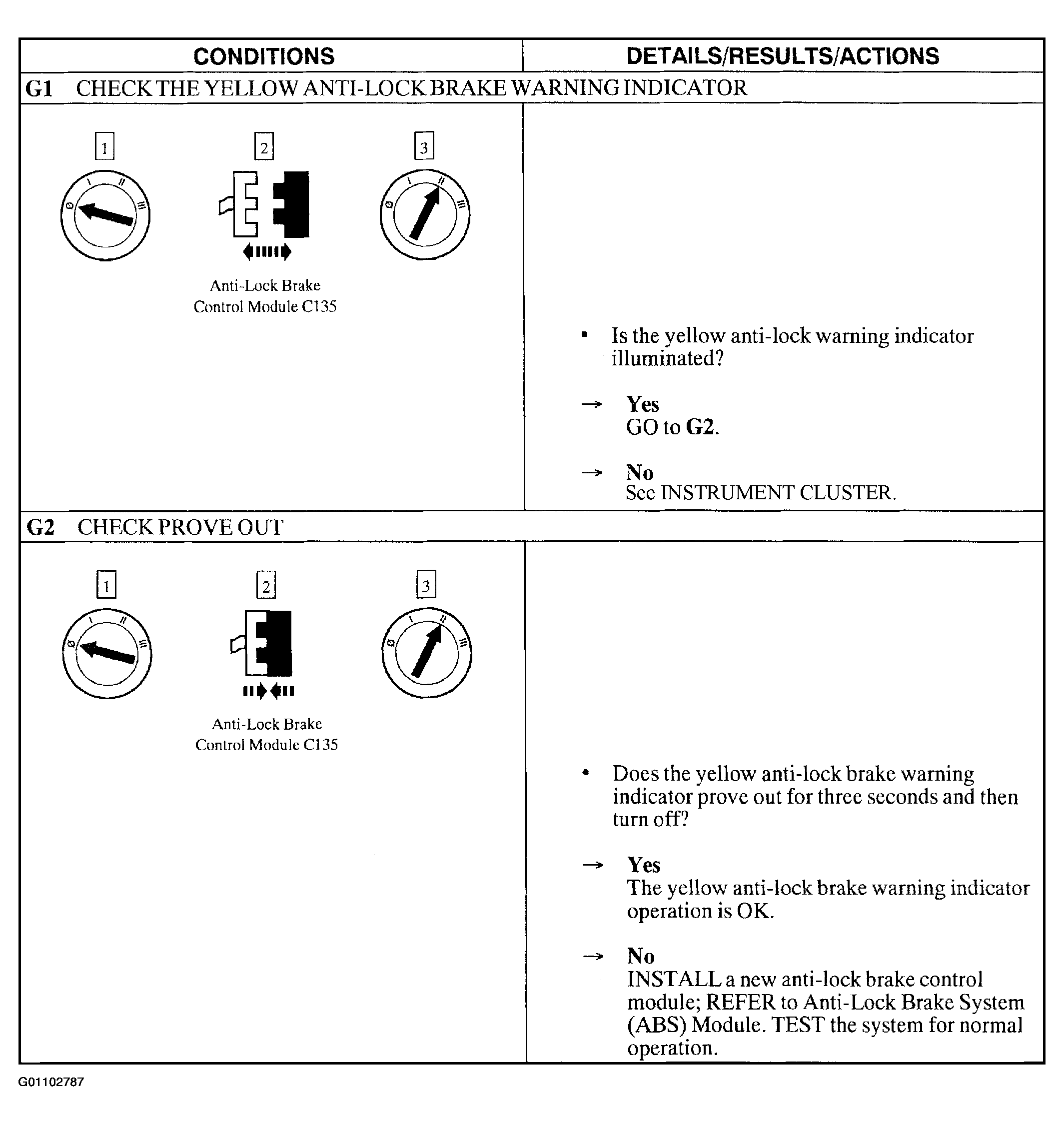

Fig 1: Pinpoint Test G
G01102787Courtesy of FORD MOTOR CO.
