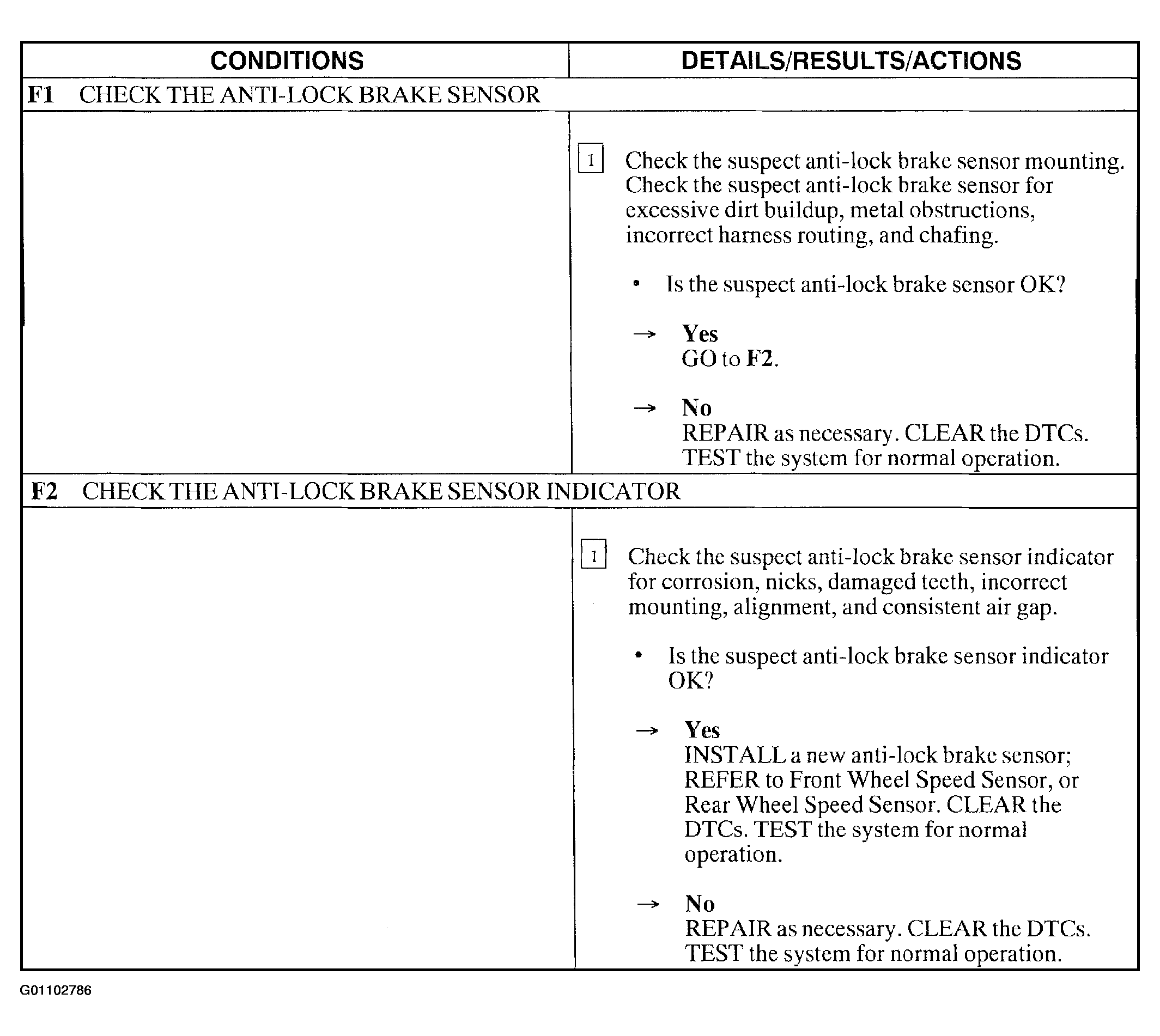

Pinpoint Test F: DTC C1233 (LF), DTC C1234 (RF), DTC C1235 (RR), DTC C1236 (LR) - Anti-Lock Brake Sensor Input Signal Missing
WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.
NOTE:
Any time an anti-lock brake sensor is removed, thoroughly clean the mounting surfaces, apply High Temperature 4x4 Front Axle and Wheel Bearing Grease E8TZ-19590-A or equivalent meeting Ford specification ESA-M1C198-A.
