Pinpoint Test D: DTC C1095, Hydraulic Pump Motor Circuit Failure

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

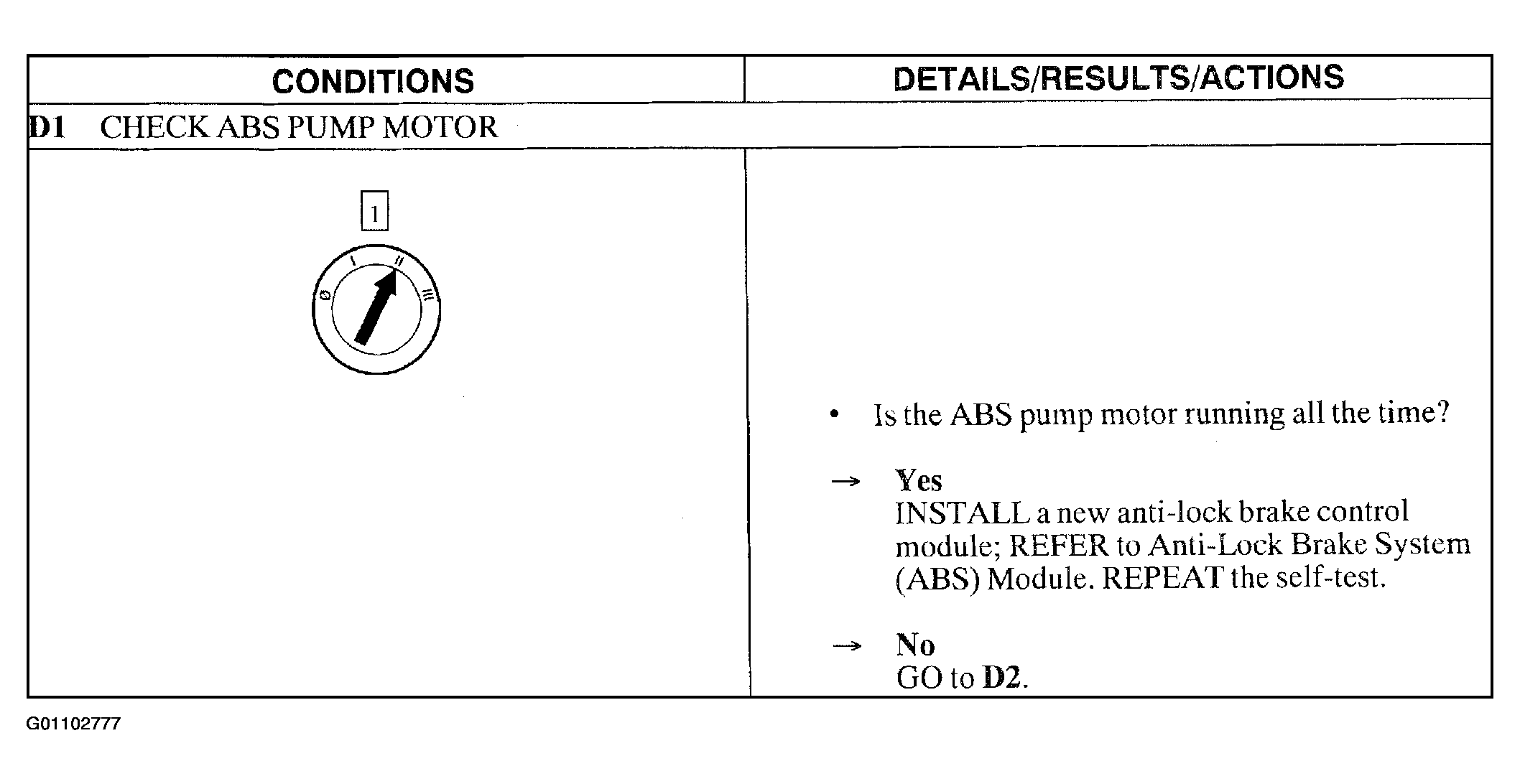

Fig 1: Pinpoint Test D (Step D1)

Courtesy of FORD MOTOR CO.

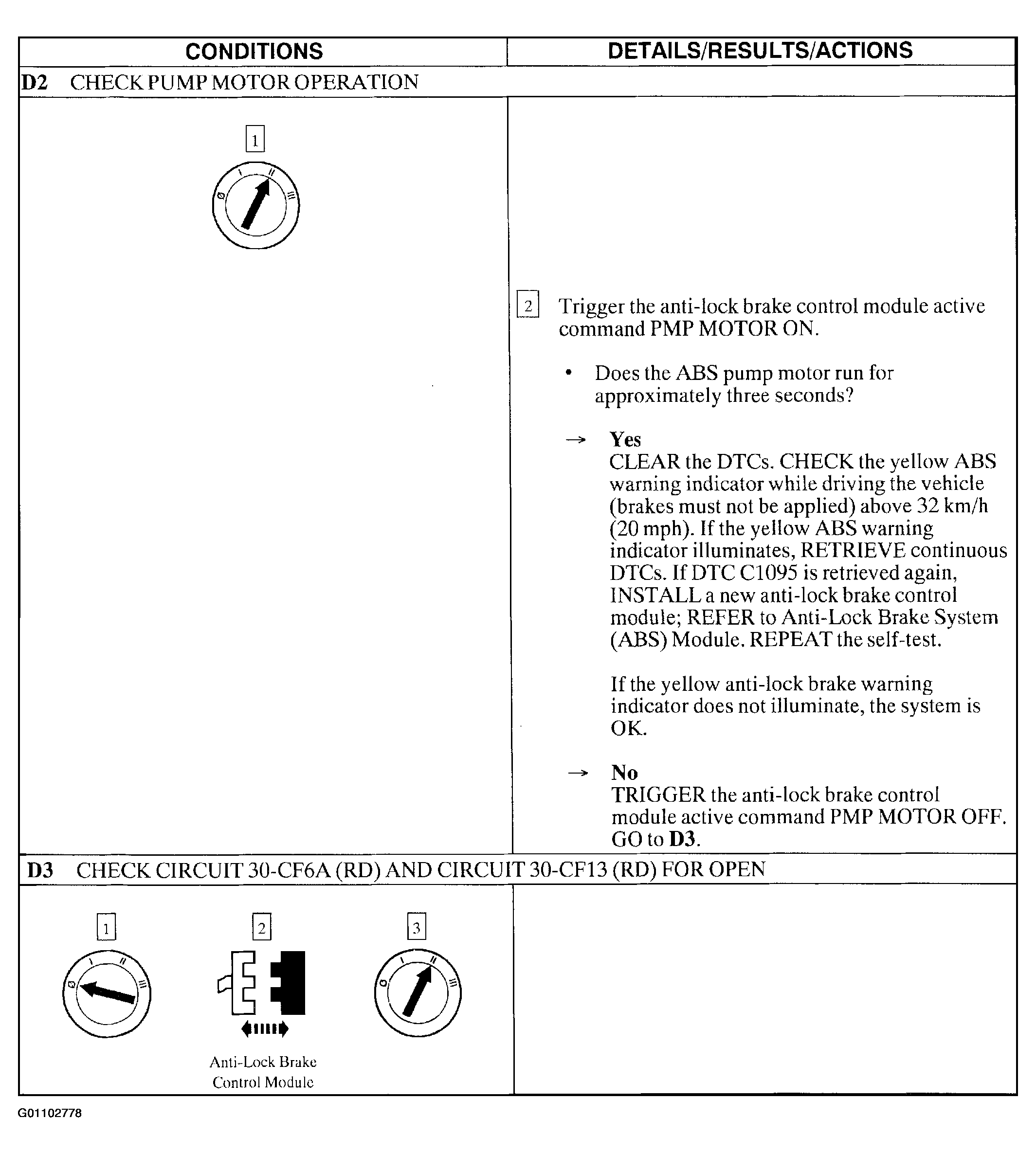

Fig 2: Pinpoint Test D (Steps D2 & D3)

Courtesy of FORD MOTOR CO.

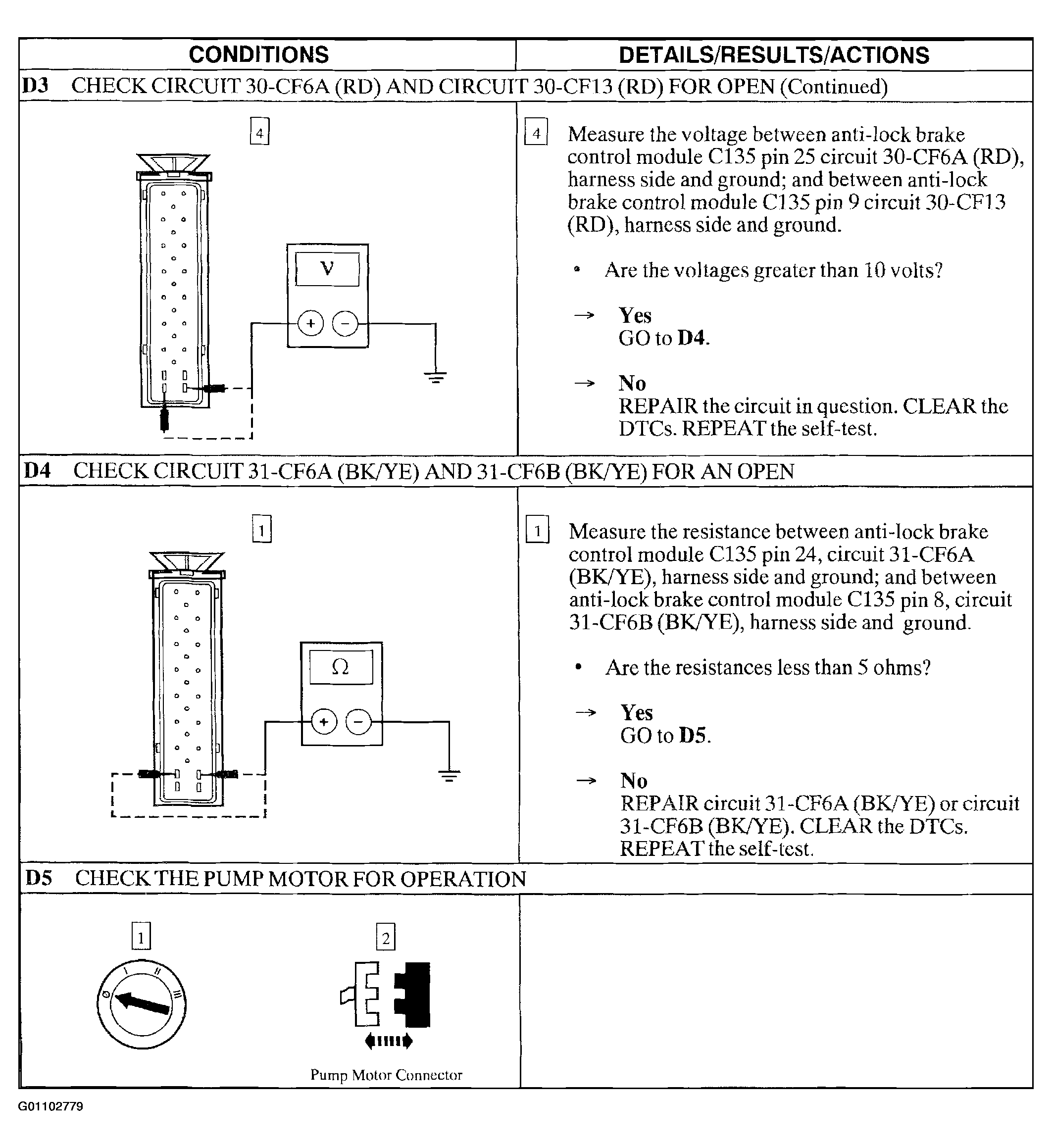

Fig 3: Pinpoint Test D (Steps D3 Cont. - D5)

Courtesy of FORD MOTOR CO.

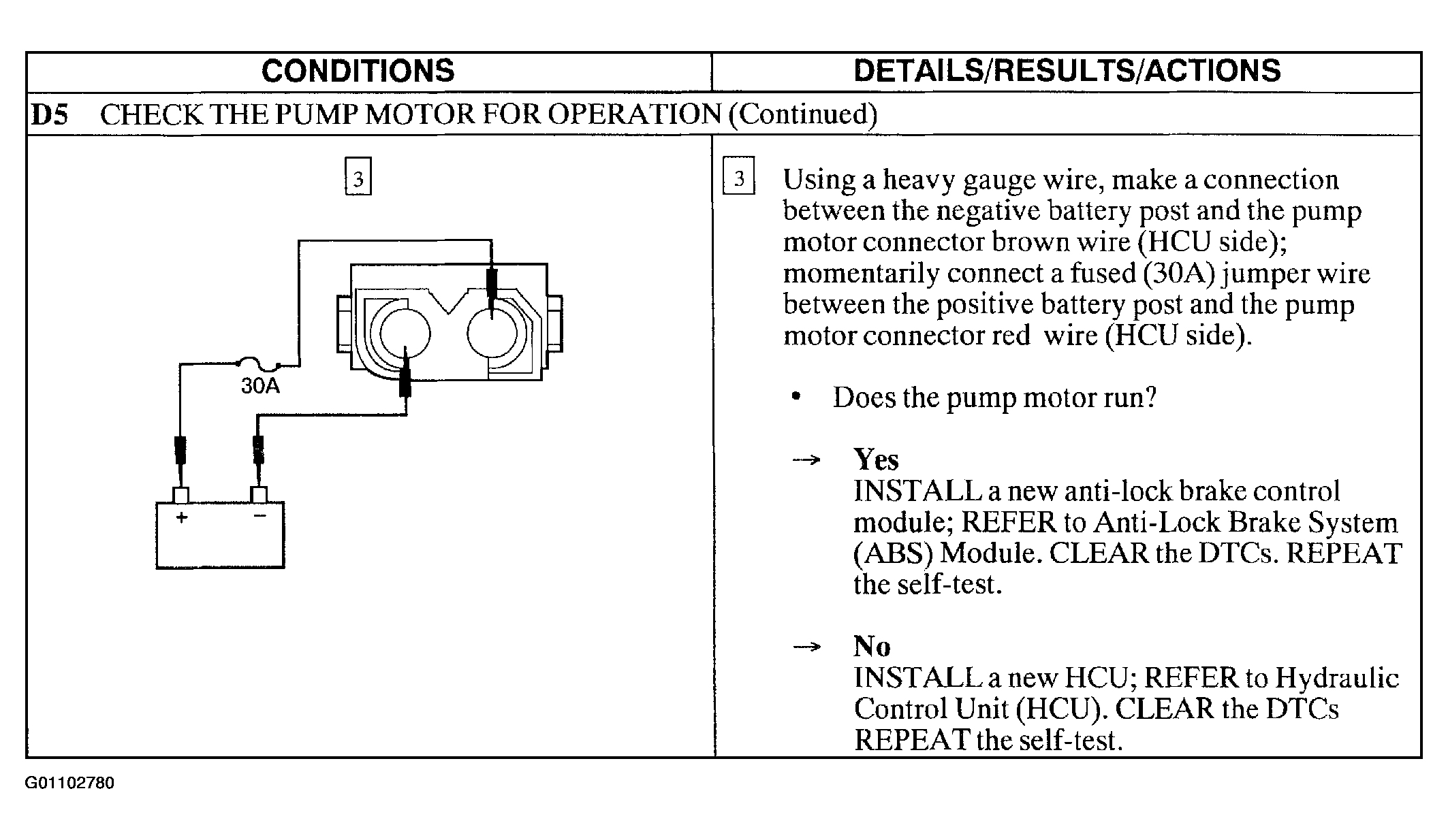

Fig 4: Pinpoint Test D (Step D5 Cont.)

Courtesy of FORD MOTOR CO.
