Wheel Studs: Removal
WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Suspension fasteners are critical parts because they affect the performance of vital components and systems and their failure can result in major service expense. A new part with the same part number must be installed if installation becomes necessary. Do not use a new part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.
- Remove the wheel and tire assembly.
- Remove the front brake disc. For additional information, refer to FRONT ROTOR .

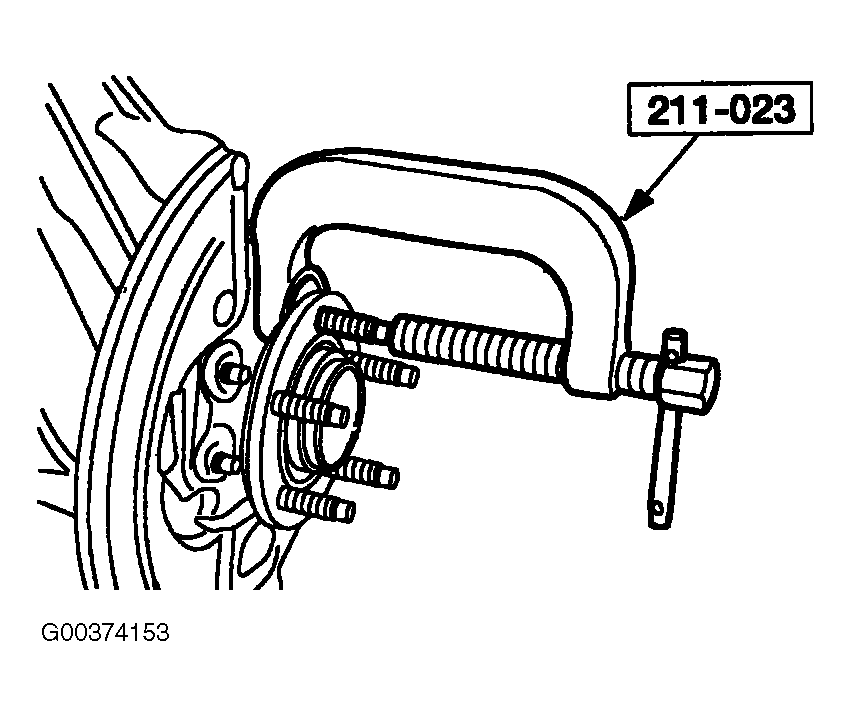

- Using the special tool, press the stud from the flange.

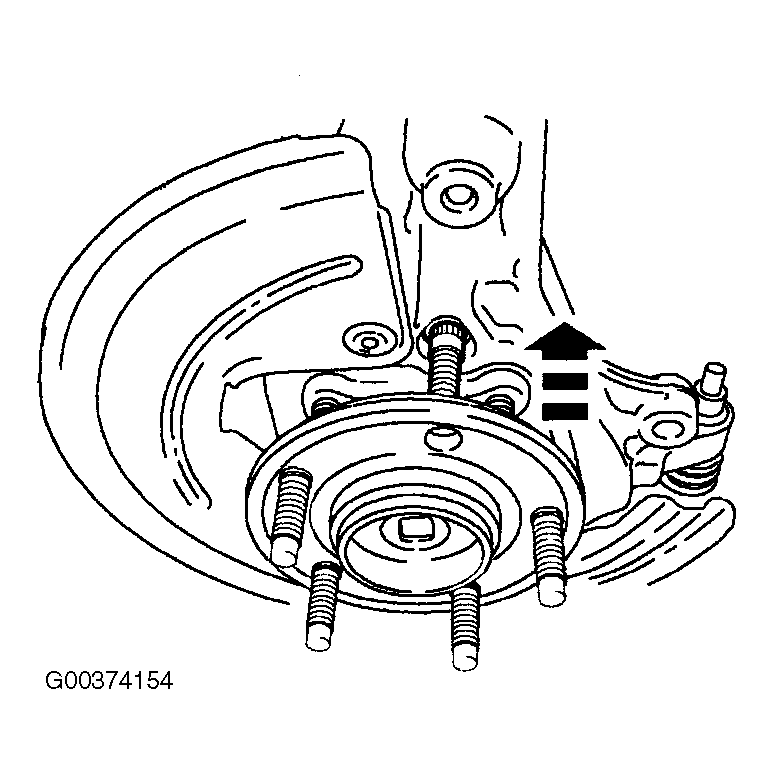

- Line up the stud with the hole in the knuckle and remove the stud.
