All vehicles

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Suspension fasteners are critical parts because they affect the performance of vital components and systems and their failure can result in major service expense. A new part with the same part number must be installed if installation becomes necessary. Do not use a new part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.
  1. Remove the upper radiator sight shield.
  2. Remove the air cleaner.
  3. Drain the engine cooling system.
  4. Disconnect the upper radiator hose.
  5. Disconnect the lower radiator hose.
  6. Disconnect the dual flow coolant valve electrical connector and the A/C line from the fan shroud.

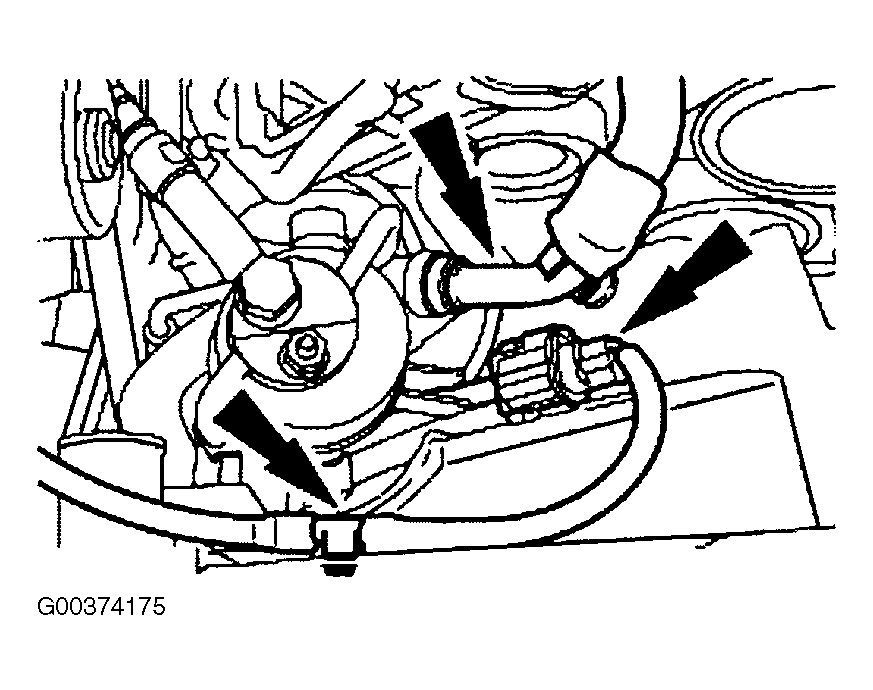

    Fig 1: Identifying Electrical Connector & A/C Line
    G00374175Courtesy of FORD MOTOR CO.


  1. Separate the return hose from the fan shroud and position aside.
  2. Disconnect the lower radiator hose.
  3. Remove the two bolts and position the multi-cooler assembly and fan shroud assembly aside.

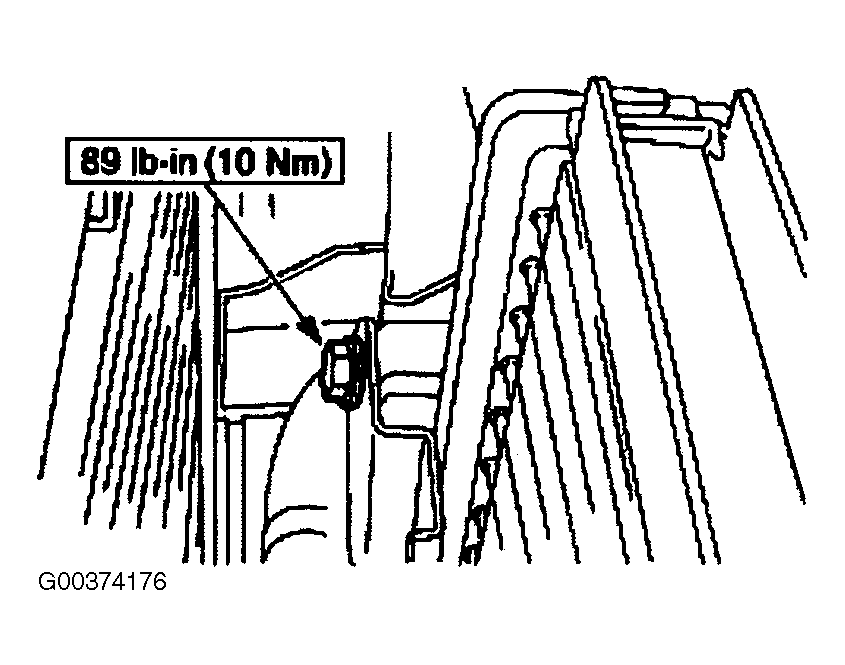

    Fig 1: Identifying Multi-Cooler Retaining Bolt
    G00374176Courtesy of FORD MOTOR CO.
  4. Remove the front wheel and tire assemblies.
  5. Remove two pushpins, four bolts and both splash shields.
    Fig 2: Identifying Splash Shield
    G00374155Courtesy of FORD MOTOR CO.
  6. Remove the bolts and the shield.

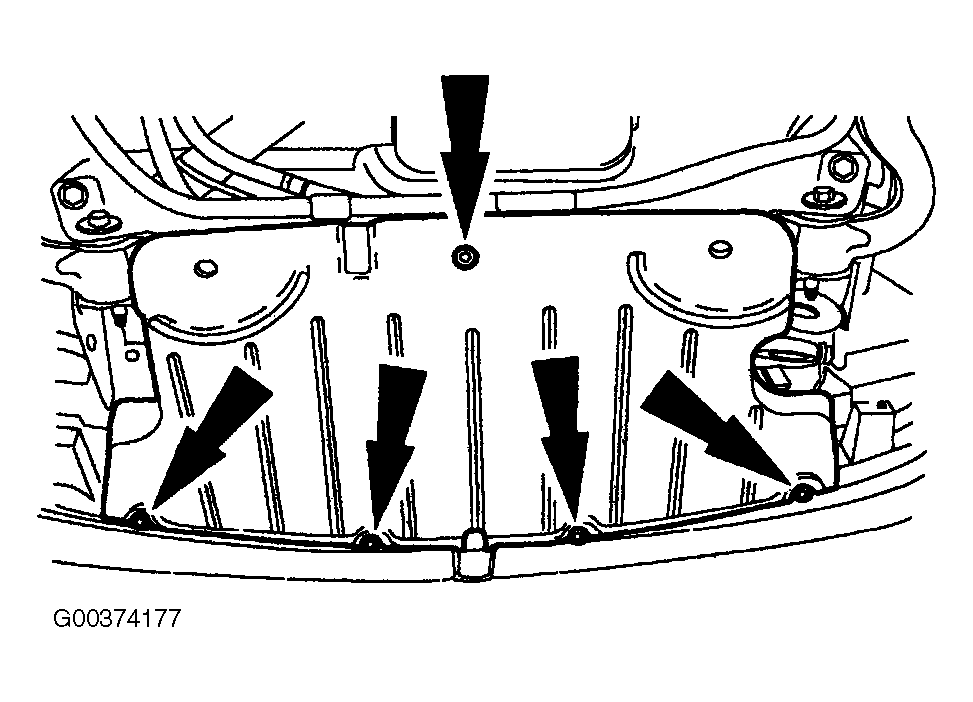

    Fig 3: Identifying Shield Bolts
    G00374177Courtesy of FORD MOTOR CO.
    7. NOTE: To remove the nut, first loosen the nut, then use the hex holding feature to prevent the stabilizer bar link ball joint from turning while removing the nut.
    Fig 4: Identifying Stabilizer Bar Link Nut
    G00374156Courtesy of FORD MOTOR CO.
  7. Remove the nut and disconnect the stabilizer bar link (5K483). Discard the nut.
    8. NOTE: To remove the nut, first loosen the nut, then use the hex holding feature to prevent the stabilizer bar link ball joint from turning while removing the nut.
    Fig 5: Identifying Stabilizer Bar-To-Link Nut
    G00374178Courtesy of FORD MOTOR CO.
  8. Remove the nut and stabilizer bar link. Discard the nut.
  9. Remove and discard the nut and bolt. Disconnect the left shock absorber and spring assembly.
    Fig 6: Identifying Shock Absorber Lower Mount
    G00374157Courtesy of FORD MOTOR CO.
    10. NOTE: To remove the nut, first loosen the nut, then use the hex holding feature to prevent the lower control arm ball joint from turning while removing the nut.
    NOTE: Make sure not to lose the tapered washer on the ball joint.
    Fig 7: Separating Lower Arm From Wheel Knuckle
    G00374158Courtesy of FORD MOTOR CO.
  10. Remove and discard the nut. Disconnect the left suspension lower arm and position the knuckle (3K185) out of the way.
  11. Remove the bolt and detach the A/C hose retainer. Position the A/C hose aside.

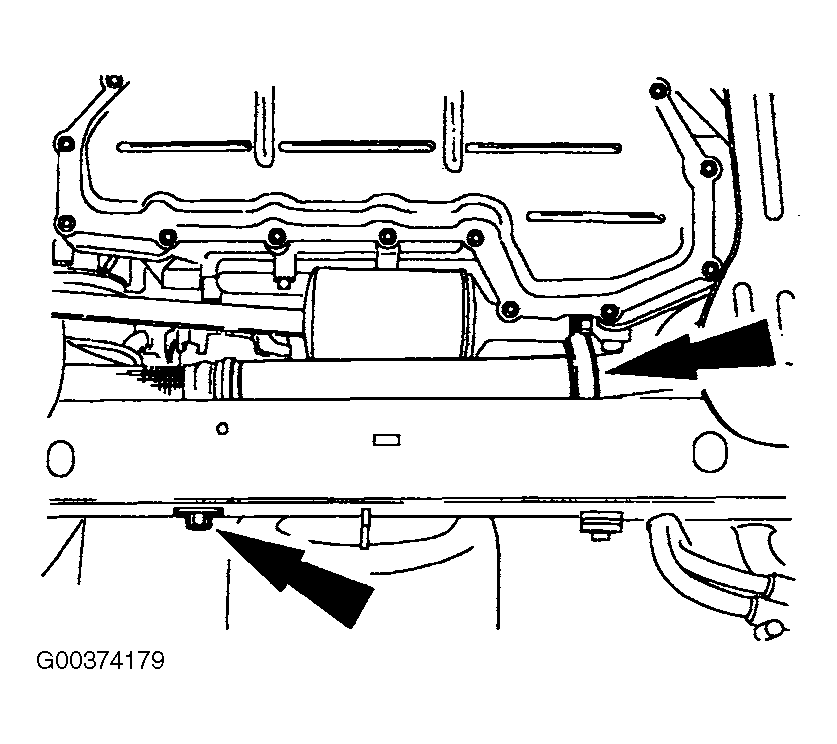

    Fig 8: Identifying A/C Line Retainer Bolt
    G00374179Courtesy of FORD MOTOR CO.
    12. NOTE: To ease removal of the right front bolt, remove it first.

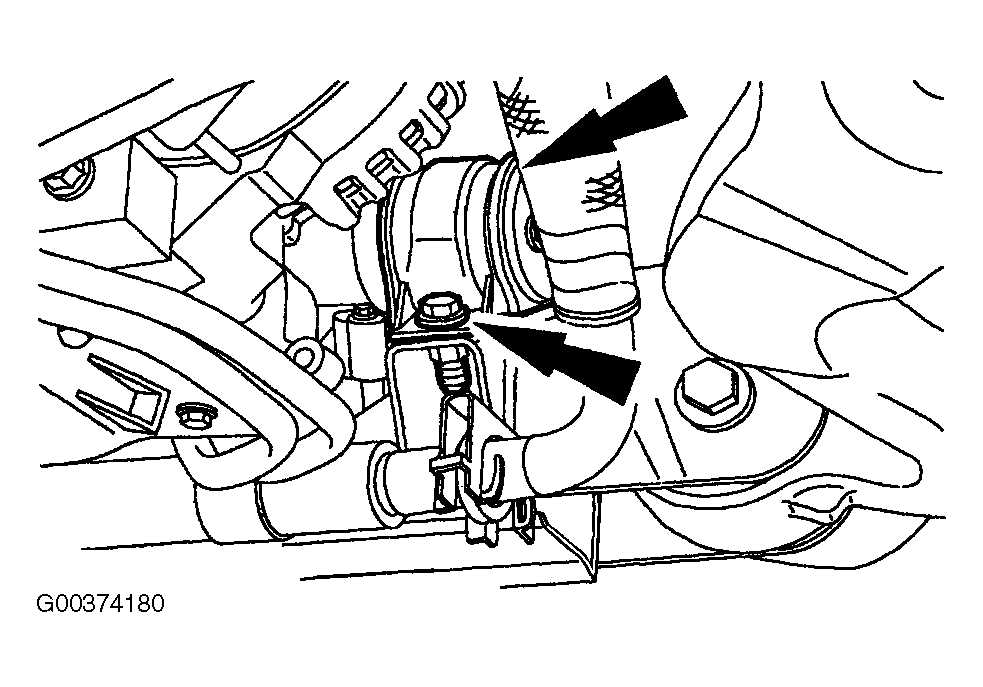

    Fig 9: Identifying Stabilizer Bar Retainer Bolts
    G00374180Courtesy of FORD MOTOR CO.
  12. Remove the bolts and the stabilizer bar brackets and bushings.
    13. NOTE: Deflect the LH lower control arm downward to ease removal of the stabilizer bar.
  13. Carefully remove the stabilizer bar through the left wheel well.
    14. NOTE: The replacement stabilizer bar includes the brackets and bushings as an assembly.
  14. To install, reverse the removal procedure.
