Diesel Vehicle Emission Control Information: Decal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Ford RV Cutaway, 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

Each vehicle has a decal containing emission control information that applies specifically to the vehicle and engine.

The emission decal shows the model year, engine displacement, rated horsepower, fuel rate and idle speed.

F-Super Duty

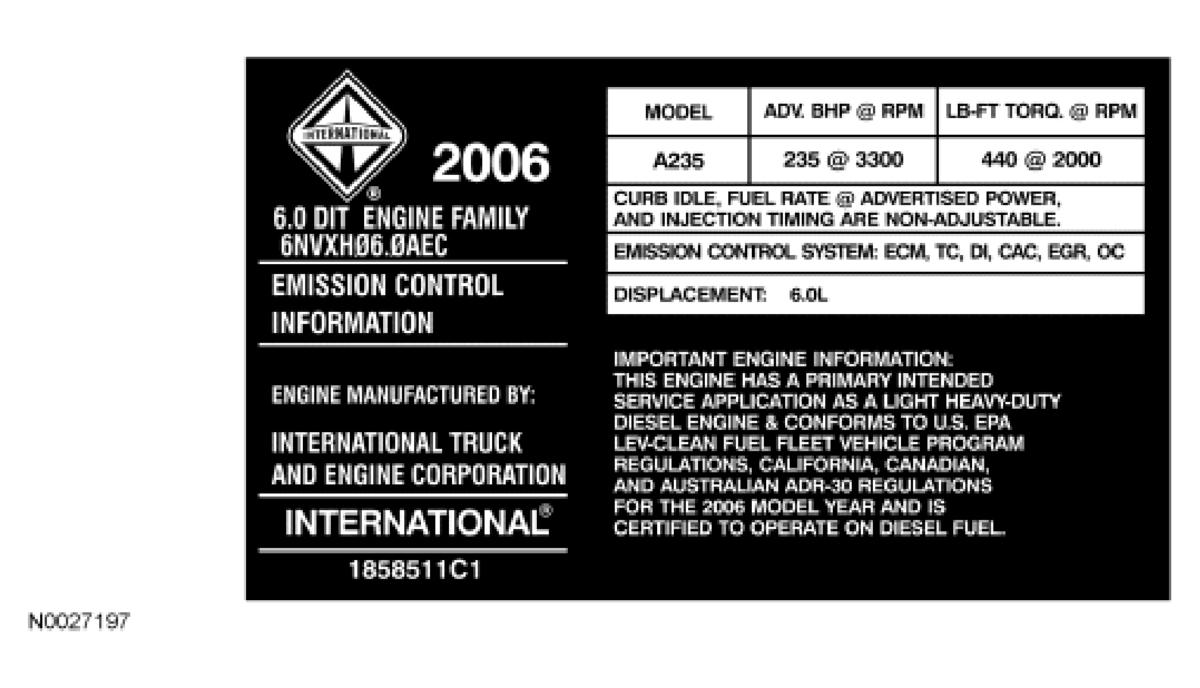

Fig 1: Identifying F-Super Duty Emission Decal (1 Of 2)

Courtesy of FORD MOTOR CO.

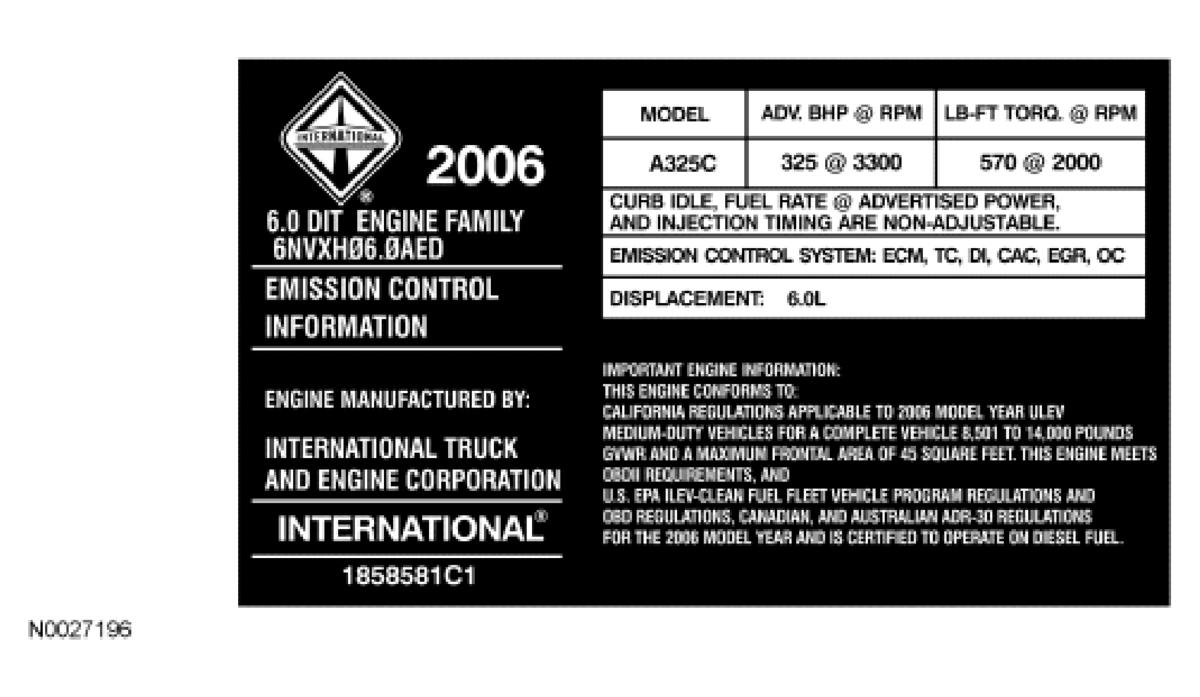

Fig 2: Identifying F-Super Duty Emission Decal (2 Of 2)

Courtesy of FORD MOTOR CO.

E-Series

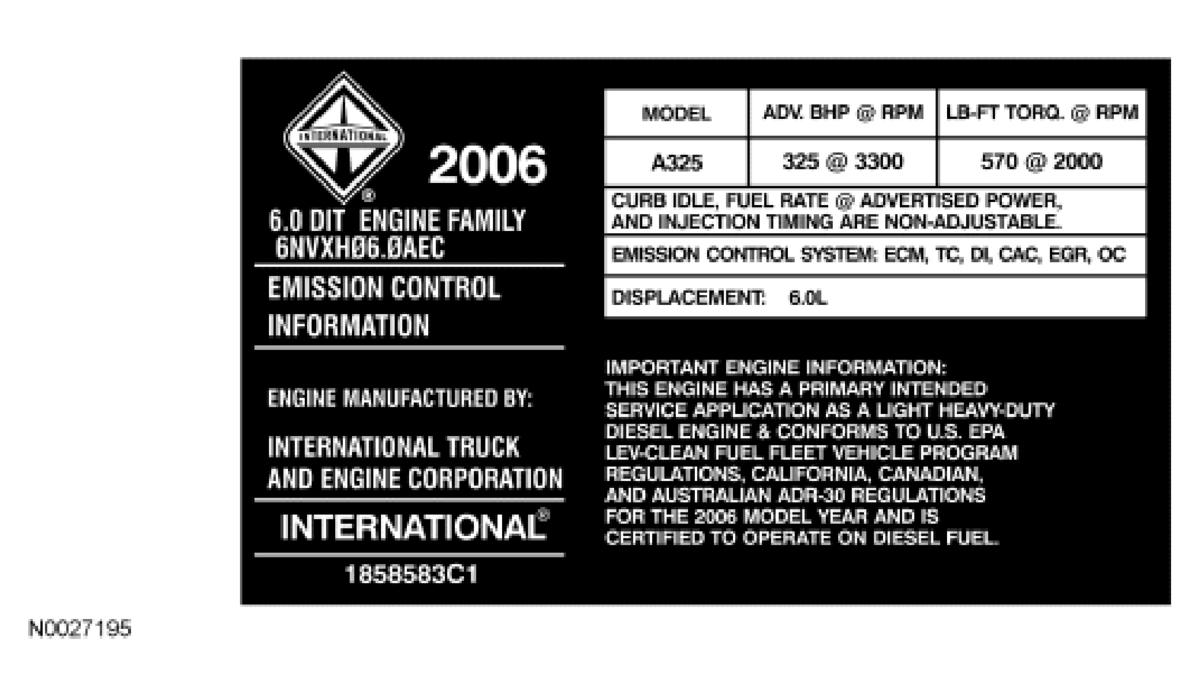

Fig 3: Identifying E-Series Emission Decal (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 4: Identifying E-Series Emission Decal (2 Of 2)

Courtesy of FORD MOTOR CO.
