Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

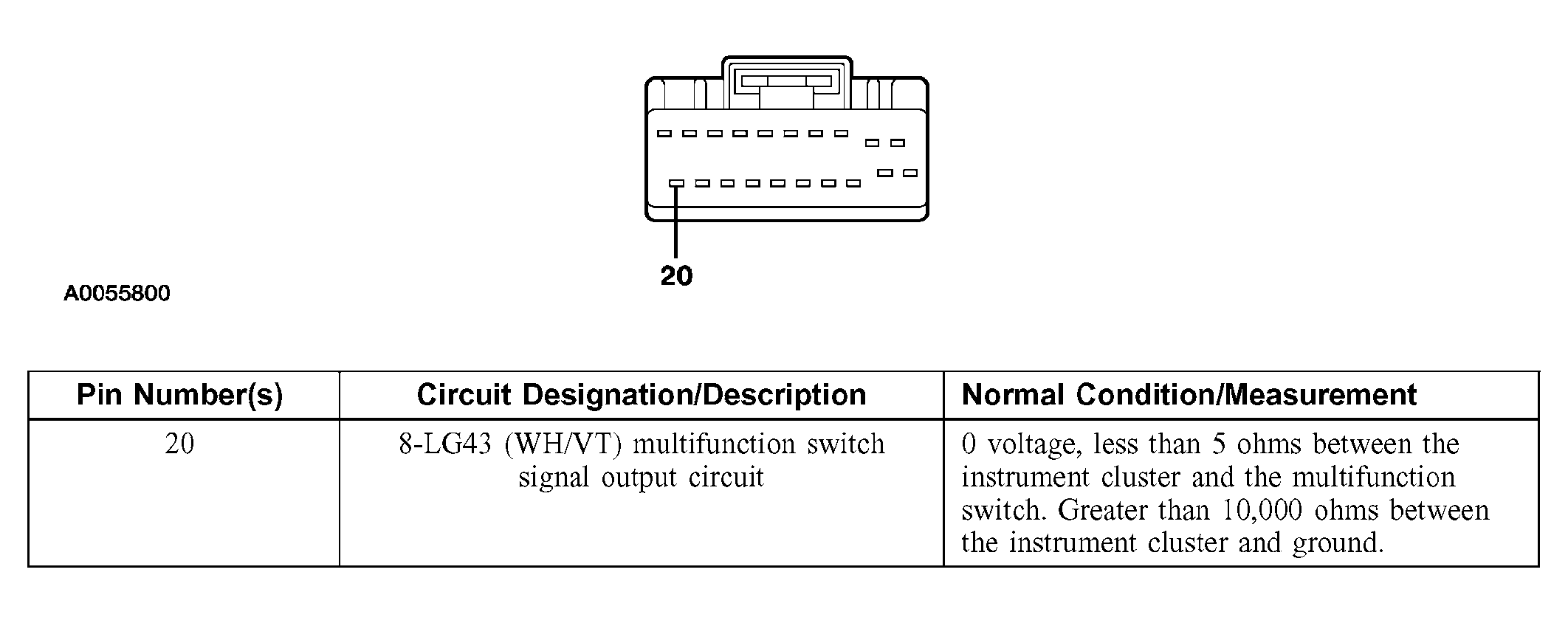

Fig 1: Instrument Cluster C220B

Courtesy of FORD MOTOR CO.

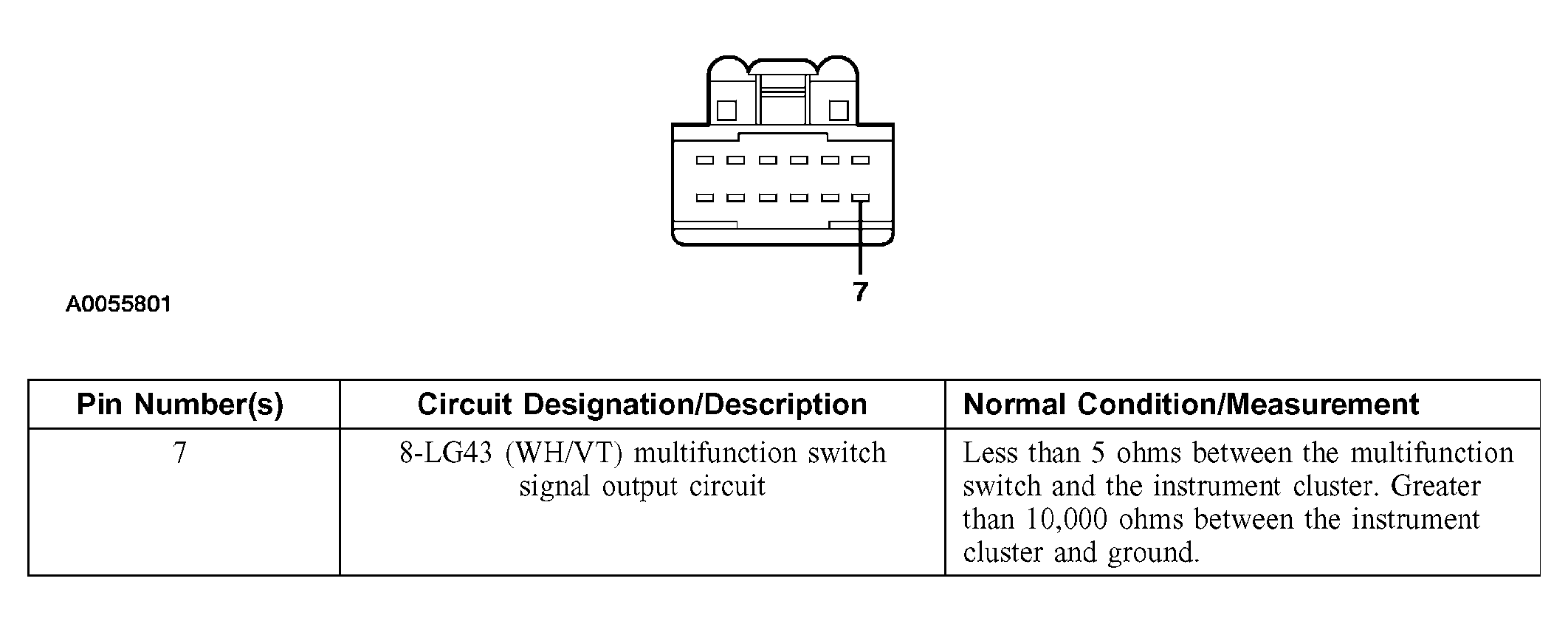

Fig 2: Multifunction Switch C202

Courtesy of FORD MOTOR CO.

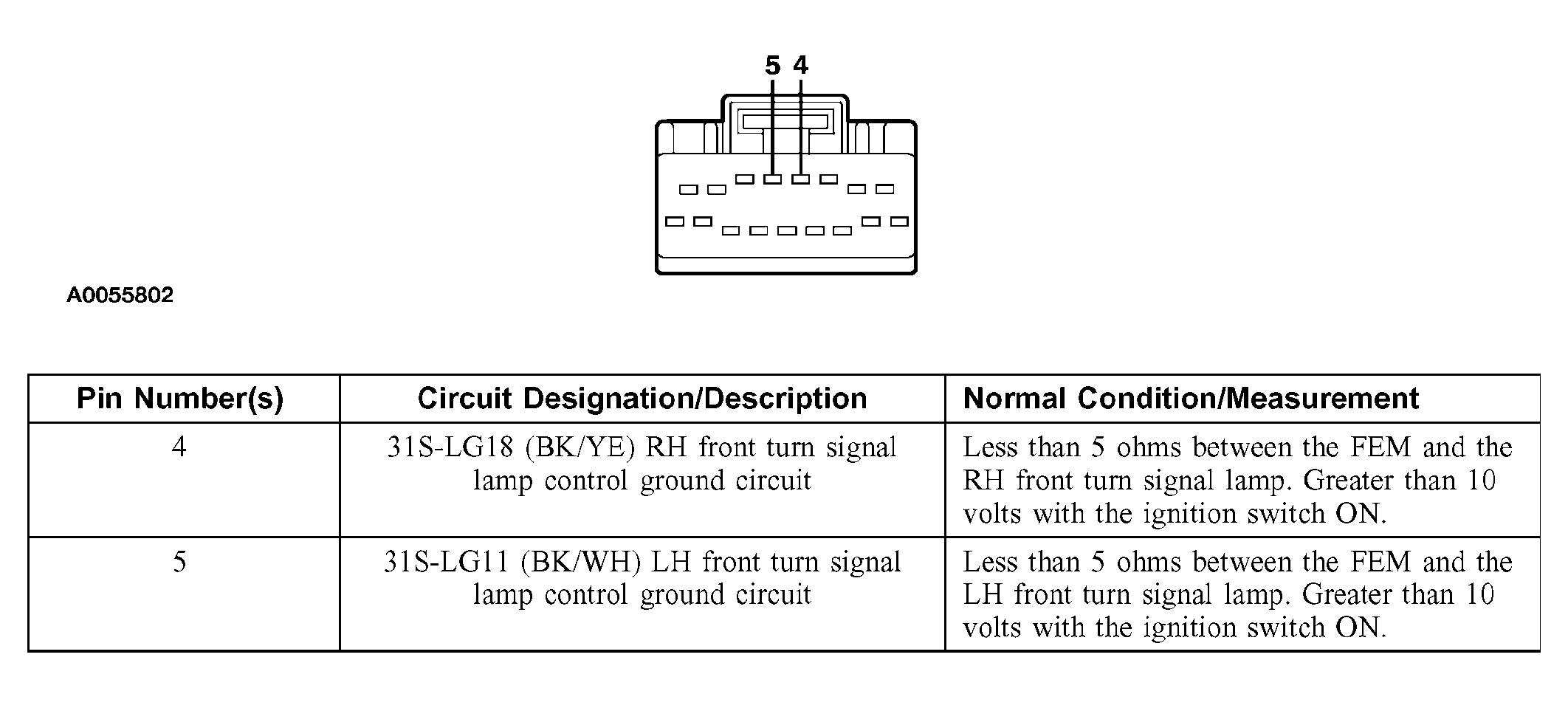

Fig 3: FEM C201A

Courtesy of FORD MOTOR CO.

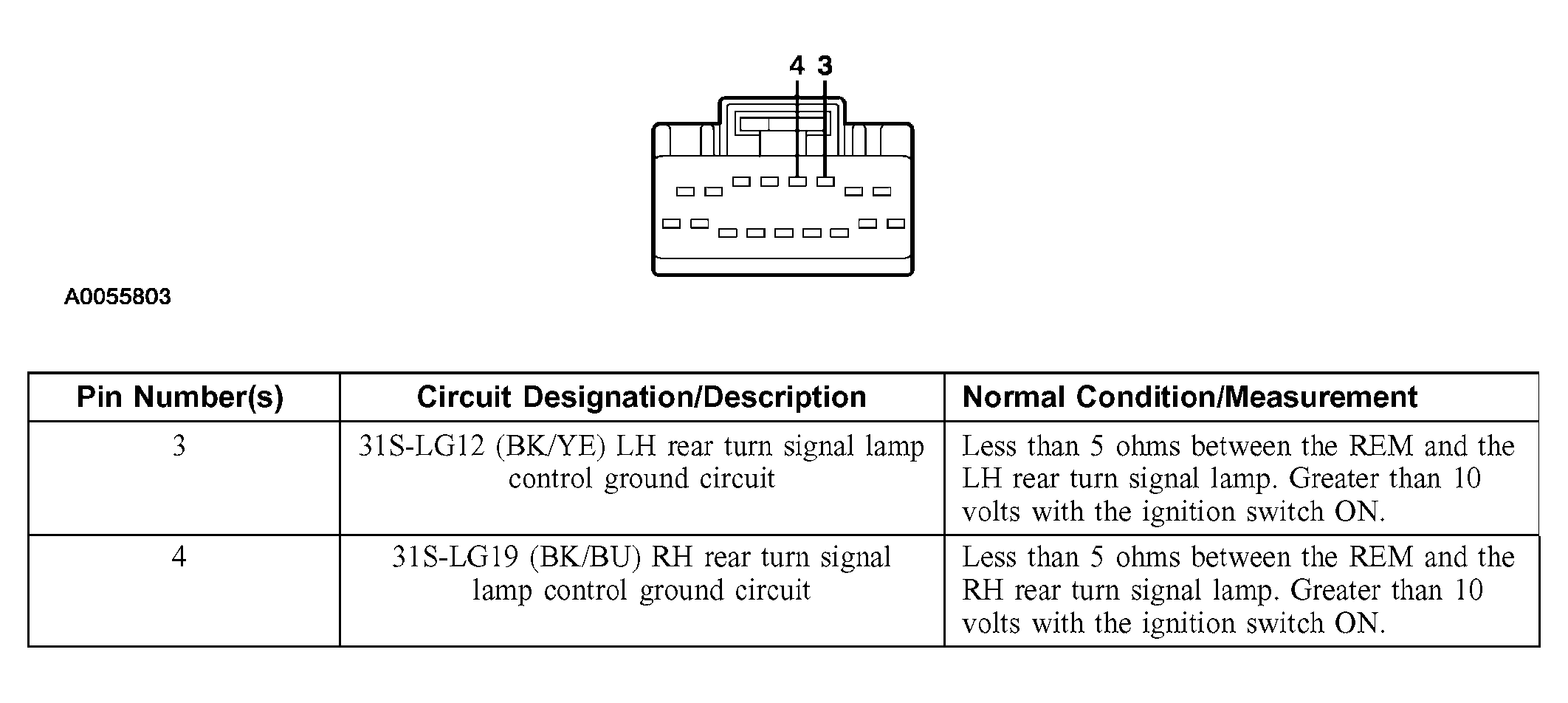

Fig 4: REM C420E

Courtesy of FORD MOTOR CO.

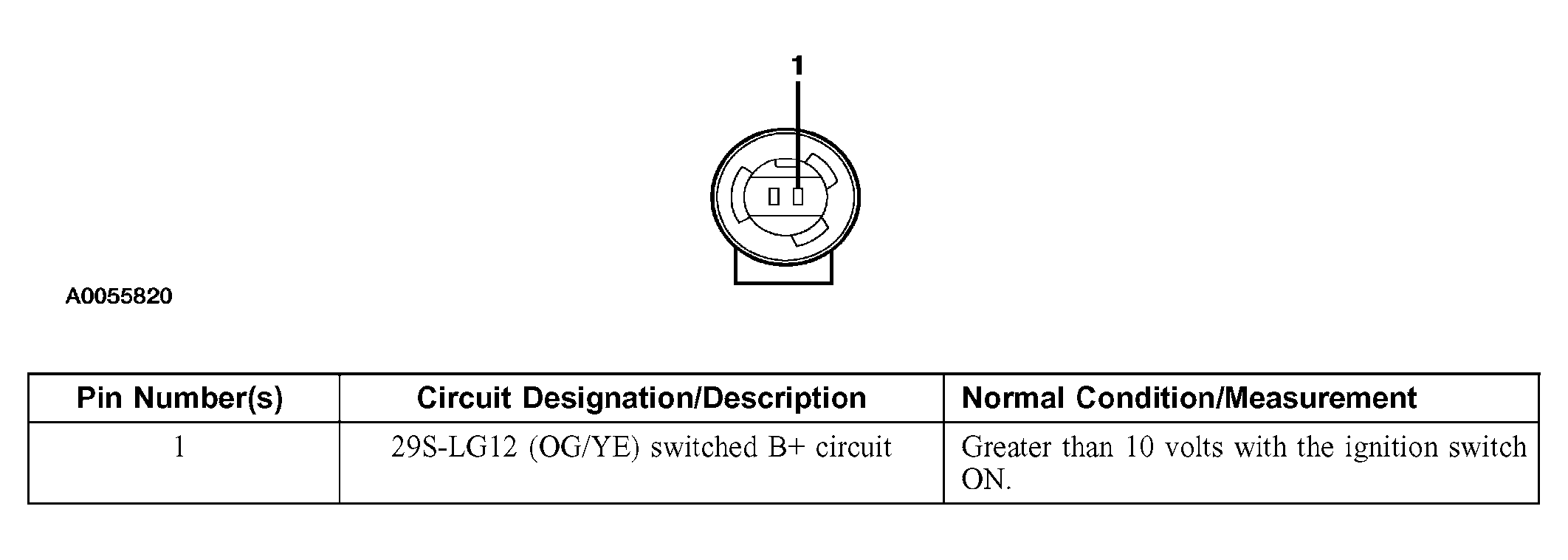

Fig 5: LH Front Turn Signal Lamp C1023, RH Front Turn Signal Lamp C1043

Courtesy of FORD MOTOR CO.

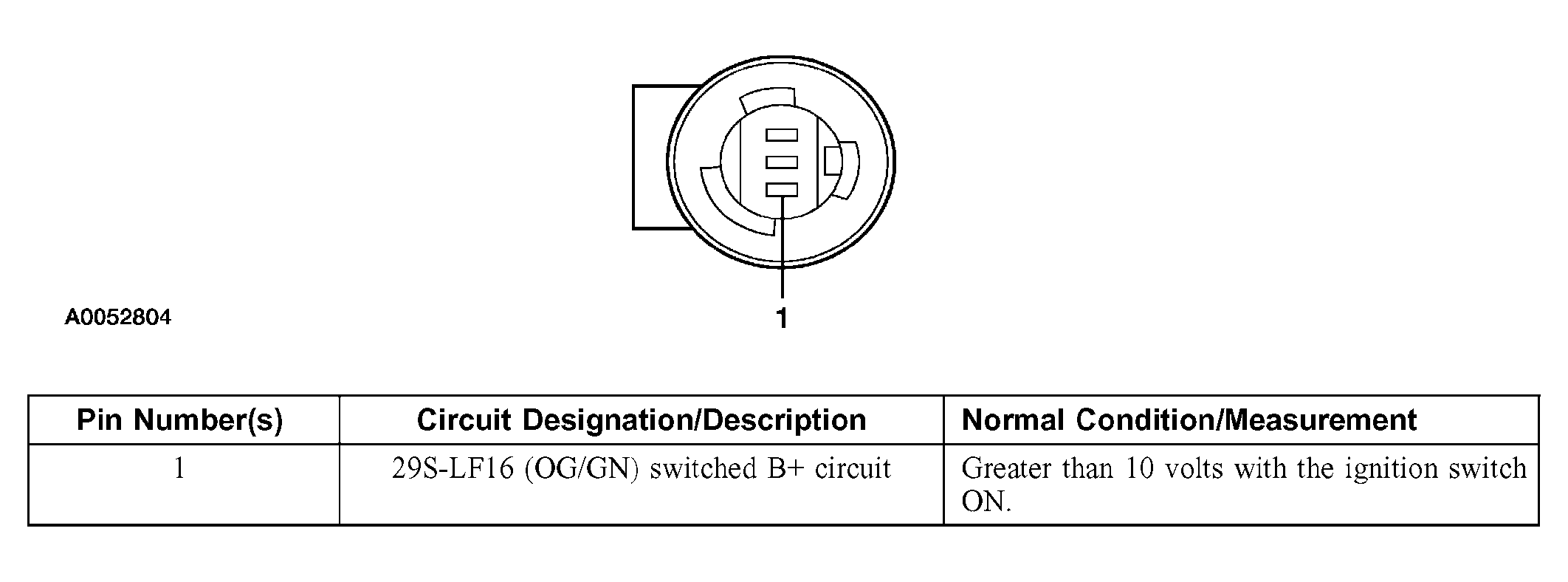

Fig 6: LH Rear Turn Signal Lamp C413, RH Rear Turn Signal Lamp C416

Courtesy of FORD MOTOR CO.
