Restraints Control Module (RCM): Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: RCM mounting bolts that are not properly tightened may result in air bag system malfunction. Improper air bag system operation may result. Ensure RCM mounting bolts are tightened to specification. See TORQUE SPECIFICATIONS  .
  1. Position RCM in vehicle and install mounting bolts. Tighten RCM mounting bolts to specification. See TORQUE SPECIFICATIONS  . Connect RCM electrical connectors. Connect negative battery cable. With air bag simulators installed at all deployable air bag system devices, perform system operation check. See SYSTEM OPERATION CHECK  . Disconnect negative battery cable. Wait at least one minute for back-up power supply to deplete stored energy.
  2. To complete installation, reverse removal procedure. Activate air bag system. See ACTIVATING SYSTEM  under DISABLING & ACTIVATING AIR BAG SYSTEM.

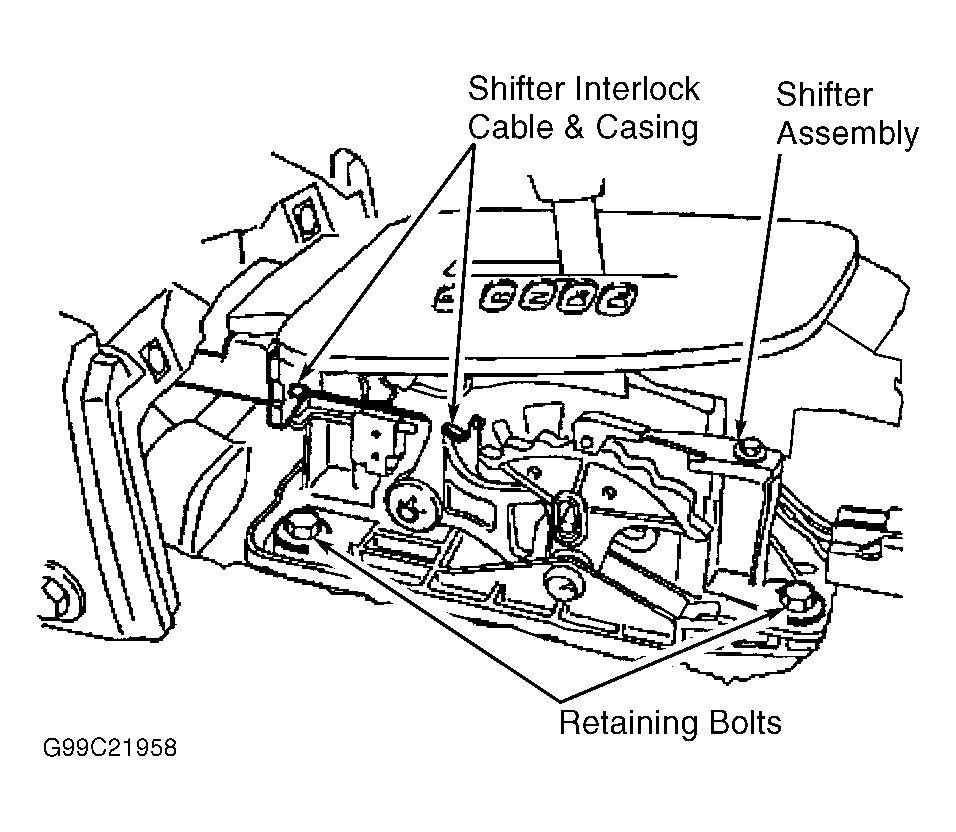

Fig 1: Identifying Automatic Transmission Shifter Assembly
G99C21958Courtesy of FORD MOTOR CO.

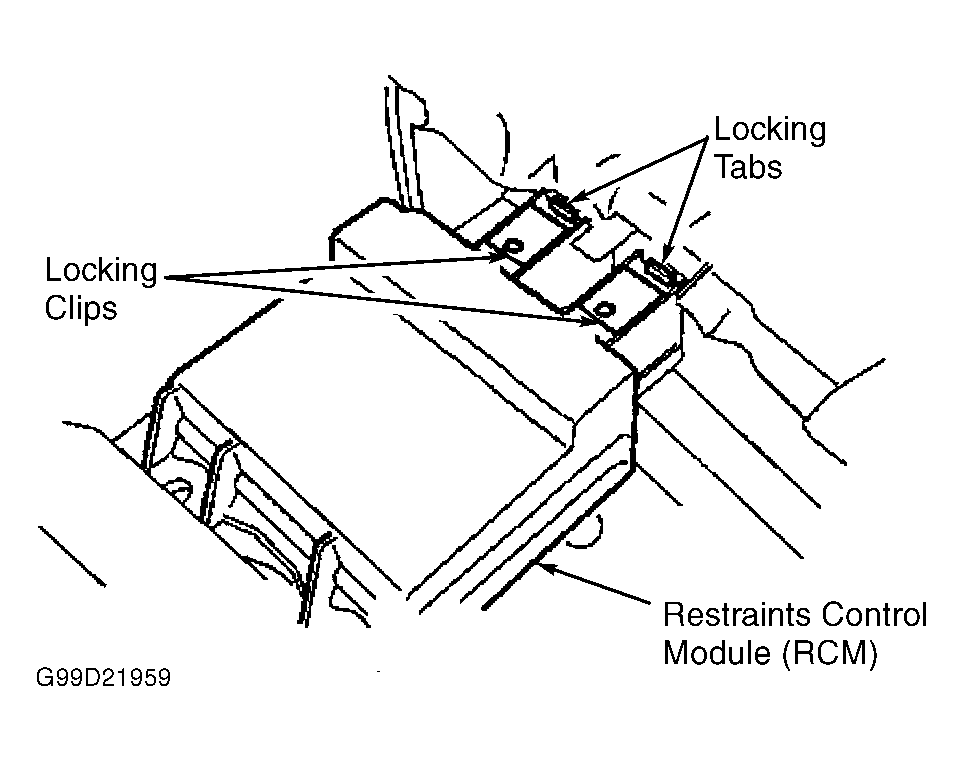

Fig 2: Disconnect Restraints Control Module (RCM) Harness Connectors
G99D21959Courtesy of FORD MOTOR CO.
