General Activation Procedure (Seats Installed)

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable. Wait at least one minute for back-up power supply to deplete stored energy. Remove air bag simulators from left and right front seat belt pretensioner harness connectors and reconnect connectors. Install left and right B-pillar trim panels and weatherstripping. Install left and right door scuff plates.
  2. Remove air bag simulators from left and right side air bag module harness connector and reconnect connectors. Connect negative battery cable. Move and tilt front seats to their lowest and most rearward position. Disconnect negative battery cable and wait at least one minute for back-up power supply to deplete stored energy. Remove air bag simulator from passenger-side air bag module harness connector and reconnect connector.
  3. Remove air bag simulator from upper clockspring connector and install driver-side air bag module. Reconnect negative battery cable. Perform system operation check. See SYSTEM OPERATION CHECK  . Reprogram pre-set radio frequencies and set clock.

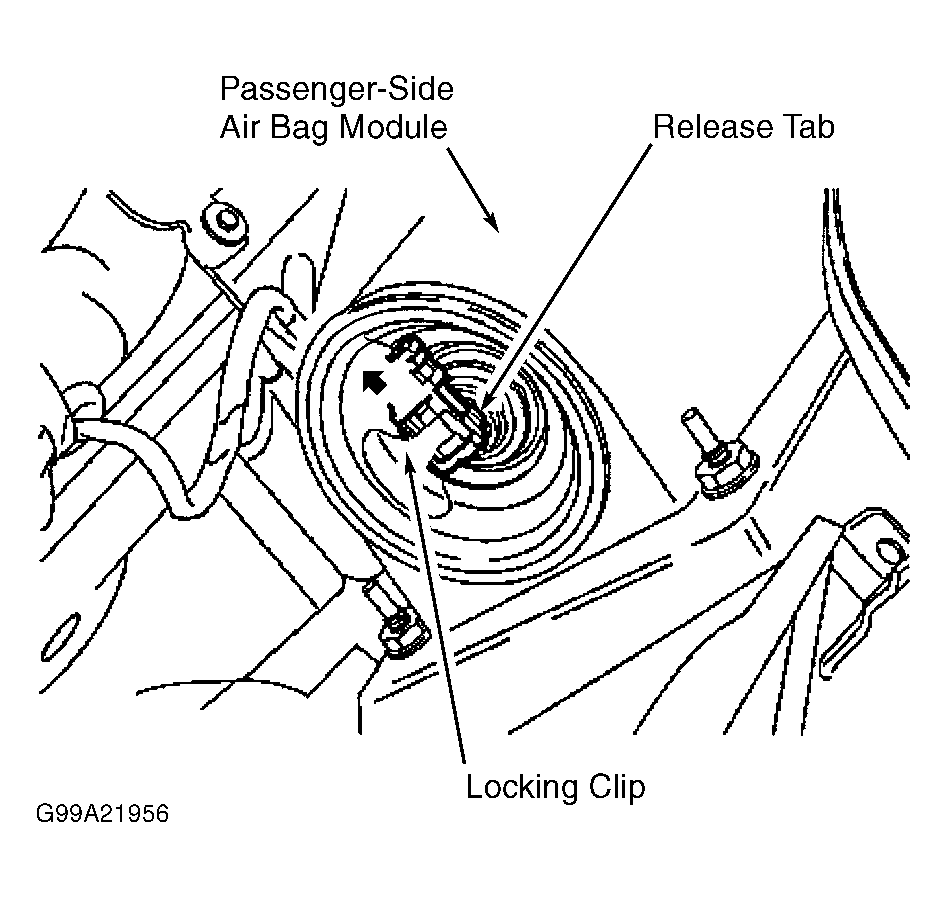

Fig 1: Disconnecting Passenger-side Air Bag Module
G99A21956Courtesy of FORD MOTOR CO.
