Component Locations
WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

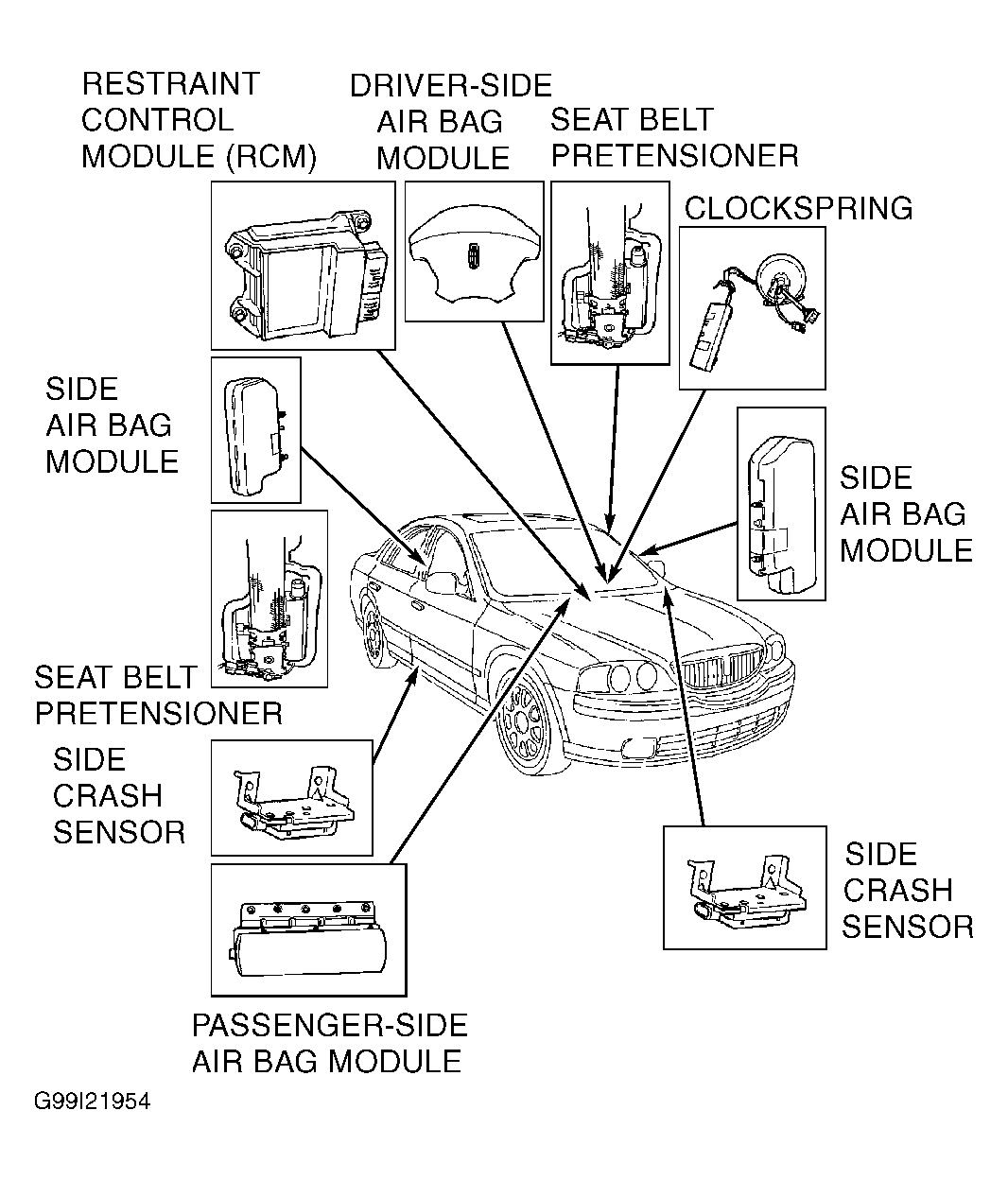

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Clockspring | On steering column, behind steering wheel | ||
| Driver-side air bag module | Center of steering wheel | ||
| Passenger-side air bag module | Right side of instrument panel, above glove box | ||
| Restraints Control Module (RCM) | Under center console | ||
| Seat belt pretensioner | Part of retractor assembly, under lower B-Pillar trim panel | ||
| Side air bag crash sensors | On floor, under outboard side of front seats | ||
| Side air bag modules | Behind outboard bolster of front seat backs | ||
|
|||
