Fluid Leakage In Torque Converter Area
WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Leakage at the front of the transmission, as evidenced by fluid around the torque converter housing part of the case, may have several sources. By careful observation, it is possible in many instances to pinpoint the source of the leak before removing the transmission from the vehicle.

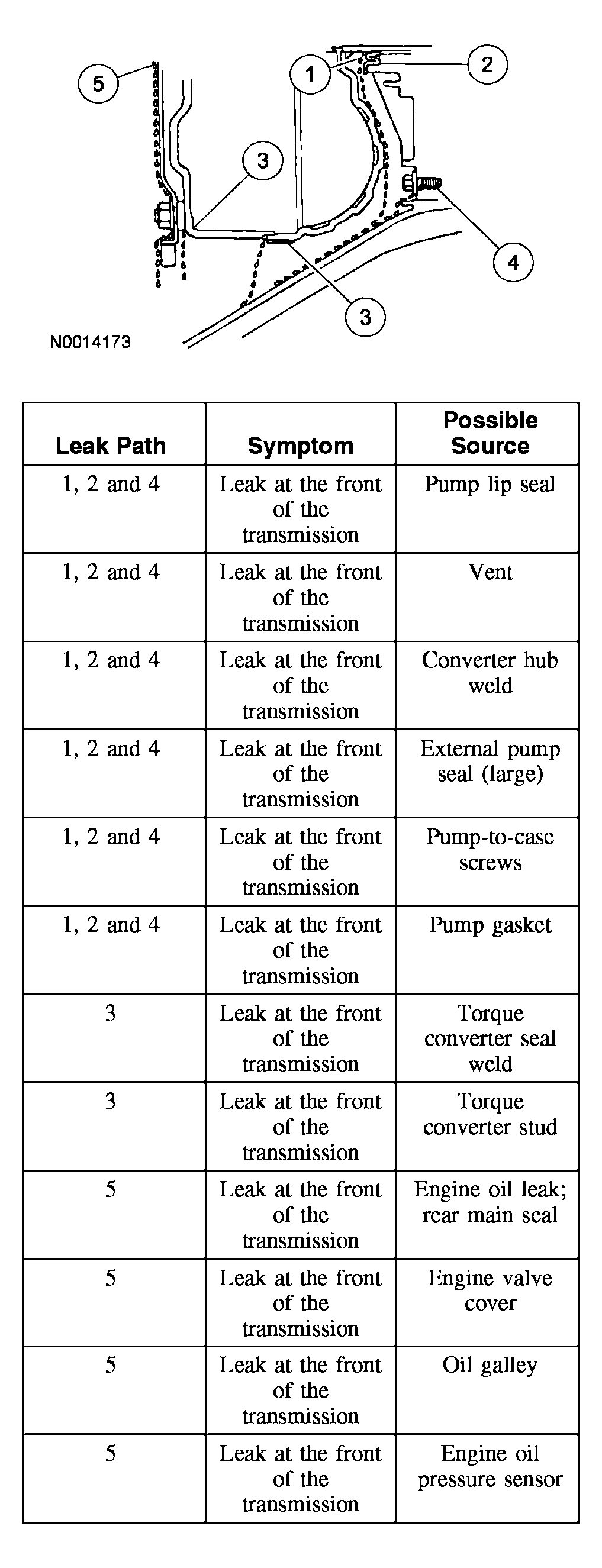

The paths, which the fluid takes to reach the bottom of the torque converter housing part of the case, are shown in the illustration. The 5 numbers in the illustration correspond with the 5 flow path steps.
