Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 front bumper cover scrivets.
  2. Remove the 2 front bumper cover bolts.
  3. Remove the 3 front bumper cover lower retainers.

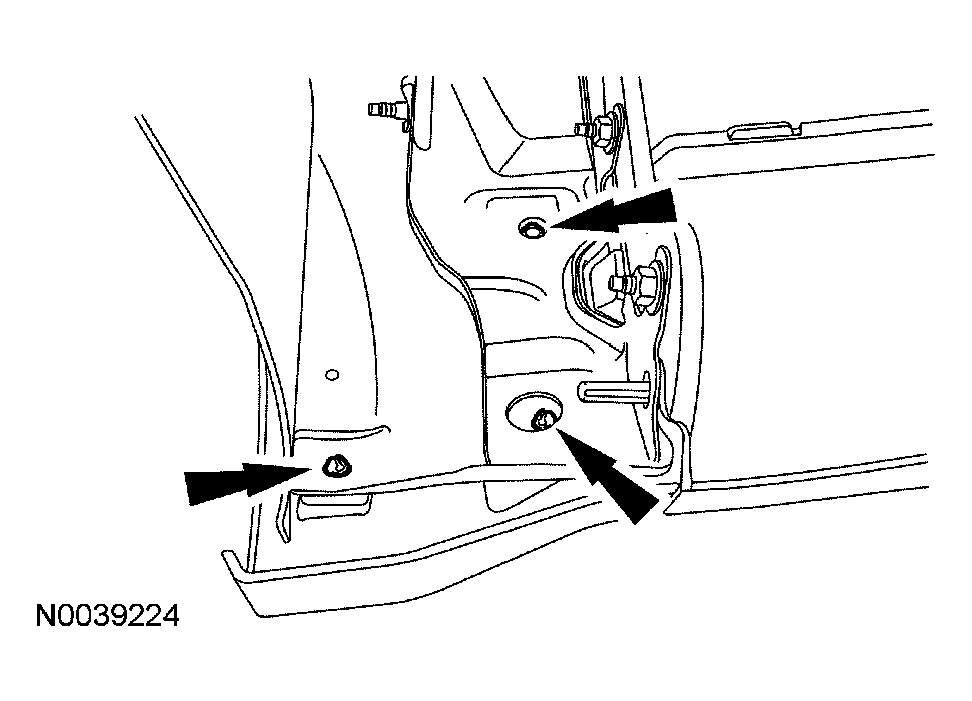

    Fig 1: Removing Front Bumper Cover Lower Retainers
    G03989371Courtesy of FORD MOTOR CO.
  4. Release the 6 lower wheel lip molding scrivets from the LH and RH wheel lip moldings.
  5. If equipped, disconnect the fog lamps electrical connector.
  6. Remove the 6 front bumper cover nuts.
    • To install, tighten to 7 Nm (62 lb-in).
  7. Release the LH and RH wheel lip molding tabs, and remove the front bumper cover.

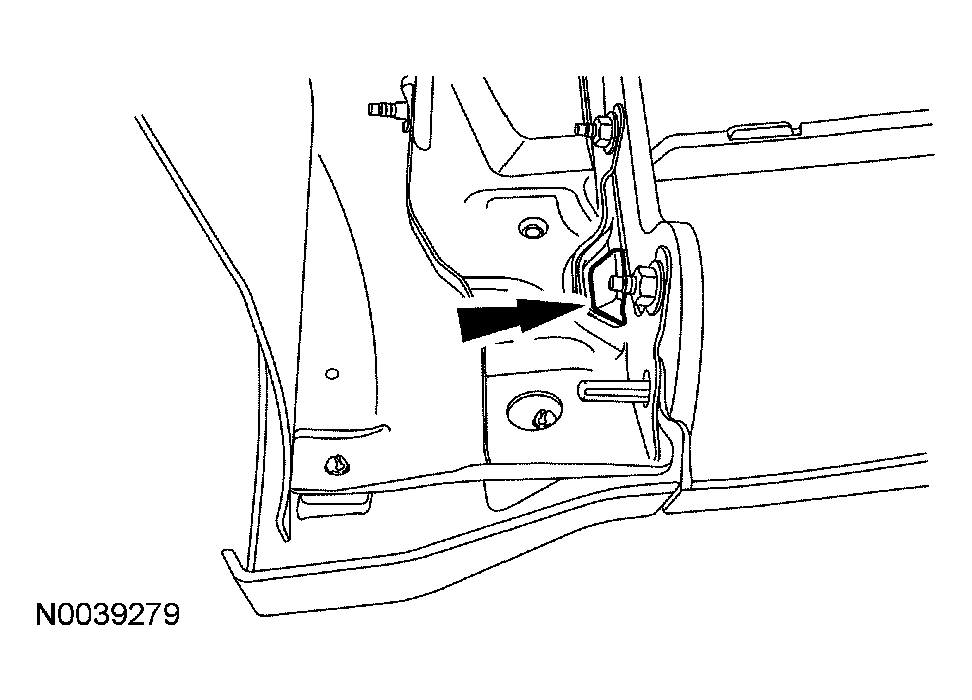

    Fig 2: Removing Front Bumper Cover (Freestyle)
    G03989372Courtesy of FORD MOTOR CO.
  8. To install, reverse the removal procedure.
