Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

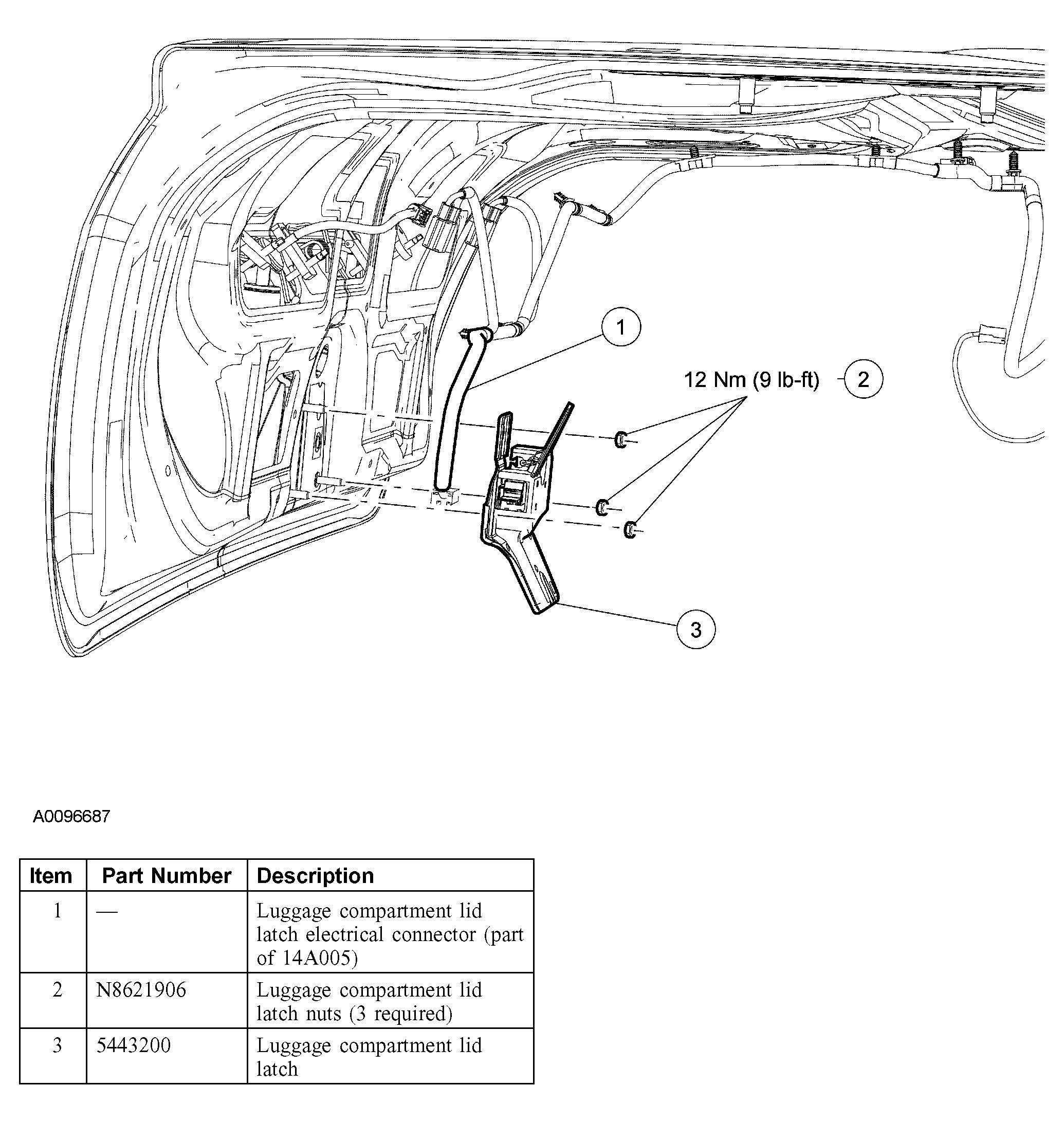

Fig 1: Removing/Installing Luggage Compartment Lid Latch
G03989267Courtesy of FORD MOTOR CO.
  1. Remove the luggage compartment lid trim cover.
  2. Disconnect the luggage compartment lid latch electrical connector.

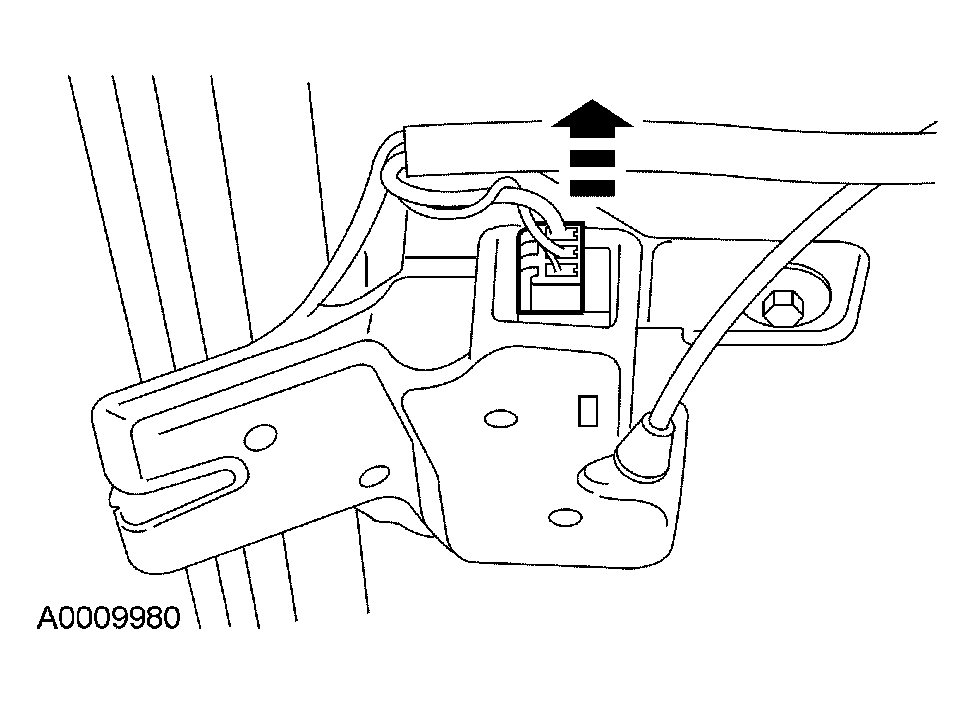

    Fig 2: Disconnecting Luggage Compartment Lid Latch Electrical Connector
    G03989268Courtesy of FORD MOTOR CO.
  3. Remove the 3 nuts and the luggage compartment lid latch.
    • To install, tighten to 12 Nm (9 lb-ft).
  4. To install, reverse the removal procedure.
