Power Transfer Unit (PTU) Seal - RH: Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Make sure the PTU oil seal, the PTU seal bore and the halfshaft are clean and dry. Do not apply any lubricant to the outer diameter of the PTU oil seal or leakage will occur.
    NOTE: Always install a new PTU oil seal.

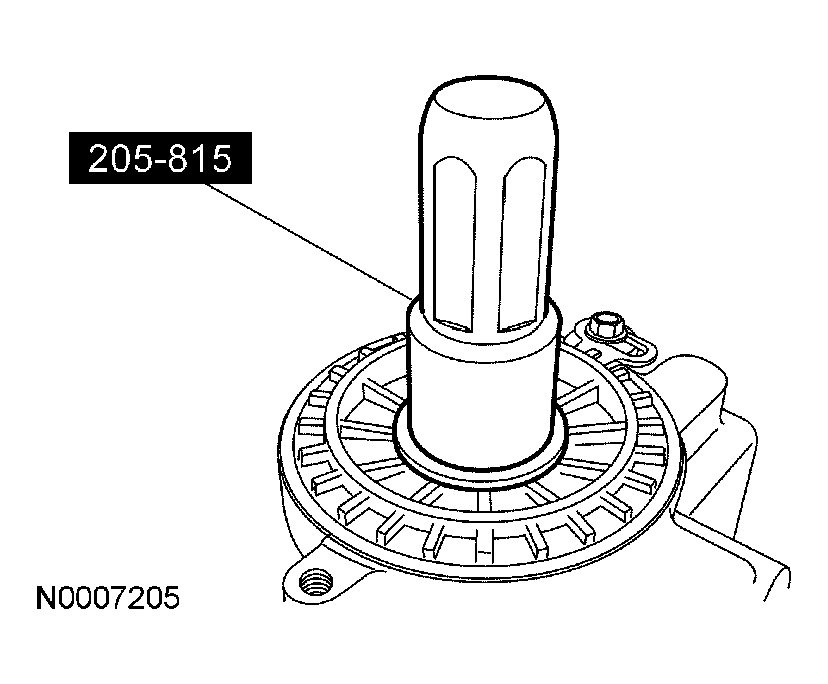

    Fig 1: Installing PTU Oil Seal
    G03992046Courtesy of FORD MOTOR CO.
  1. Using the special tool, install a new PTU oil seal.
    2. NOTE: Always install a new PTU dust seal.
  2. Install a new PTU dust seal.
    3. NOTE: For fluid leak or seep condition, install a new vent cap and filter.
  3. Install a new vent cap and filter.
  4. Install the RH halfshaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
