Torque Specifications
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2001 Ford Pickup, 2001 Ford Expedition, 2001 Ford Econoline, 2000 Ford Pickup, and 2000 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| Camshaft Sprocket Bolt |
82-95 (110-130) |
| Connecting Rod Bolt |
| Step 1 |
15-18 (20-25) |
| Step 2 |
30-33 (41-45) |
| Step 3 |
Additional 90-120 Degrees |
| Crankshaft Damper Bolt |
| Step 1 |
66 (90) |
| Step 2 |
Loosen 360 Degrees |
| Step 3 |
35-39 (47-53) |
| Step 4 |
Additional 85-90 Degrees |

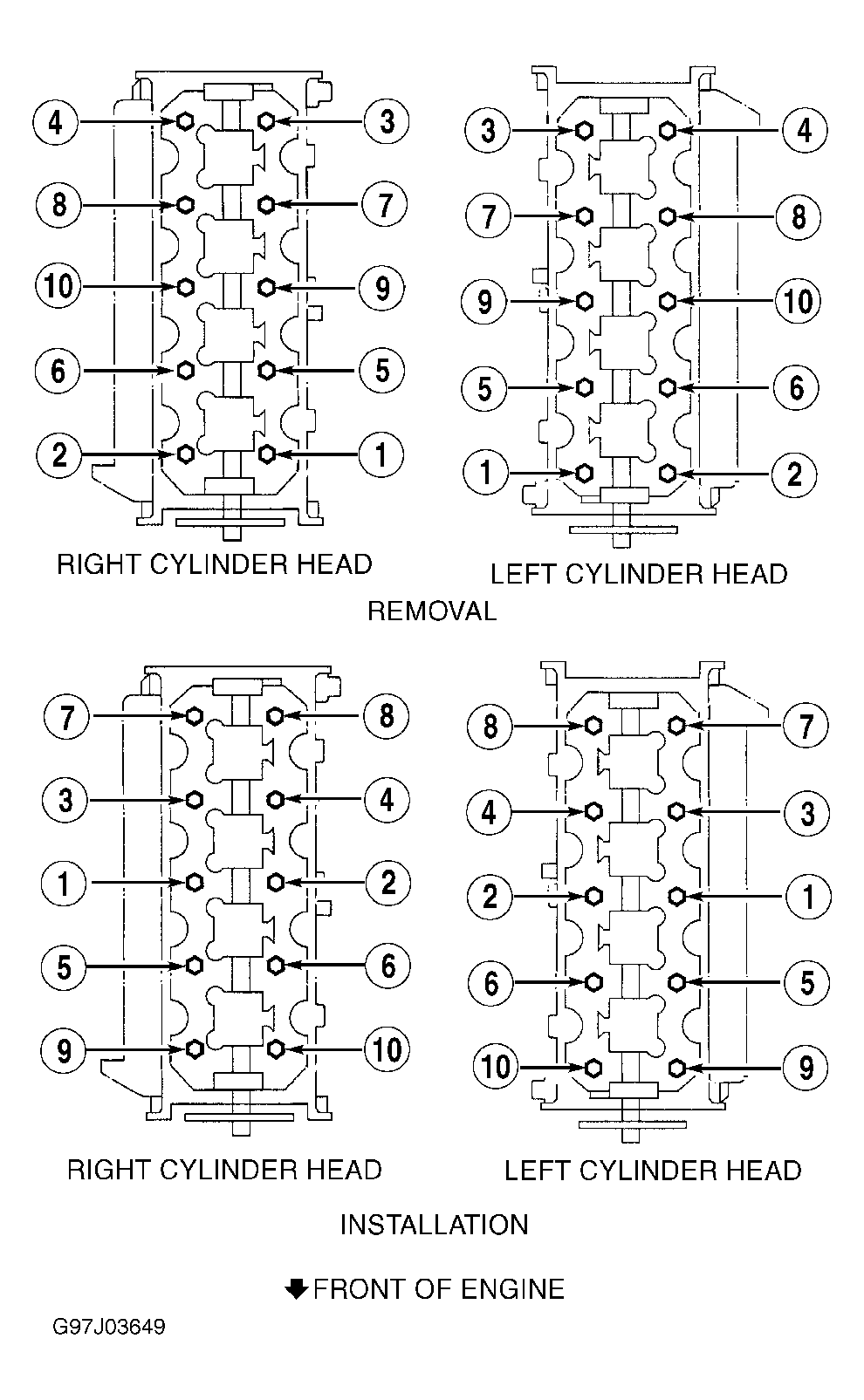

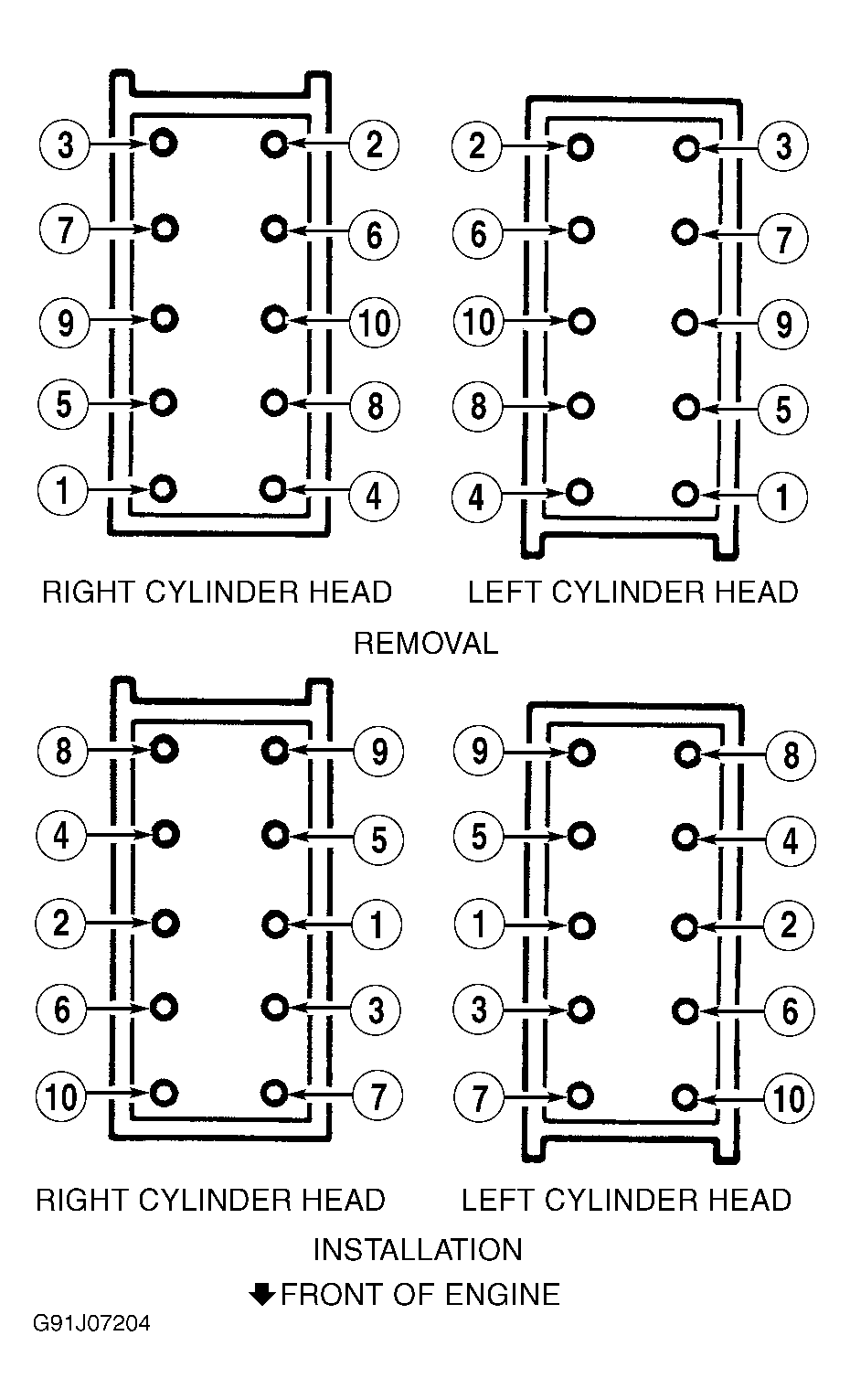

| Cylinder Head Bolt |
| Step 1 |
28-31 (37-43) |
| Step 2 |
Additional 85-95 Degrees |
| Step 3 |
Loosen 360 Degrees |
| Step 4 |
28-31 (37-43) |
| Step 5 |
Additional 85-95 Degrees |
| Step 6 |
Additional 85-95 Degrees |
| EGR Tube Fitting-To-Exhaust Manifold |
33-48 (45-65) |
| EGR Tube-To-Exhaust Manifold |
26-33 (35-45) |
| EGR Valve-To-Intake Manifold Bolt |
15-22 (20-30) |
| Engine Mount Through Bolt |
15-22 (20-30) |
| Engine-To-Transmission Bolts |
30-44 (41-60) |
| Exhaust Manifold Bolt |
17-20 (23-27) |
| Flexplate-To-Crankshaft Bolt |
54-64 (73-87) |
| Front Cover Bolt/Stud |
| Romeo Engine |
15-22 (20-30) |
| Windsor Engine |
| Bolts 1-5 |
15-22 (20-30) |
| Bolts 6-15 |
29-40 (39-54) |

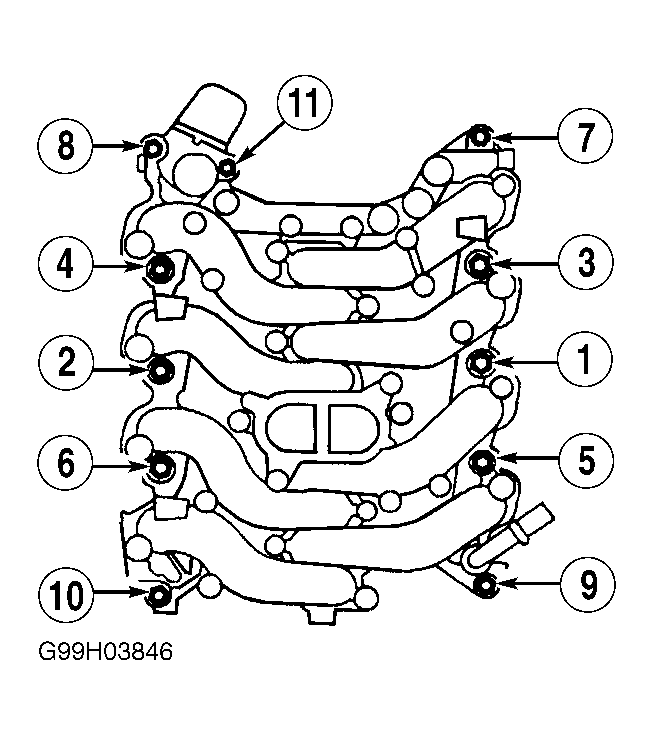

| Intake Manifold Bolt |
15-22 (20-30) |

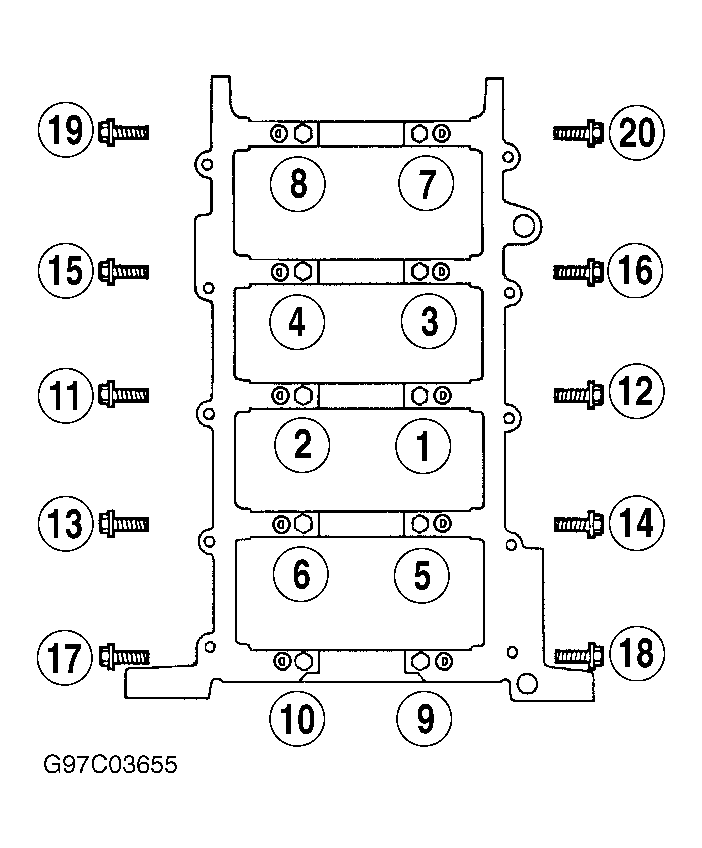

| Main Bearing Cap Bolt |
| Step 1 |
27-32 (37-43) |
| Step 2 |
Additional 85-95 Degrees |

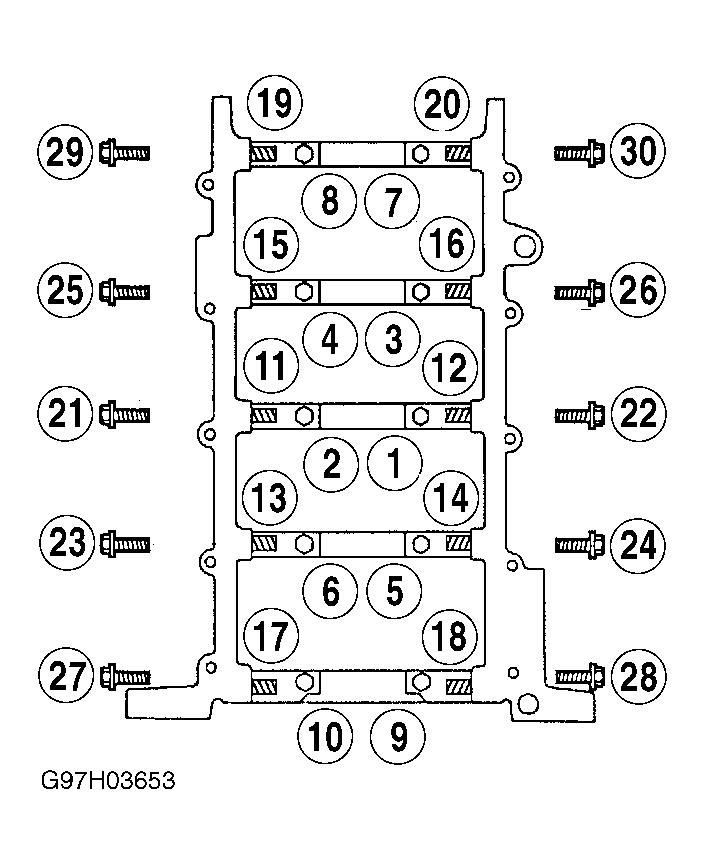

| Main Bearing Cap Side Bolt |
| Romeo Engine |
| Step 1 |
|
| Step 2 |
14-17 (19-23) |
| Windsor Engine |
| Step 1 |
20-24 (27-33) |
| Step 2 |
Additional 85-95 Degrees |

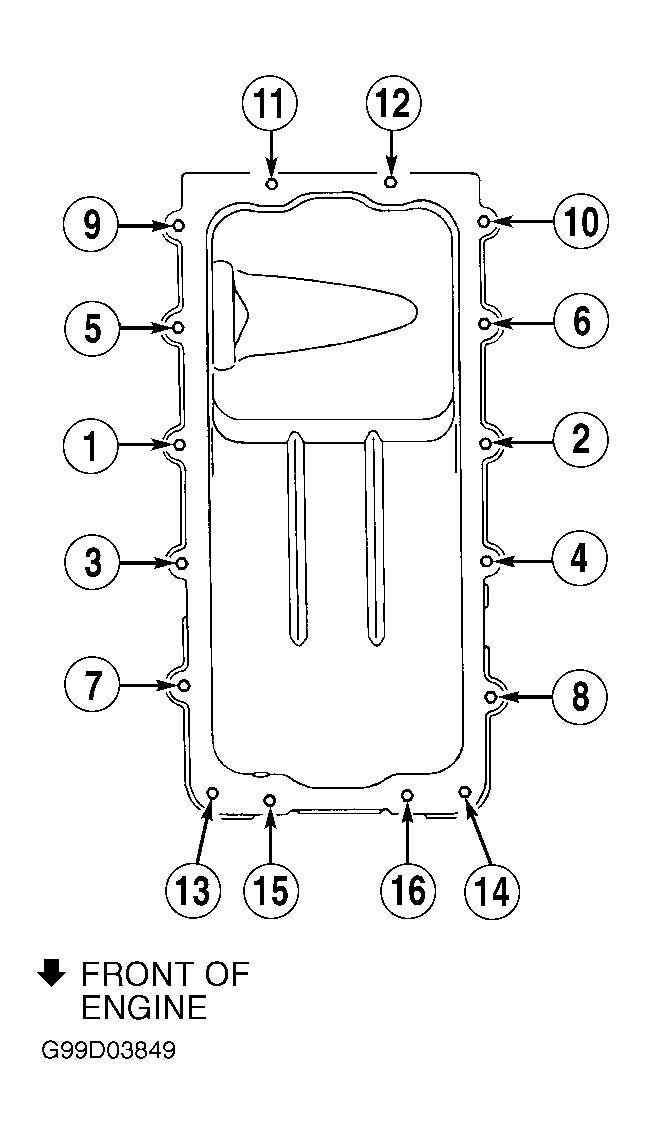

| Oil Pan Bolt |
| Step 1 |
|
| Step 2 |
15 (20) |
| Step 3 |
Additional 60 Degrees |
| Oxygen Sensor |
27-33 (37-45) |
| Pick-Up Tube-To-Main Bearing Cap Nut |
15-22 (20-30) |
| Power Steering Pump-To-Mount Nut |
15-22 (20-30) |
| Thermostat Housing Bolt |
15-22 (20-30) |
| Timing Chain Tensioner Bolt |
15-22 (20-30) |
| Torque Converter Nut |
23-25 (30-35) |
| Water Pump Bolt |
15-22 (20-30) |
| Water Pump Pulley Bolt |
15-22 (20-30) |
| INCH Lbs. (N.m) |
| Camshaft Cap Bolt |
71-106 (8-12) |
| Camshaft Cover Bolt |
71-106 (8-12) |
| Chain Guide Bolt |
71-106 (8-12) |
| Crankshaft Seal Retainer Bolt |
71-106 (8-12) |
| Fuel Pressure Regulator Bolt |
27-35 (3-4) |
| Fuel Rail Bolt |
71-106 (8-12) |
| Main Bearing Cap Jack Screw |
80-97 (9-11) |
| Oil Pump-To-Cylinder Block Bolt |
71-106 (8-12) |
| Pick-Up Tube-To-Oil Pump Bolt |
71-106 (8-12) |
| Throttle Body Bolt |
71-106 (8-12) |
| Upper Intake Manifold-To-Lower Intake Manifold Bolt |
| Step 1 |
18 (2) |
| Step 2 |
71-106 (8-12) |
| Valve Cover Bolt |
71-106 (8-12 ) |
