Removal and Installation
WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

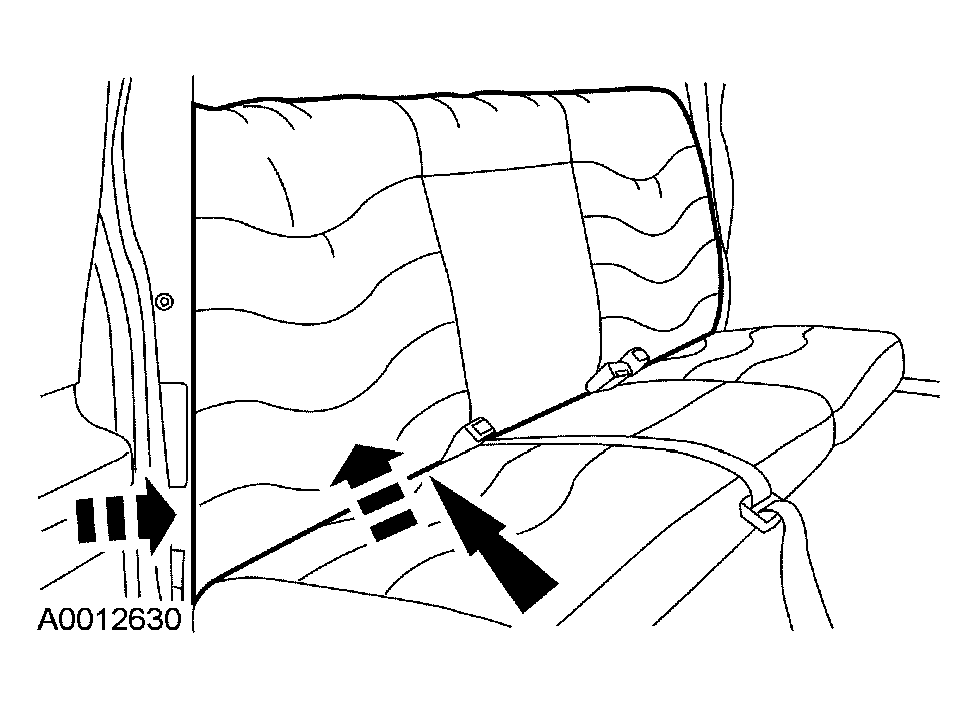

- From the bottom of the seat backrest, push the seat backrest upward, then pull the bottom outward and remove from the vehicle.
- Position the front seat(s) forward.
Crew Cab vehicles
- Position the rear seats forward.
- Remove the bolt and the child safety seat tether anchor.
- Remove the bolt and the child safety seat tether anchor.
- To install, reverse the removal procedure.
- See the REMOVAL PROCEDURE or SPECIFICATIONS for torque specifications.
- For SuperCab, after seat backrest installation, make sure the child safety seat tether anchor strap is accessible and not trapped between the seat backrest and cab back panel.
- Check the active restraint system for correct operation.
SuperCab vehicles
Regular cab vehicles
Regular and Crew Cab vehicles
NOTE:
RH side shown, all others similar.
SuperCab vehicles
NOTE:
RH side shown, all others similar.
All vehicles
WARNING:
It is important that the bolt/anchor be securely tightened to specification. Otherwise, the child's safety seat may not be correctly secured, and the child can be injured in case of a sudden stop or accident.
