Disassembly and Assembly

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All seats

Remove the 60/40 rear seat. For additional information, refer to REAR SEAT - 60/40, CREW CAB in this article.
Remove the 60 percent or 40 percent backrest. For additional information, refer to REAR SEAT BACKREST - 60/40, CREW CAB in this article.
Remove the head restraint.
1. Pull the head restraint out to end of travel. Press the release button and pull the head restraint rod past its stop position.
2. Using a flat-bladded screwdriver, press the release tab on the second head restraint rod guide and pull the head restraint free of the seat back.

  Fig 1: Pulling Head Restraint Free Of Seat Back
  Courtesy of FORD MOTOR CO.

NOTE: The LH and RH head restraint sleeves are not interchangeable. Note location for installation.

Using an appropriate pry tool, press in the release tab and remove the head restraint rod sleeves.
- Release tab is located beneath the head restraint release tab.

  Fig 2: Identifying Head Restraint Sleeve (Rod Guide)
  Courtesy of FORD MOTOR CO.
Remove the backrest recliner handle clip and remove the handle.

Fig 3: Removing Backrest Recliner Handle Clip
Courtesy of FORD MOTOR CO.

60 percent seat

NOTE: When removing the bolts, make sure to retain the washers from behind the armrest swivel arms.

Fig 4: Removing Four Armrest Bolts - With Torque Specifications

Courtesy of FORD MOTOR CO.

Remove the four armrest bolts (two shown) and remove the armrest assembly.
Remove the two pin-type retainers and remove the plastic insert panel.

Fig 5: Removing Pin-Type Retainers
Courtesy of FORD MOTOR CO.

All seats

Release the J-clip.

Fig 6: Releasing J-Clip
Courtesy of FORD MOTOR CO.
Remove the RH staples.

Fig 7: Removing RH Staples
Courtesy of FORD MOTOR CO.

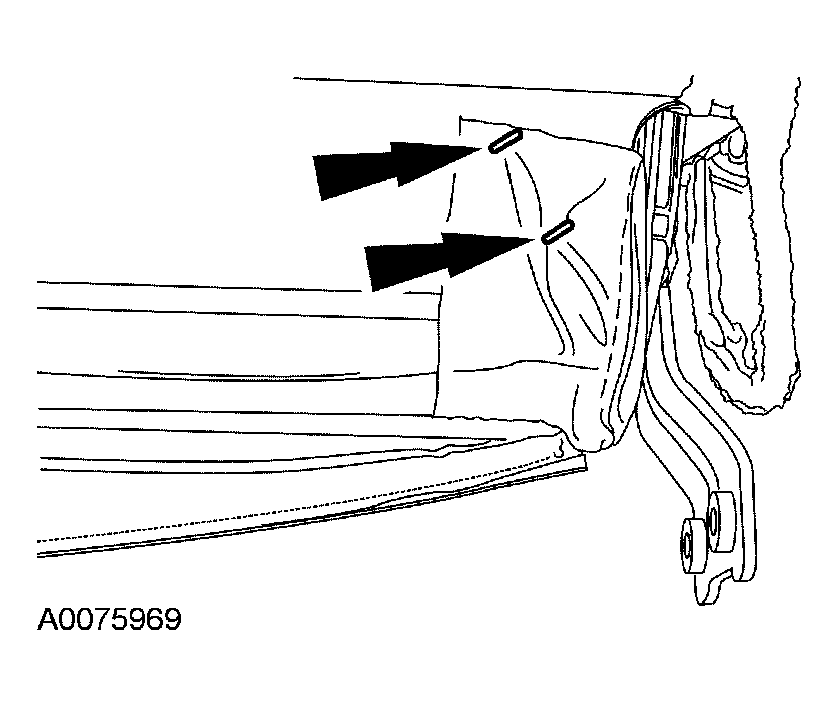

Remove the LH staples.

Fig 8: Removing LH Staples
Courtesy of FORD MOTOR CO.

CAUTION: Use care when separating the seat backrest trim cover from the hook-and-loop strip, or the hook-and-loop strip can be torn from the seat backrest foam.

Fig 9: Releasing Hook-And-Loop Strips

Courtesy of FORD MOTOR CO.

Invert the seat backrest trim cover and release the hook-and-loop strips.
Remove all the hog rings and remove the backrest trim cover.

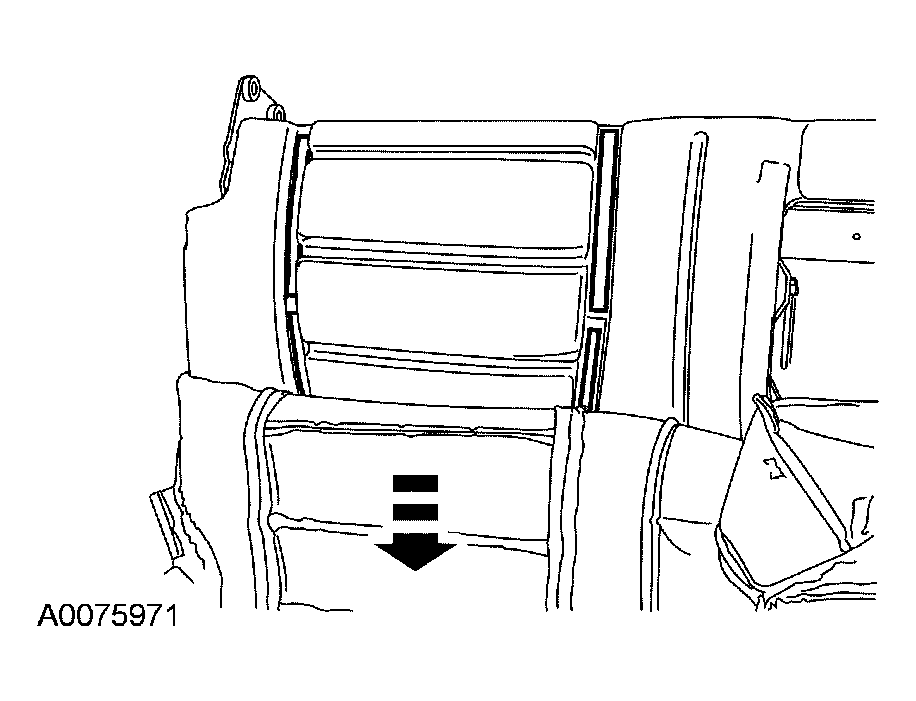

Fig 10: Removing Backrest Trim Cover
Courtesy of FORD MOTOR CO.
Remove the screws and the hardboard panel.

Fig 11: Removing Screws And Hardboard Panel
Courtesy of FORD MOTOR CO.
Remove the foam pad from the backrest frame.

60 percent seat

Release the inboard cable end.
1. Using a suitable tool, pry to release the cable anchor.
2. Swivel the cable end and remove.

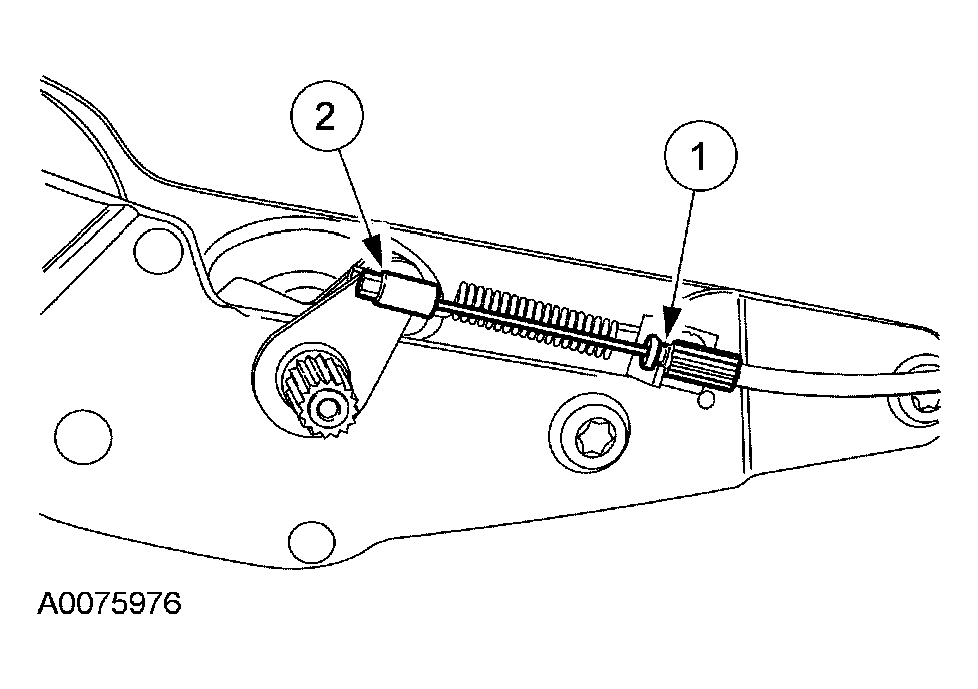

  Fig 12: Releasing Cable Anchor
  Courtesy of FORD MOTOR CO.
Detach all the cable clips (one shown).

Fig 13: Detaching Cable Clips
Courtesy of FORD MOTOR CO.
Release the outboard cable end.
1. Using a suitable tool, pry to release the cable anchor.
2. Swivel the cable end and remove.

  Fig 14: Removing Swivel Cable End
  Courtesy of FORD MOTOR CO.
Remove the outboard backrest latch bolts and remove the latch.

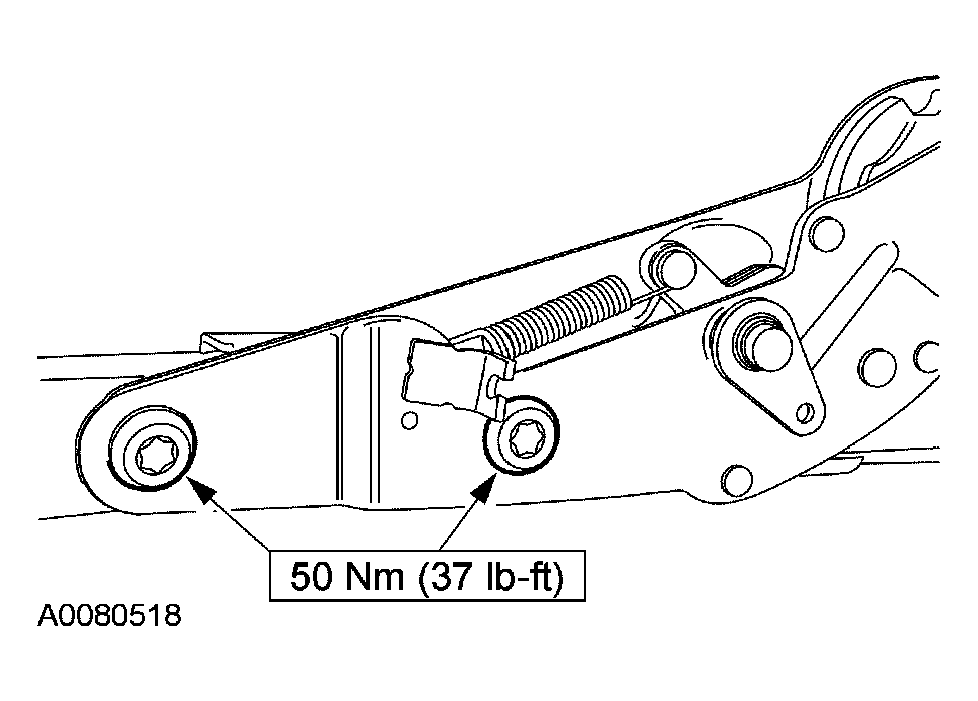

Fig 15: Removing Outboard Backrest Latch Bolts - With Torque Specifications
Courtesy of FORD MOTOR CO.
Remove the inboard backrest latch bolts and remove the latch.

Fig 16: Removing Inboard Backrest Latch Bolts - With Torque Specifications
Courtesy of FORD MOTOR CO.

40 percent seat

NOTE: Use care not to damage the plastic pivot bushing. If damaged, install a new bushing.

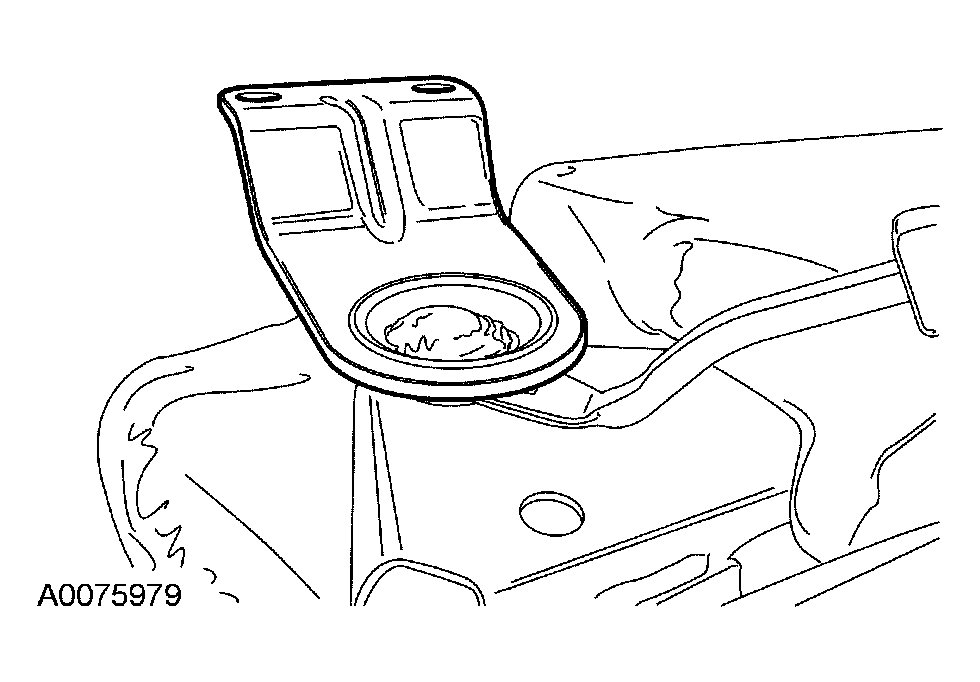

Fig 17: Installing Bushing

Courtesy of FORD MOTOR CO.

Using a suitable tool, carefully pry the inboard backrest bracket from the plastic pivot bushing.
Remove the outboard backrest latch bolts and remove the latch.

Fig 18: Removing Outboard Backrest Latch Bolts - With Torque Specifications
Courtesy of FORD MOTOR CO.

All seats
To assemble, reverse the disassembly procedure.
