Front Seat Cushion - 20 Percent: Disassembly

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seats. For additional information, refer to FRONT SEAT - WITH SEAT INTEGRATED RESTRAINTS (SIR)  or FRONT SEAT - CAPTAIN'S CHAIR AND 40 PERCENT  in this article.
  2. Remove the front seat. For additional information, refer to FRONT SEAT - 20 PERCENT  in this article.
  3. Remove the seat backrest. For additional information, refer to FRONT SEAT BACKREST - 20 PERCENT  in this article.
  4. Remove the seat latch. For additional information, refer to SEAT LATCH - 20 PERCENT  in this article.
  5. Remove the LH seat backrest bracket retaining bolts.
    Fig 1: Removing LH Seat Backrest Bracket Retaining Bolts
    G03911496Courtesy of FORD MOTOR CO.
    6. NOTE: LH shown, RH similar.

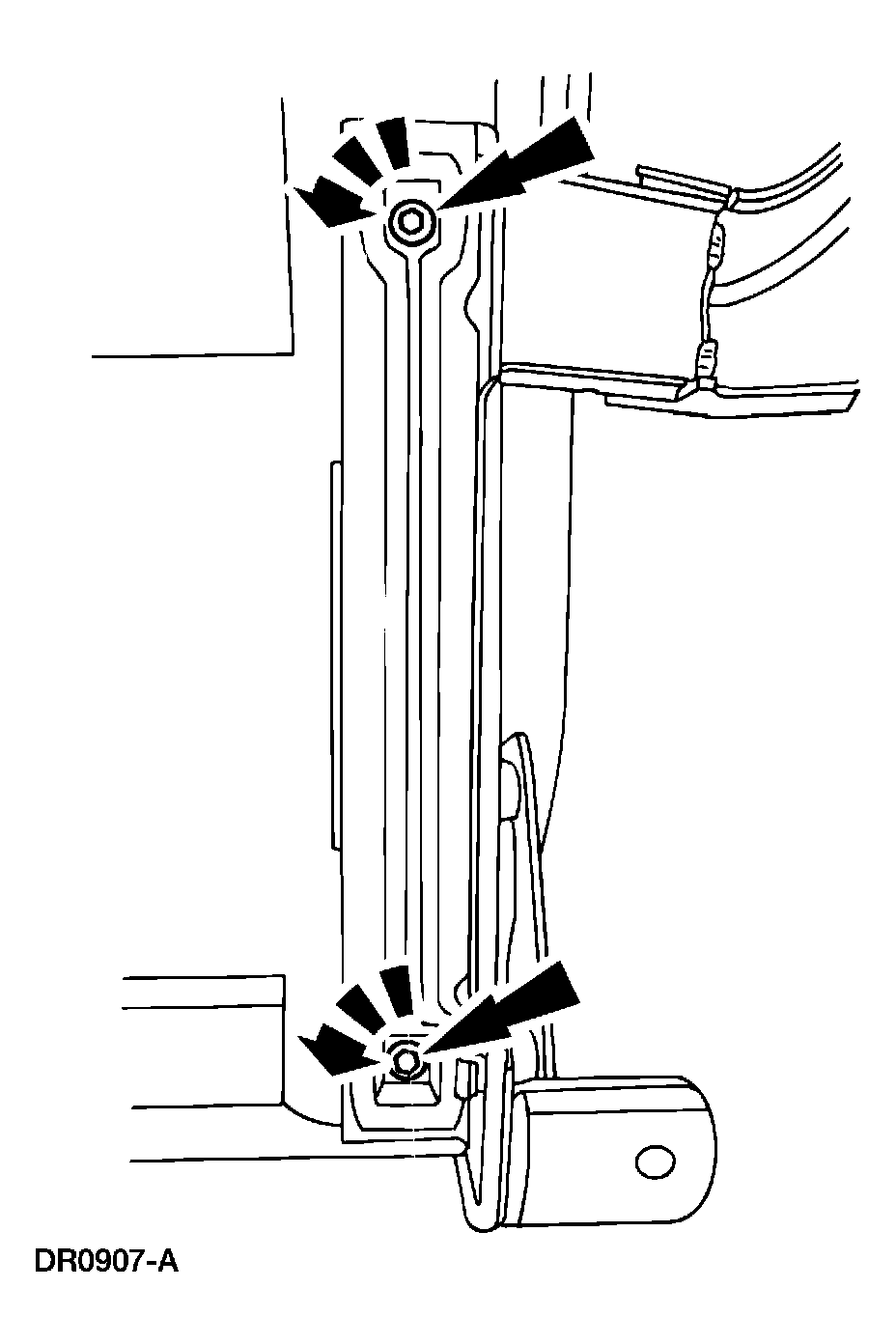

    Fig 2: Removing RH And LH Seat Riser Retaining Bolts
    G03911497Courtesy of FORD MOTOR CO.
  6. Remove the five RH and LH seat riser retaining bolts.
  7. Unfasten the J-clips. Remove the seat cushion foam pad.
    Fig 3: Removing Seat Cushion Foam Pad
    G03911498Courtesy of FORD MOTOR CO.
