Disassembly and Assembly

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front seat bench backrest. For additional information, refer to FRONT SEAT BACKREST - BENCH in this article.

NOTE: LH side shown, RH similar.

Fig 1: Removing Both Recliner Handle Clips

Courtesy of FORD MOTOR CO.

Remove both the recliner handle clips and remove the handles.
Release the J-clip.

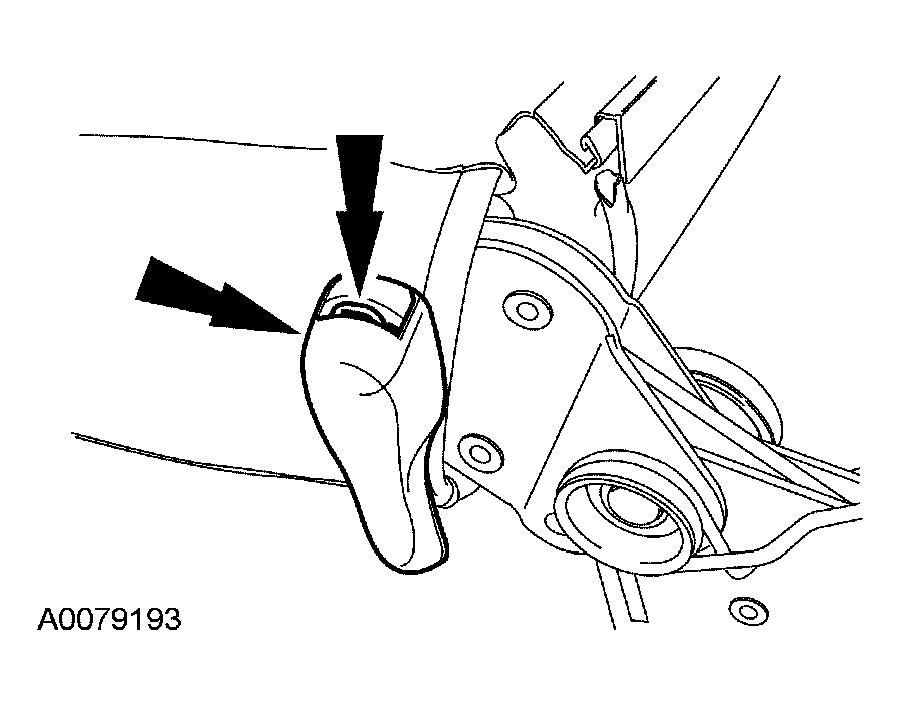

Fig 2: Releasing J-Clip
Courtesy of FORD MOTOR CO.

CAUTION: Use care when separating the seat back trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat back foam.

Fig 3: Releasing First Row Of Hook-And-Loop Strips

Courtesy of FORD MOTOR CO.

Invert the backrest trim cover and release the first row of hook-and-loop strips.

CAUTION: Use care when separating the seat back trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat back foam.

Fig 4: Removing Backrest Trim Cover

Courtesy of FORD MOTOR CO.

Invert the backrest trim cover up and release the second row of hook-and-loop strips and remove the backrest trim cover.
Remove the backrest foam pad from the backrest frame assembly.

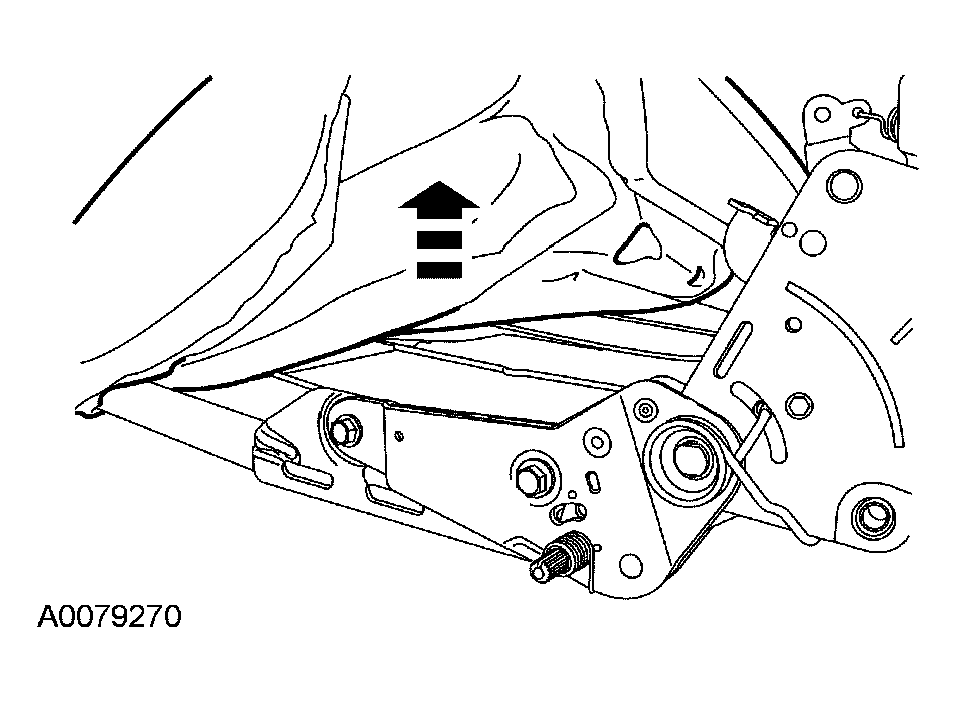

Fig 5: Removing Backrest Foam Pad From Backrest Frame Assembly
Courtesy of FORD MOTOR CO.
Remove the two LH backrest recliner bolts.

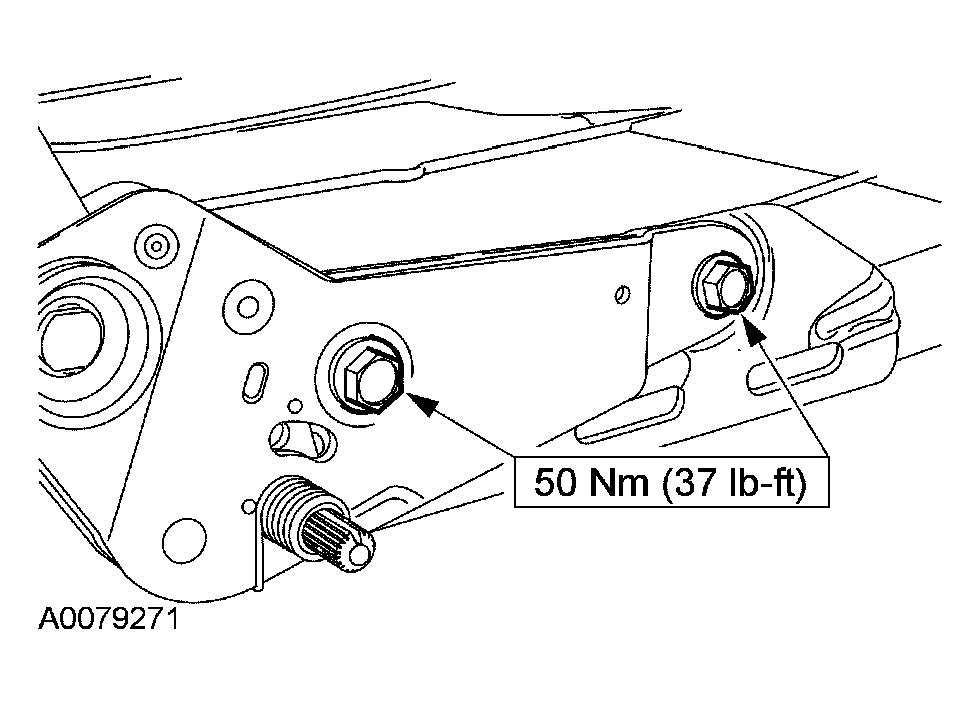

Fig 6: Removing LH Backrest Recliner Bolts - With Torque Specifications
Courtesy of FORD MOTOR CO.

NOTE: During assembly, make sure the recliner latches are seated in the adjusting rod before installing the recliner latch bolts.

Remove the LH recliner latch and adjusting rod.
1. Remove the LH recliner latch from the adjusting rod.
2. Remove the recliner adjusting rod from the RH recliner latch and slide the adjusting rod out of the seat frame tubes.

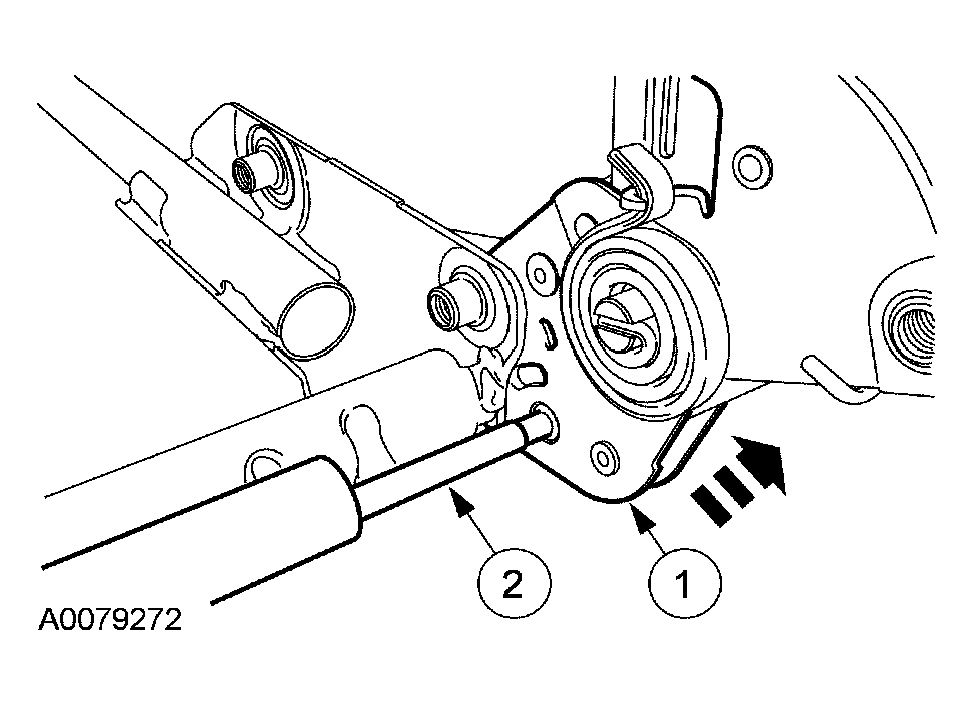

  Fig 7: Removing Recliner Adjusting Rod
  Courtesy of FORD MOTOR CO.
Remove the two RH backrest recliner bolts and remove the recliner latch.

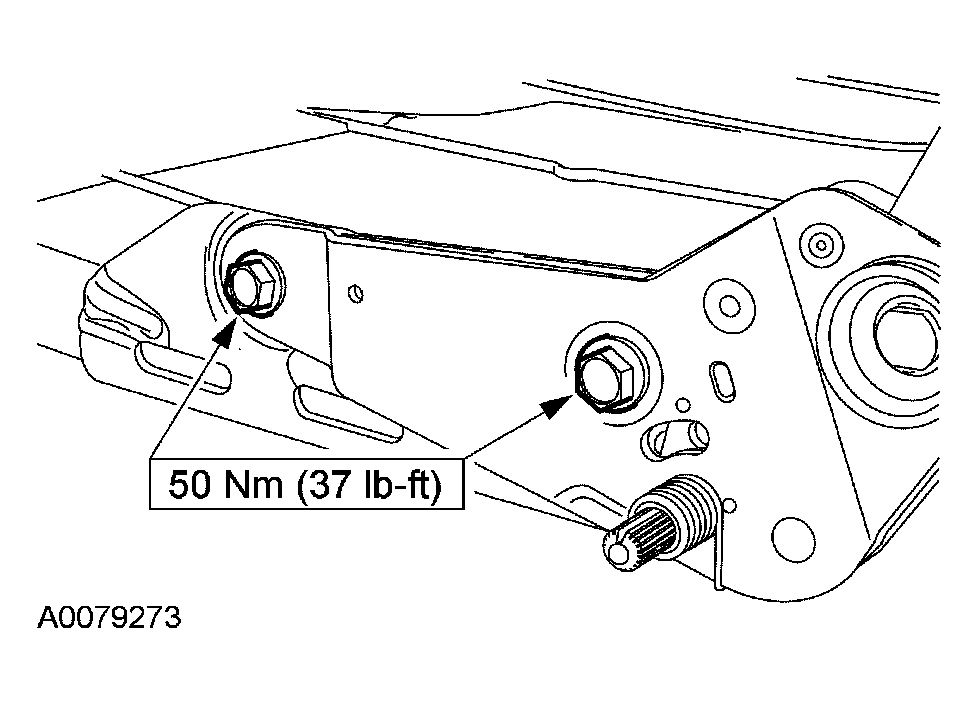

Fig 8: Removing RH Backrest Recliner Bolts - With Torque Specifications
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
