PINPOINT TEST HD: Misfire Detection Monitor: Introduction

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2011 Mercury Milan, 2011 Mercury Mariner, 2011 Mercury Grand Marquis, 2011 Lincoln Town Car, and 2011 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: CROWN VICTORIA POLICE INTERCEPTOR VEHICLES EQUIPPED WITH FIRE SUPPRESSION SYSTEM, REFER TO APPROPRIATE SERVICE INFORMATION FOR IMPORTANT SAFETY WARNINGS . FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

NOTE: Mechanical noise caused by the front end accessory drive components, mechanically driven cooling fans, or rough roads at high RPM with light load conditions may produce a non-symmetrical loss of cylinder acceleration, which may result in a misfire.

This pinpoint test is intended to diagnose the misfire detection monitor.

Clearing the powertrain control module (PCM) diagnostic trouble codes (DTCs) erases any PCM recorded freeze frame data. Make sure to record any PCM freeze frame information before proceeding. Refer to FREEZE FRAME DATA .

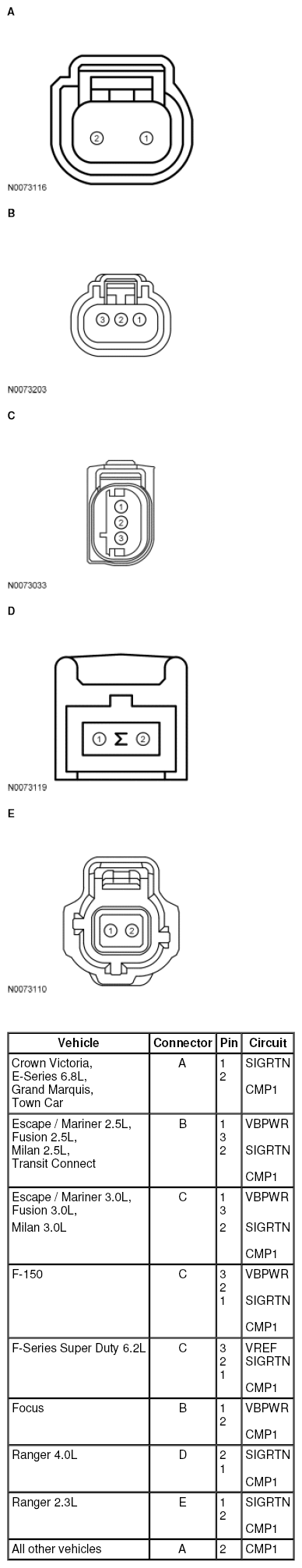

Fig 1: Identifying Camshaft Position 1 (CMP1) Sensor Connector

Courtesy of FORD MOTOR CO.

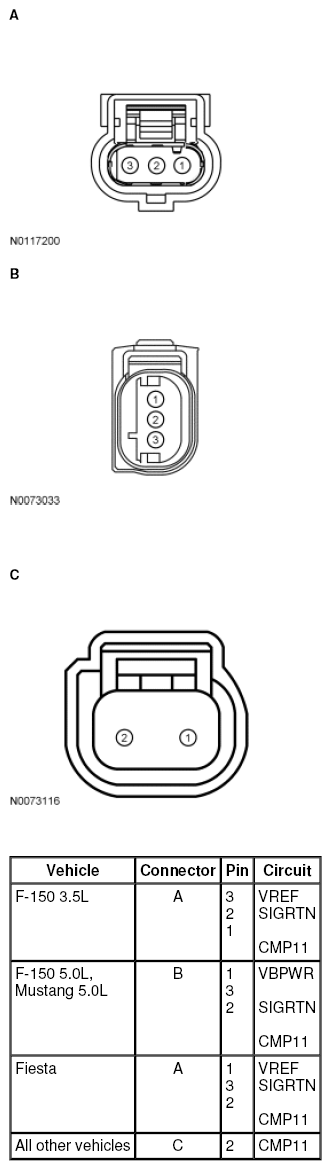

Fig 2: Identifying Camshaft Position 11 (CMP11) Sensor Connector

Courtesy of FORD MOTOR CO.

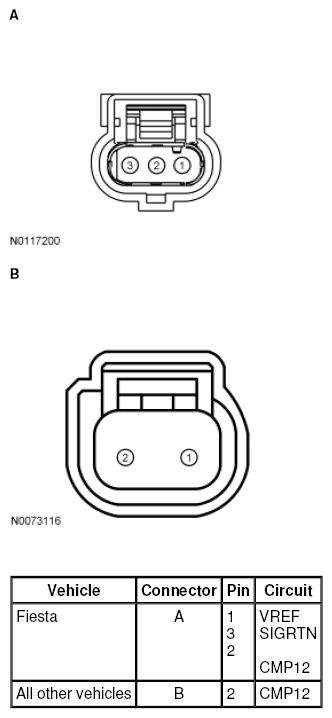

Fig 3: Identifying Camshaft Position 12 (CMP12) Sensor Connector

Courtesy of FORD MOTOR CO.

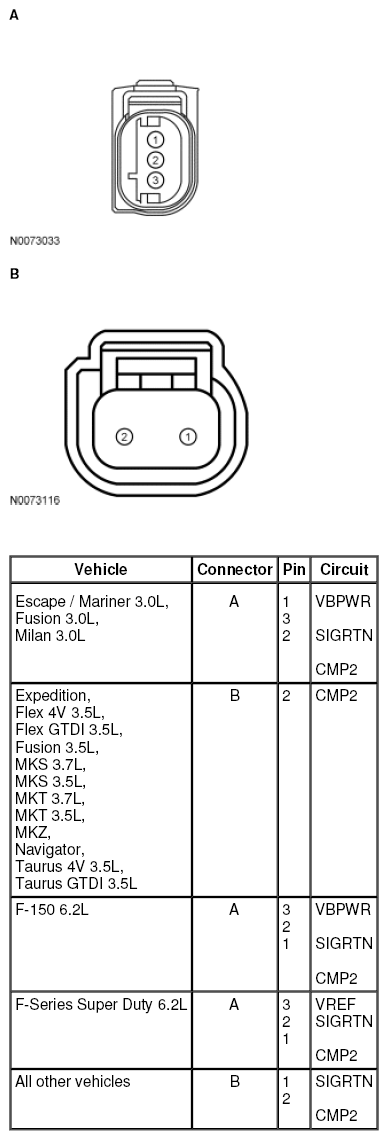

Fig 4: Identifying Camshaft Position 2 (CMP2) Sensor Connector

Courtesy of FORD MOTOR CO.

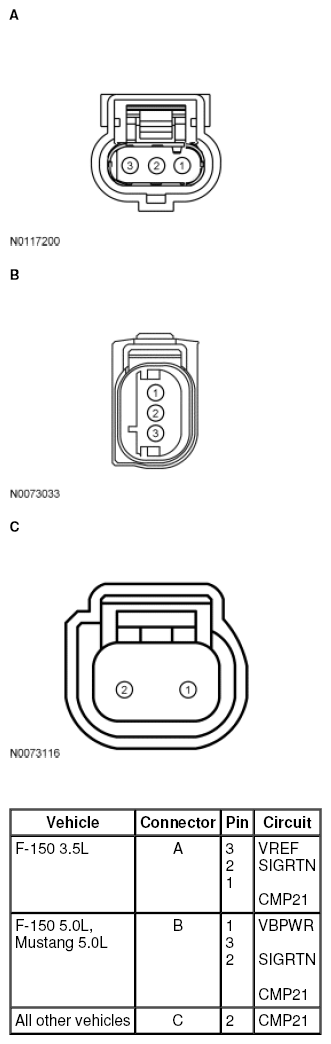

Fig 5: Identifying Camshaft Position 21 (CMP21) Sensor Connector

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Camshaft Position 22 (CMP22) Sensor Connector

Courtesy of FORD MOTOR CO.

Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to REFERENCE VALUES .

POWERTRAIN CONTROL MODULE (PCM) CONNECTOR PINS REFERENCE CHART

Vehicle	Connector	Pin	Circuit
E-Series 4.6L, E-Series 5.4L	190-PIN	E27	CMP1
Edge, Explorer, F-150 3.7L, MKX, Mustang 3.7L	190-PIN	E48 E46 E47 E45	CMP22 CMP21 CMP12 CMP11
Escape / Mariner 3.0L, Fusion 3.0L, Milan 3.0L	190-PIN	E12 E11	CMP2 CMP1
Escape / Mariner 2.5L, Fusion 2.5L, Milan 2.5L	190-PIN	E11	CMP1
Expedition, Navigator	190-PIN	E28 E27	CMP2 CMP1
F-150 6.2L, F-Series Super Duty 6.2L	190-PIN	E38 E37	CMP2 CMP1
F-150 5.0L, Mustang 5.0L	190-PIN	E47 E42 E46 E41	CMP22 CMP21 CMP12 CMP11
F-150 3.5L	198 PIN	E70 E26 E54 E28	CMP22 CMP21 CMP12 CMP11
F-Series Super Duty 6.8L, Mustang 5.4L	190-PIN	E46	CMP1
Fiesta	128 PIN	T19 T21	CMP12 CMP11
Flex 4V 3.5L, MKS 3.7L, MKT 3.7L, Taurus 4V 3.5L	190-PIN	E44 E45	CMP2 CMP1
Flex GTDI 3.5L, MKS 3.5L, MKT 3.5L, Taurus GTDI 3.5L	190-PIN	E45 E46	CMP2 CMP1
Focus, Transit Connect	190-PIN	E8	CMP1
Fusion 3.5L, MKZ	140 PIN	E44 E45	CMP2 CMP1
All other vehicles	170 PIN	E45	CMP1
