PINPOINT TEST DZ: Universal Heated Oxygen Sensor (HO2S): Introduction
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2011 Mercury Milan, 2011 Mercury Mariner, 2011 Mercury Grand Marquis, 2011 Lincoln Town Car, and 2011 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
WHILE CONDUCTING TESTS ON A HOT ENGINE TAKE ALL SAFETY PRECAUTIONS TO PREVENT SKIN CONTACT WITH HOT ENGINE COMPONENTS. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
NOTE:
Only diagnose the suspect universal HO2S indicated by the DTC.
This pinpoint test is intended to diagnose the following:

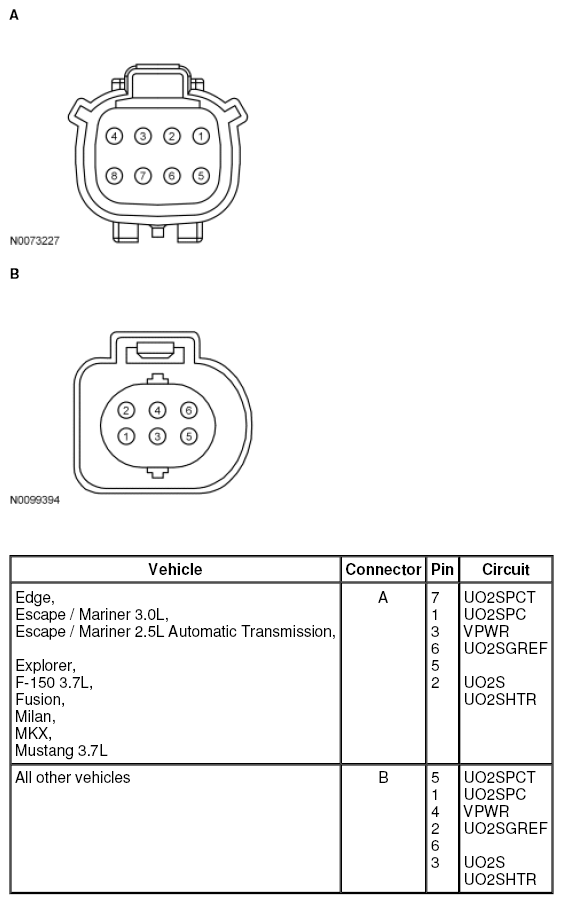

- universal HO2S (9Y460)
- harness circuits: UO2S, UO2SGREF, UO2SHTR, UO2SPC, UO2SPCT, and VPWR
- powertrain control module (PCM) (12A650)
Powertrain Control Module (PCM) Connector
For PCM connector views or reference values, refer to REFERENCE VALUES .
POWERTRAIN CONTROL MODULE (PCM) CONNECTOR PINS REFERENCE CHART
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| E-Series, Expedition, Navigator | 190-PIN | E38 E39 E26 E25 E69 E70 E23 E24 E11 E12 |
UO2S11 UO2S21 UO2SGREF11 UO2SGREF21 UO2SHTR11 UO2SHTR21 UO2SPC11 UO2SPC21 UO2SPCT11 UO2SPCT21 |
| Escape / Mariner 3.0L, Fusion 3.0L, Milan 3.0L |
190-PIN | E23 E24 E27 E10 E69 E70 E37 E53 E26 E25 |
UO2S11 UO2S21 UO2SGREF11 UO2SGREF21 UO2SHTR11 UO2SHTR21 UO2SPC11 UO2SPC21 UO2SPCT11 UO2SPCT21 |
| Escape / Mariner 2.5L, Fusion 2.5L, Milan 2.5L |
190-PIN | E23 E27 E69 E37 E26 |
UO2S11 UO2SGREF11 UO2SHTR11 UO2SPC11 UO2SPCT11 |
| F-150 6.2L, F-150 5.0L, F-Series Super Duty, Mustang 5.4L, Mustang 5.0L | 190-PIN | T4 T39 T15 T40 T24 T35 T29 T28 T17 T16 |
UO2S11 UO2S21 UO2SGREF11 UO2SGREF21 UO2SHTR11 UO2SHTR21 UO2SPC11 UO2SPC21 UO2SPCT11 UO2SPCT21 |
| F-150 3.5L | 198 PIN | E62 E64 E47 E49 E15 E14 E61 E63 E46 E48 |
UO2S11 UO2S21 UO2SGREF11 UO2SGREF21 UO2SHTR11 UO2SHTR21 UO2SPC11 UO2SPC21 UO2SPCT11 UO2SPCT21 |
| Flex 4V 3.5L, MKS 3.7L, MKT 3.7L, Taurus 4V 3.5L | 190-PIN | E18 E20 E19 E21 E69 E70 E4 E6 E5 E7 |
UO2S11 UO2S21 UO2SGREF11 UO2SGREF21 UO2SHTR11 UO2SHTR21 UO2SPC11 UO2SPC21 UO2SPCT11 UO2SPCT21 |
| Flex GTDI 3.5L, MKS 3.5L, MKT 3.5L, Taurus GTDI 3.5L | 190-PIN | E9 E27 E25 E26 E70 E69 E11 E13 E10 E12 |
UO2S11 UO2S21 UO2SGREF11 UO2SGREF21 UO2SHTR11 UO2SHTR21 UO2SPC11 UO2SPC21 UO2SPCT11 UO2SPCT21 |
| All other vehicles | 190-PIN | E27 E10 E26 E25 E69 E70 E23 E24 E37 E53 |
UO2S11 UO2S21 UO2SGREF11 UO2SGREF21 UO2SHTR11 UO2SHTR21 UO2SPC11 UO2SPC21 UO2SPCT11 UO2SPCT21 |
