Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the audio unit. For additional information, refer to AUDIO UNIT .
  2. Disconnect the automatic temperature control (ATC) solenoid and manifold.
    1. Disconnect the vacuum connector.
    2. Disconnect the electrical connector.

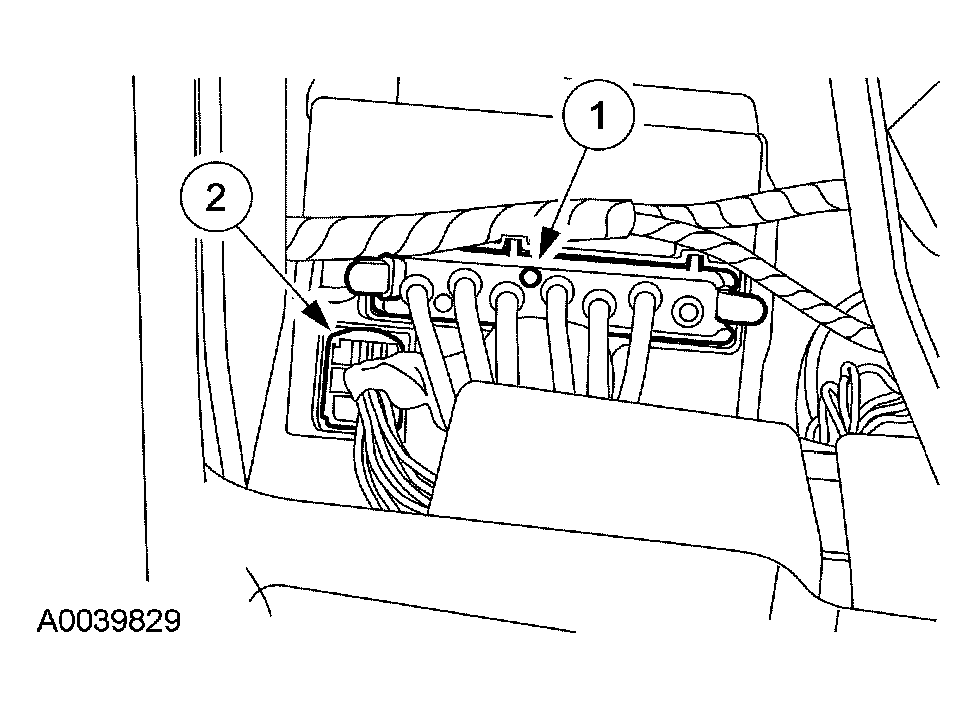

      Fig 1: Disconnecting Automatic Temperature Control (ATC) Solenoid And Manifold
      G03910658Courtesy of FORD MOTOR CO.
  3. Remove the screw and remove the ATC solenoid and manifold.
    Fig 2: Removing Screw And ATC Solenoid And Manifold
    G03910659Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
