Transmission Support Crossmember: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. For additional information, refer to JACKING AND LIFTING .
Disconnect the electrical connection from the transmission support crossmember (6A023).

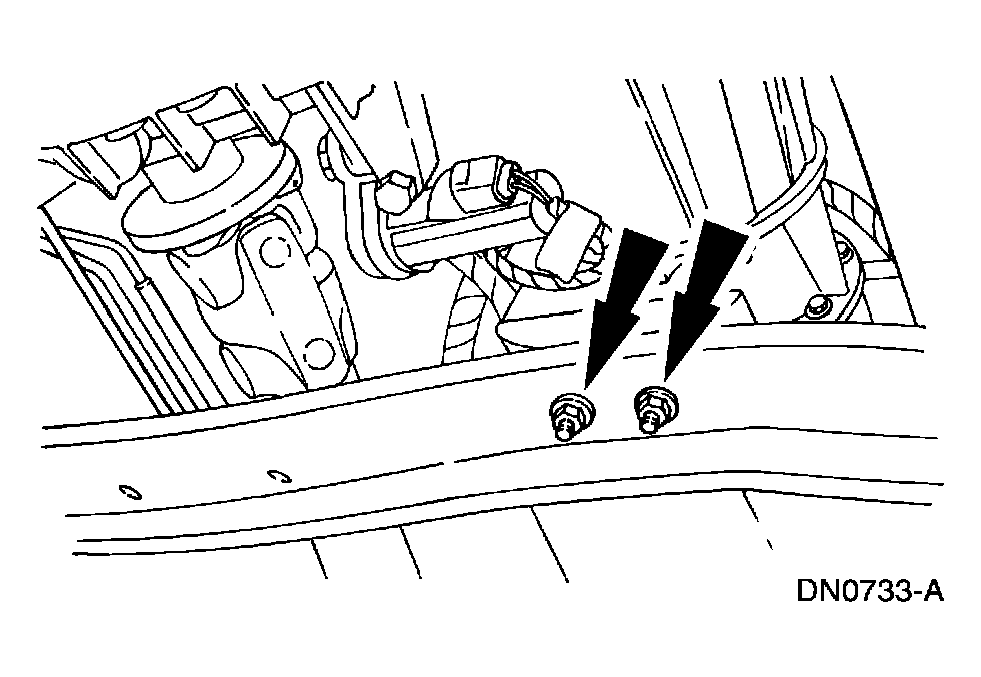

Fig 1: Disconnecting Electrical Connection From Transmission Support Crossmember
Courtesy of FORD MOTOR CO.
Support the transmission.
Remove the transmission insulator nuts.

Fig 2: Locating Transmission Insulator Nuts
Courtesy of FORD MOTOR CO.
Remove the nuts and bolts retaining the gusset to the frame.

Fig 3: Locating Nuts And Bolts Retaining Gusset To Frame
Courtesy of FORD MOTOR CO.
Remove the nuts and bolts retaining the gusset to the transmission support crossmember, then remove the gusset.

Fig 4: Locating Nuts And Bolts Retaining Gusset To Transmission Support Crossmember
Courtesy of FORD MOTOR CO.
Remove the transmission support crossmember nuts and bolts (RH side).

Fig 5: Locating Transmission Support Crossmember Nuts And Bolts (RH Side)
Courtesy of FORD MOTOR CO.
Remove the transmission support crossmember nuts and bolts (LH side).
- Position the lines to access the nuts and bolts.

  Fig 6: Locating Transmission Support Crossmember Nuts And Bolts (LH Side)
  Courtesy of FORD MOTOR CO.
Remove the transmission support crossmember.
