F18, F28, F29, F30, F31, F32, F33, F34, F35

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

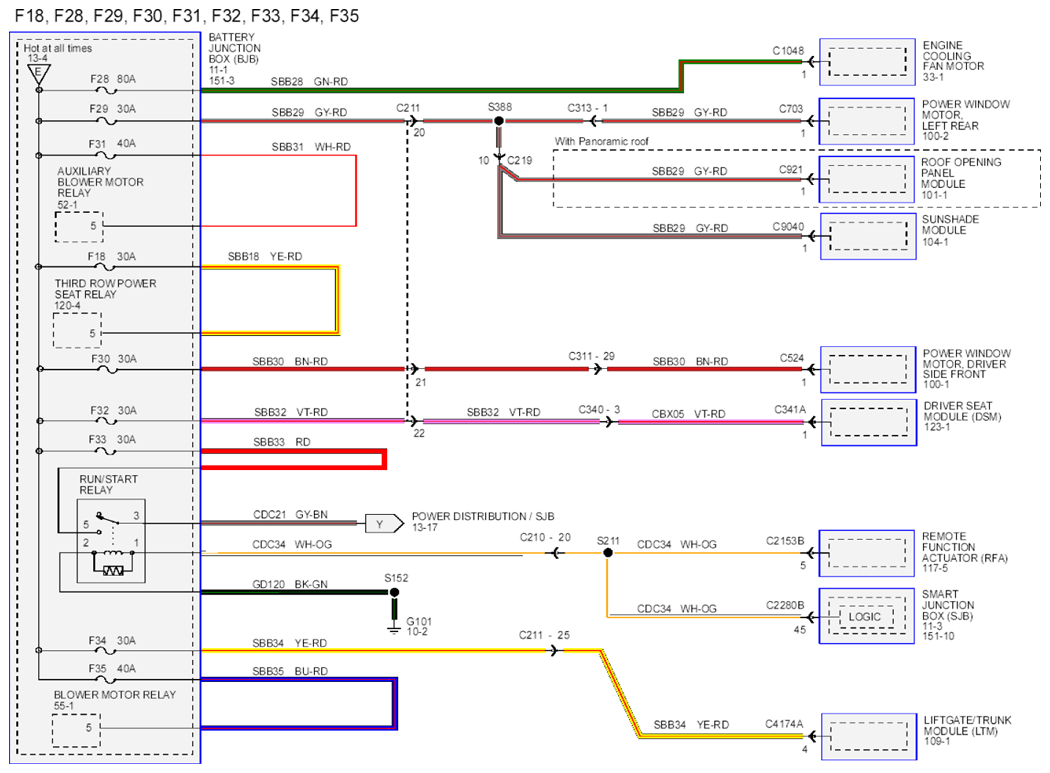

Fig 1: Power Distribution Circuit Diagram - F18, F28, F29, F30, F31, F32, F33, F34 And F35

Courtesy of FORD MOTOR CO.
