Interior Lamps

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

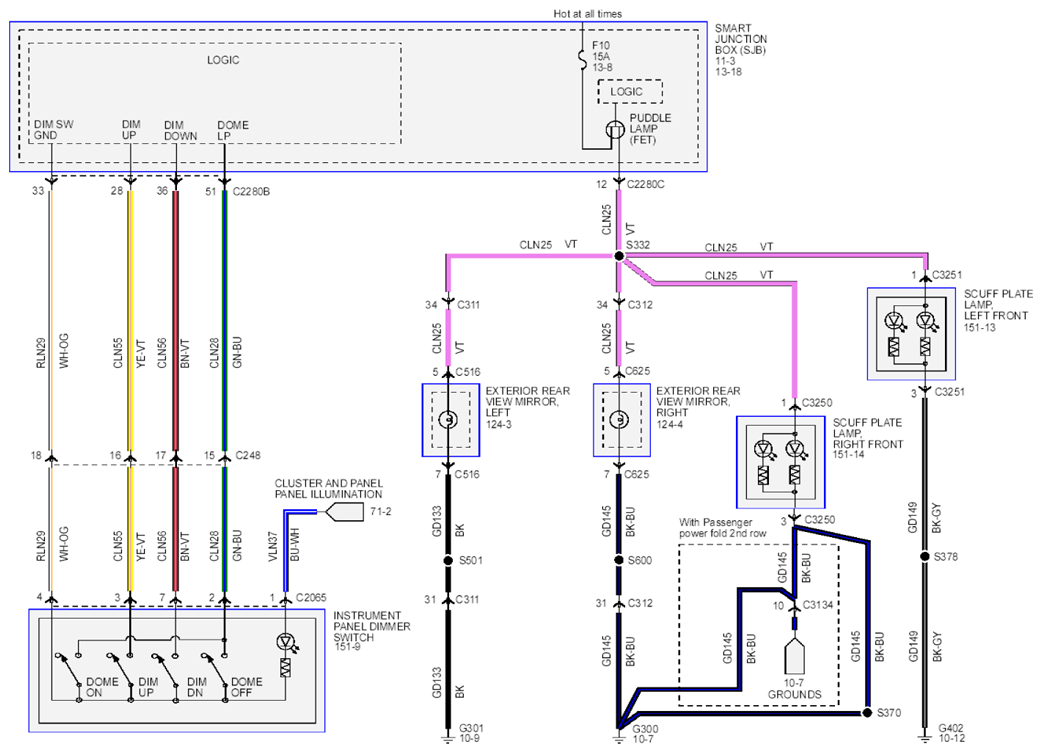

Fig 1: Interior Lamps Circuit Diagram (1 Of 8)

Courtesy of FORD MOTOR CO.

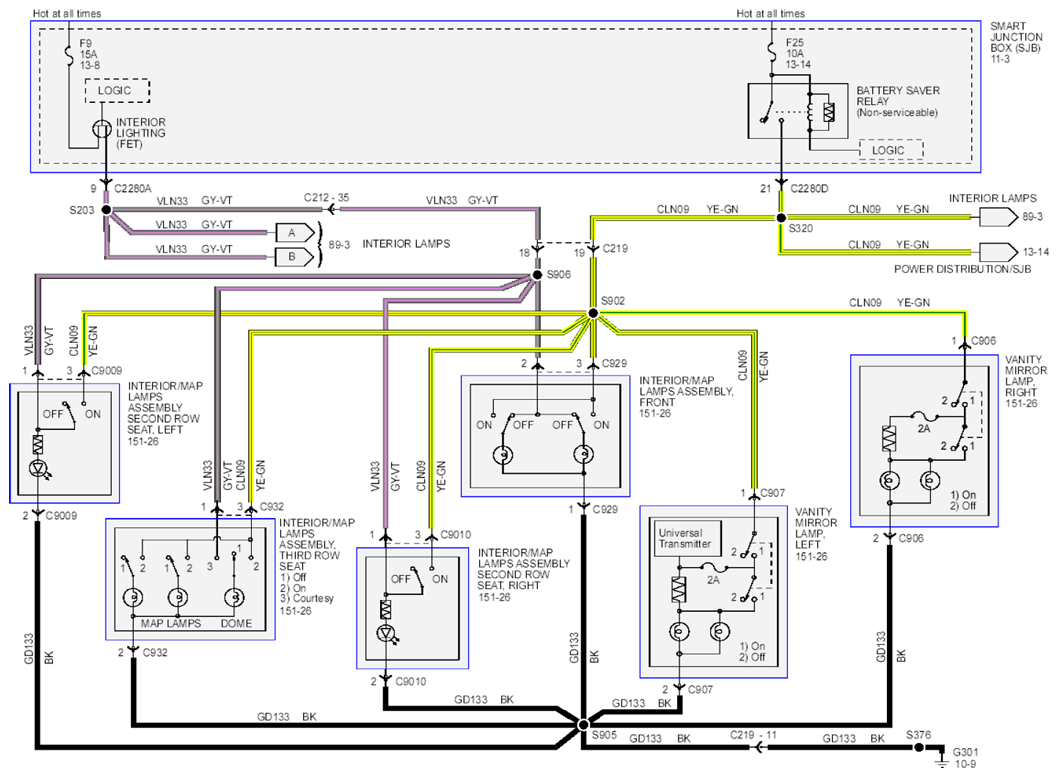

Fig 2: Interior Lamps Circuit Diagram (2 Of 8)

Courtesy of FORD MOTOR CO.

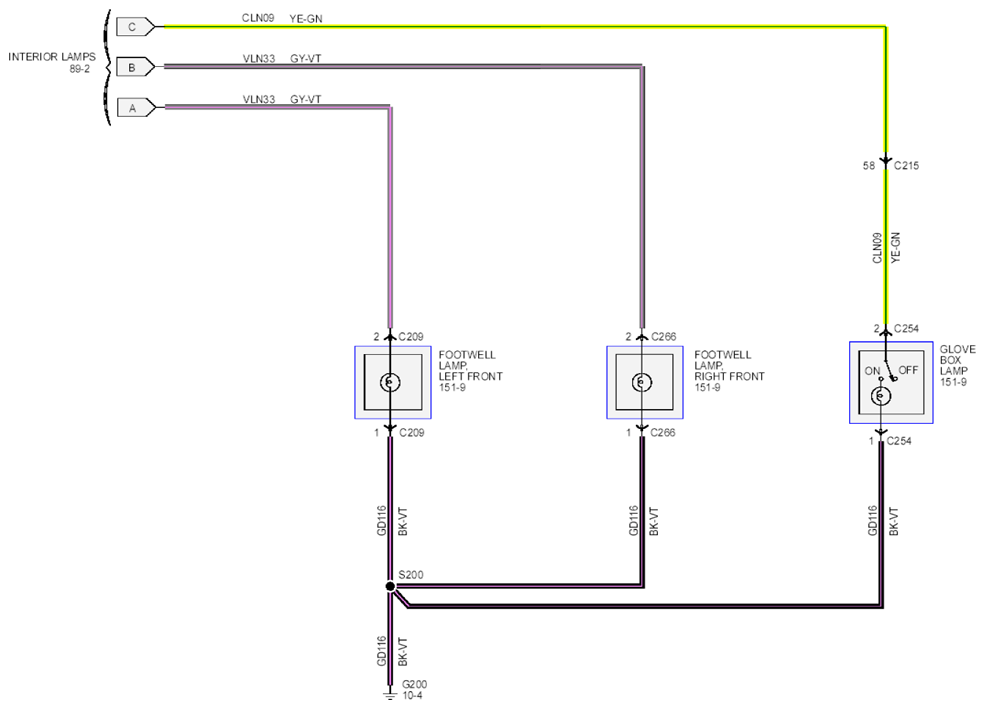

Fig 3: Interior Lamps Circuit Diagram (3 Of 8)

Courtesy of FORD MOTOR CO.

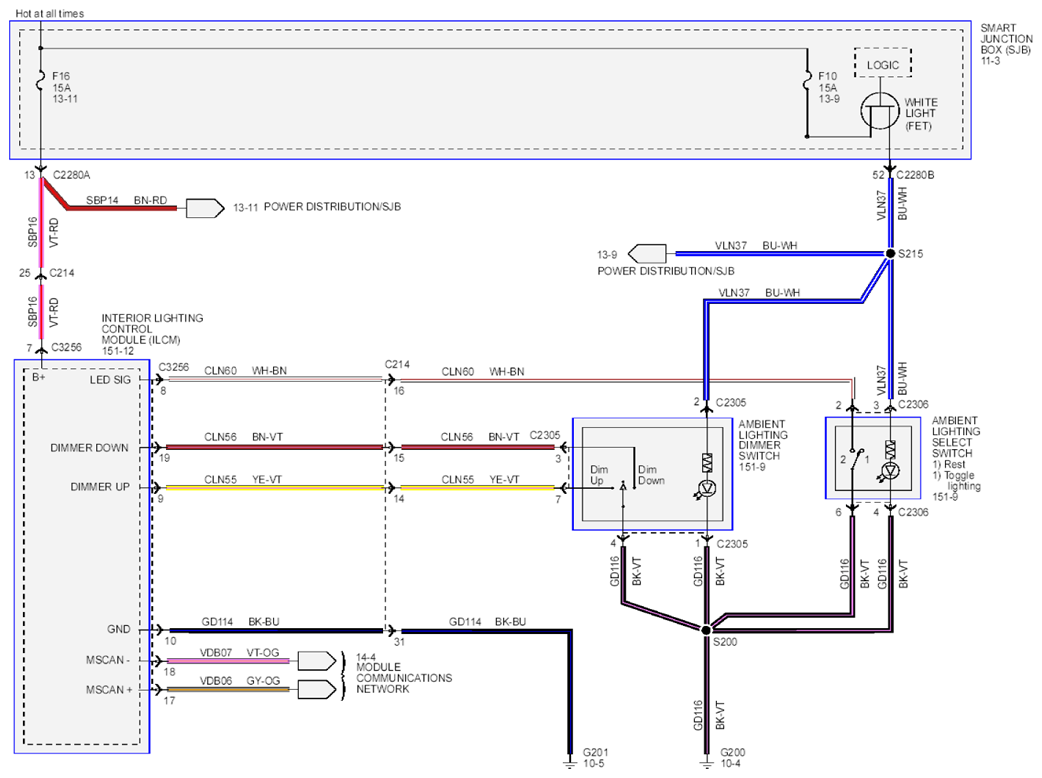

Fig 4: Interior Lamps Circuit Diagram (4 Of 8)

Courtesy of FORD MOTOR CO.

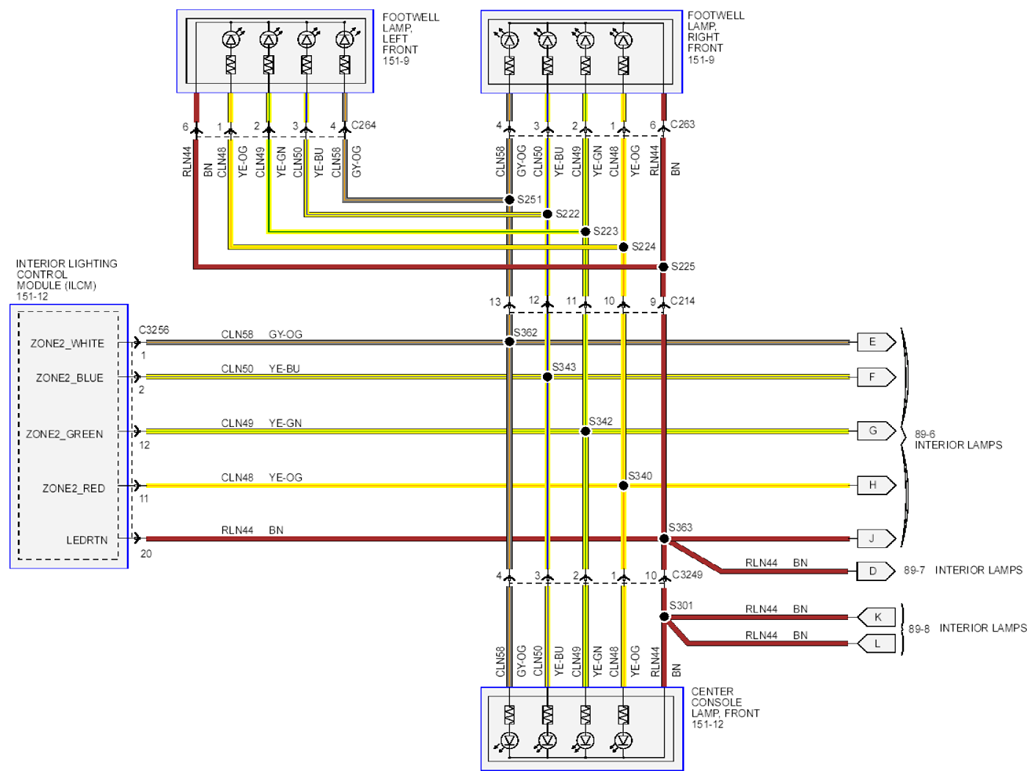

Fig 5: Interior Lamps Circuit Diagram (5 Of 8)

Courtesy of FORD MOTOR CO.

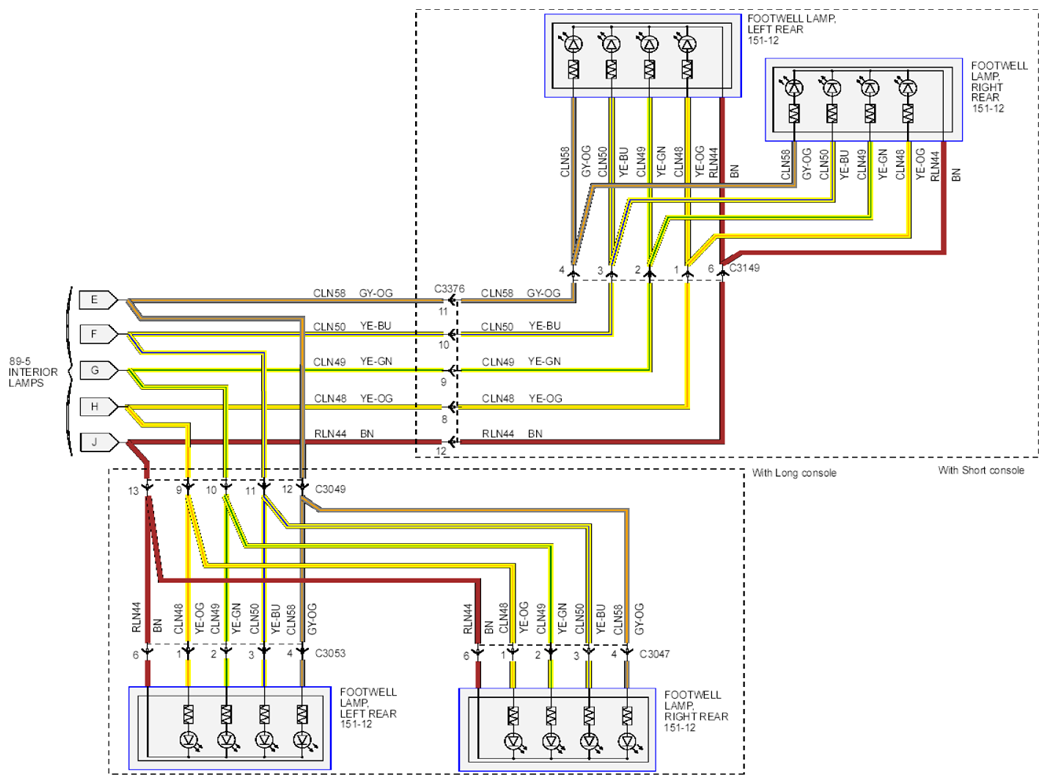

Fig 6: Interior Lamps Circuit Diagram (6 Of 8)

Courtesy of FORD MOTOR CO.

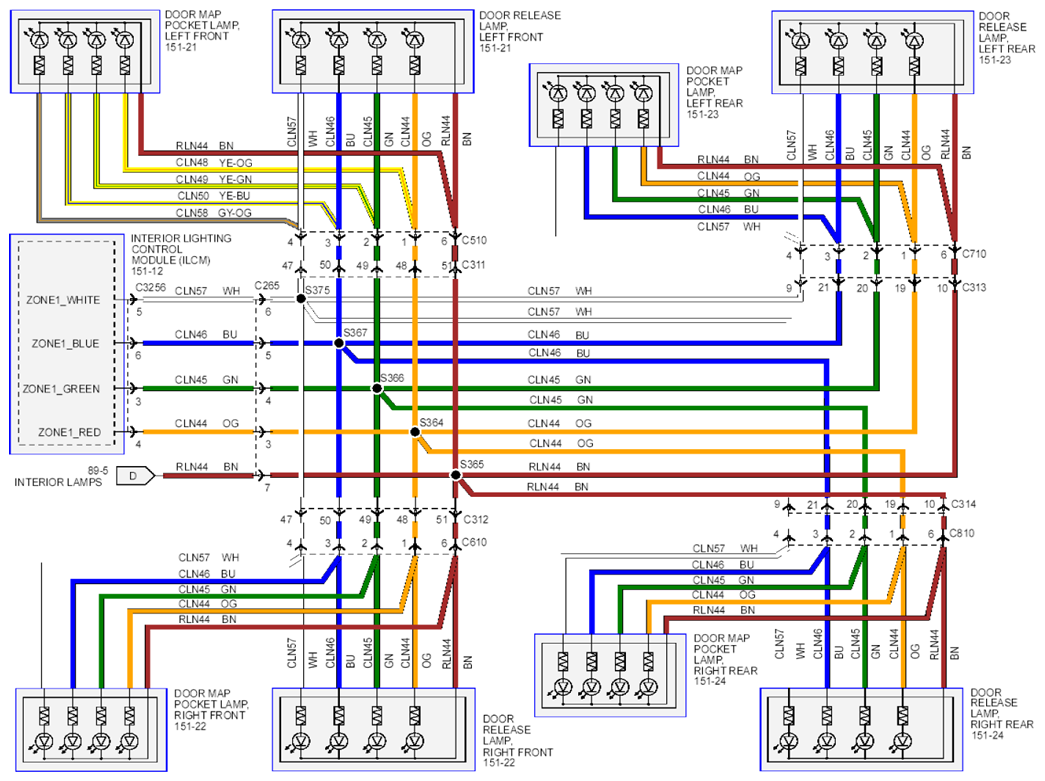

Fig 7: Interior Lamps Circuit Diagram (7 Of 8)

Courtesy of FORD MOTOR CO.

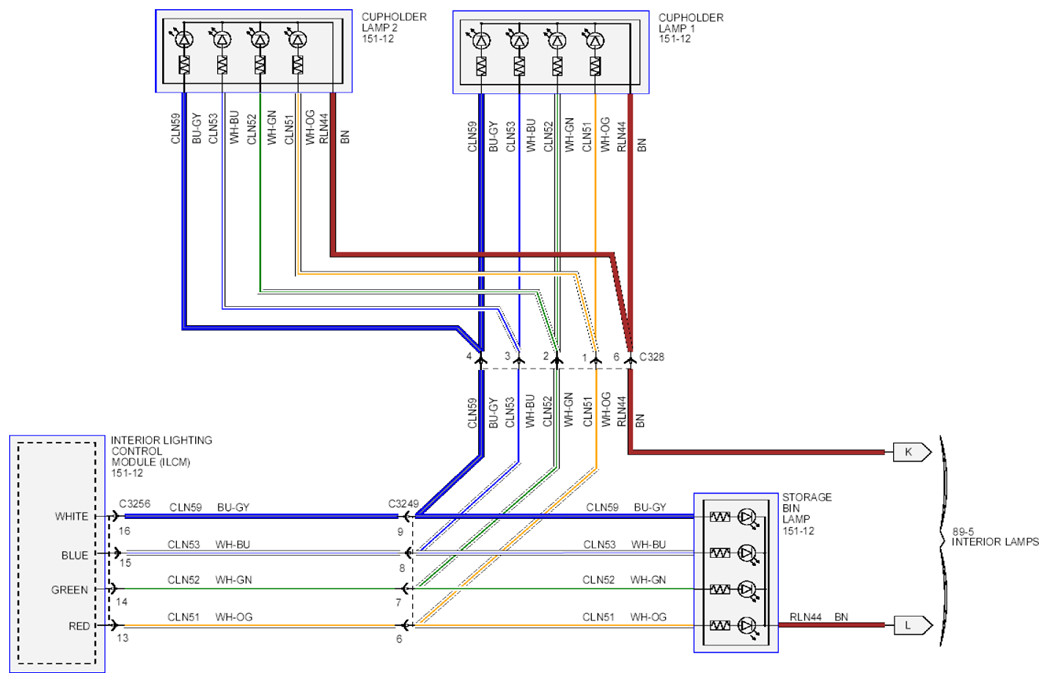

Fig 8: Interior Lamps Circuit Diagram (8 Of 8)

Courtesy of FORD MOTOR CO.
