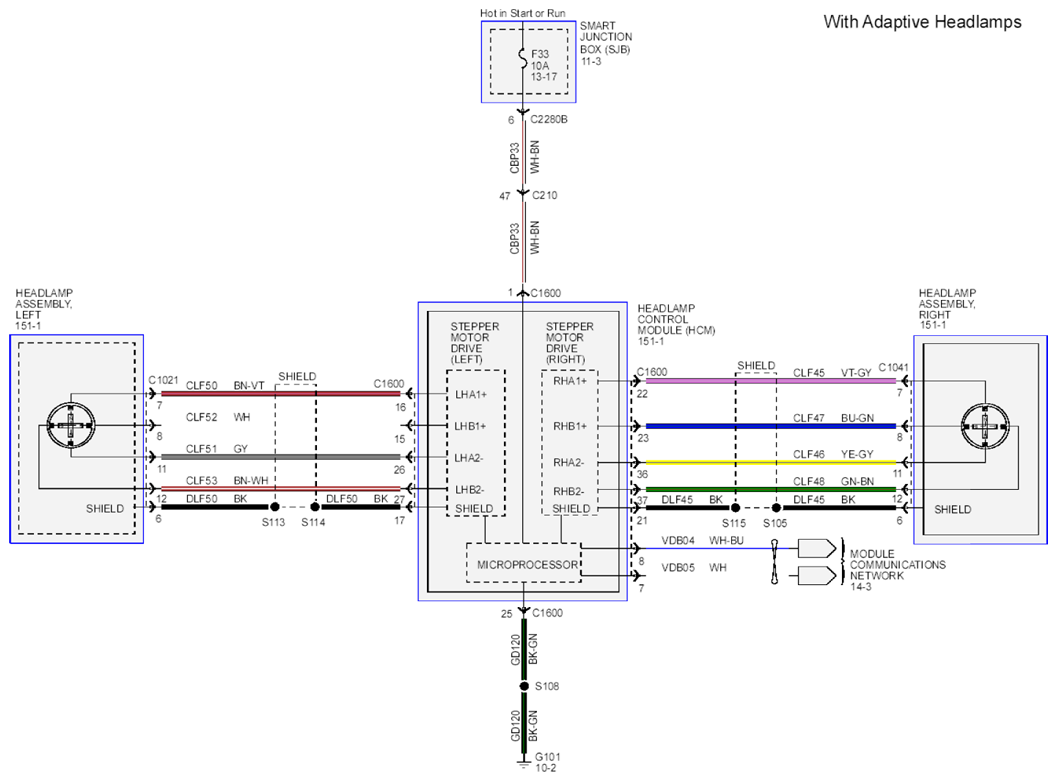

Fig 1: Headlamps And Autolamps Circuit Diagram - With Adaptive Headlamps (1 Of 2)
Courtesy of FORD MOTOR CO.

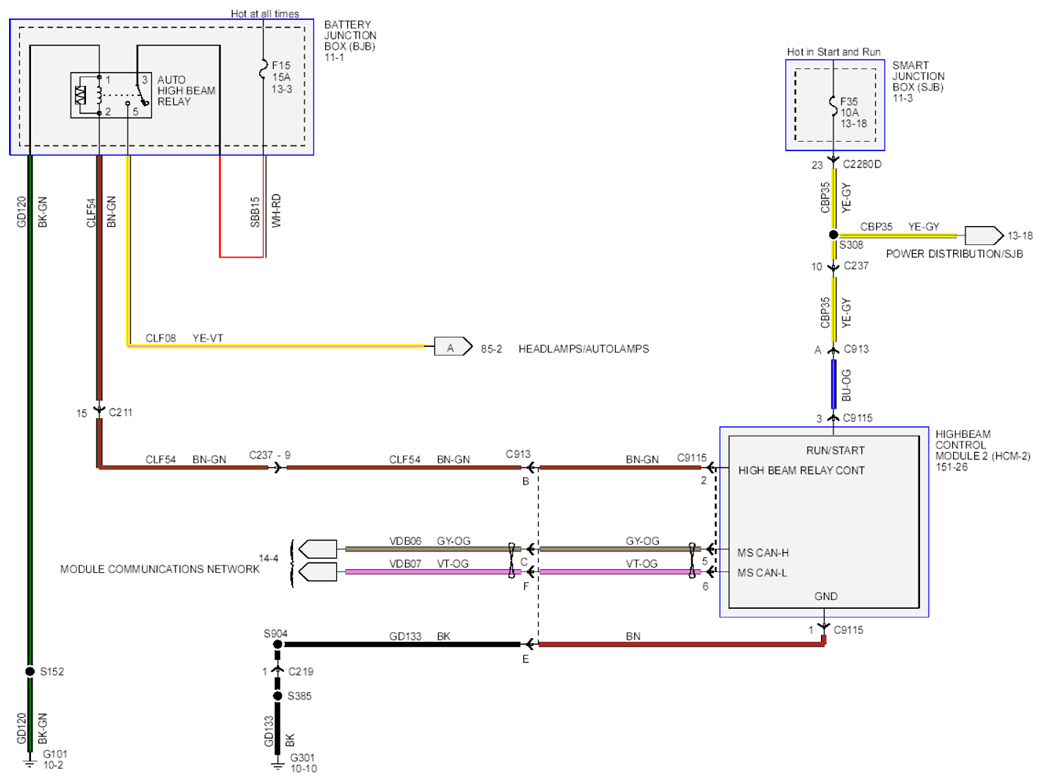

Fig 2: Headlamps And Autolamps Circuit Diagram - With Adaptive Headlamps (2 Of 2)
