Section 1772 (OEM Wiring Diagrams): Grounds: G400

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

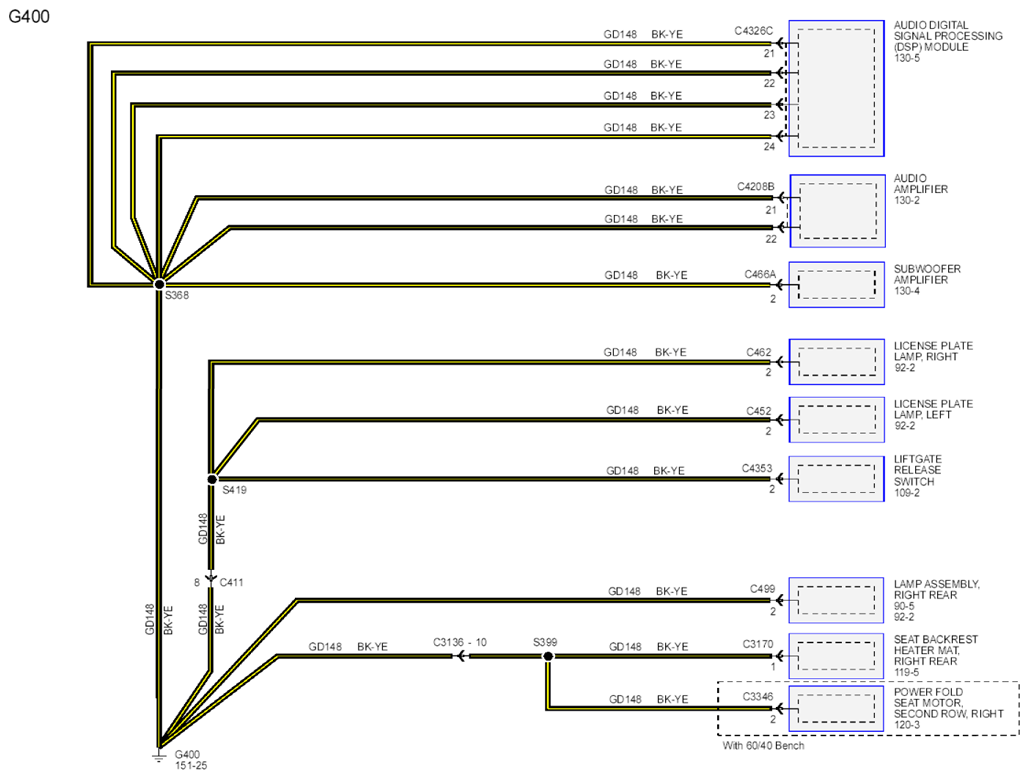

Fig 1: Ground Circuit Diagram - G400
G07880356Courtesy of FORD MOTOR CO.
