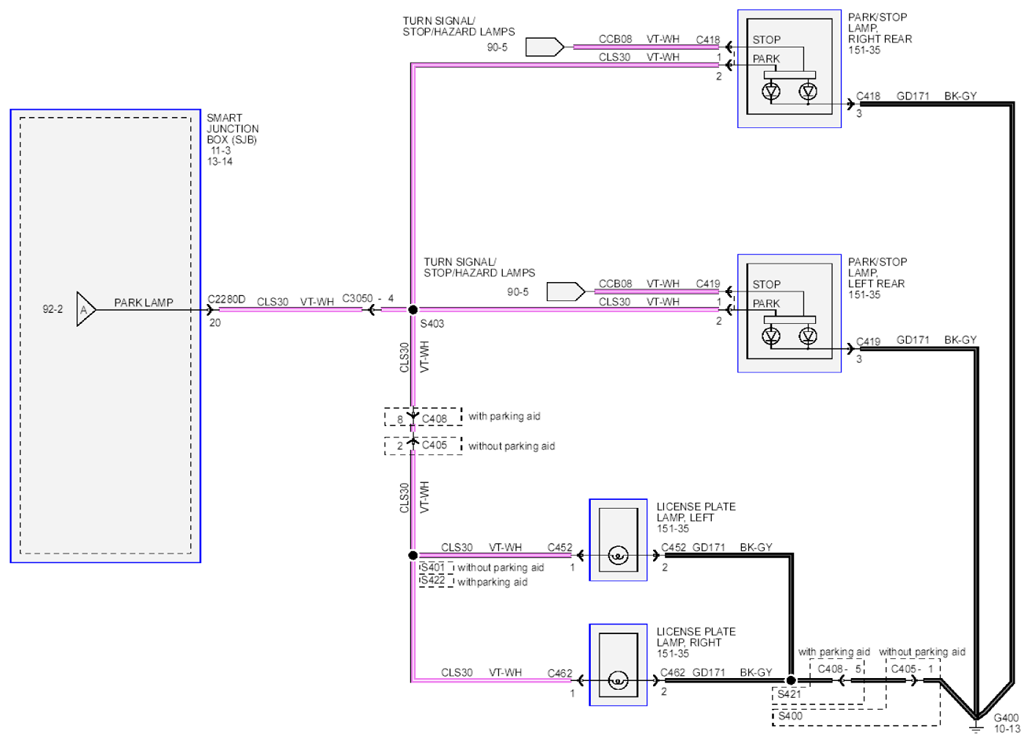

Fig 1: Parking, Rear And License Lamps Schematic - Milan (1 Of 3)
Courtesy of FORD MOTOR CO.

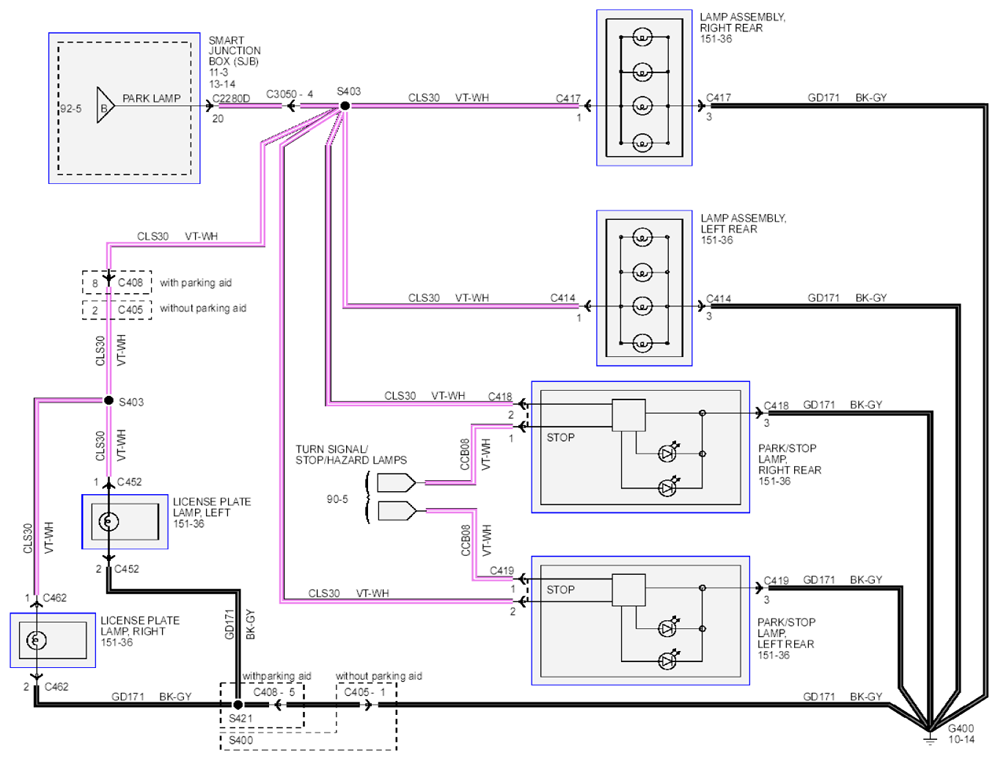

Fig 2: Parking, Rear And License Lamps Schematic - Milan (2 Of 3)
Courtesy of FORD MOTOR CO.

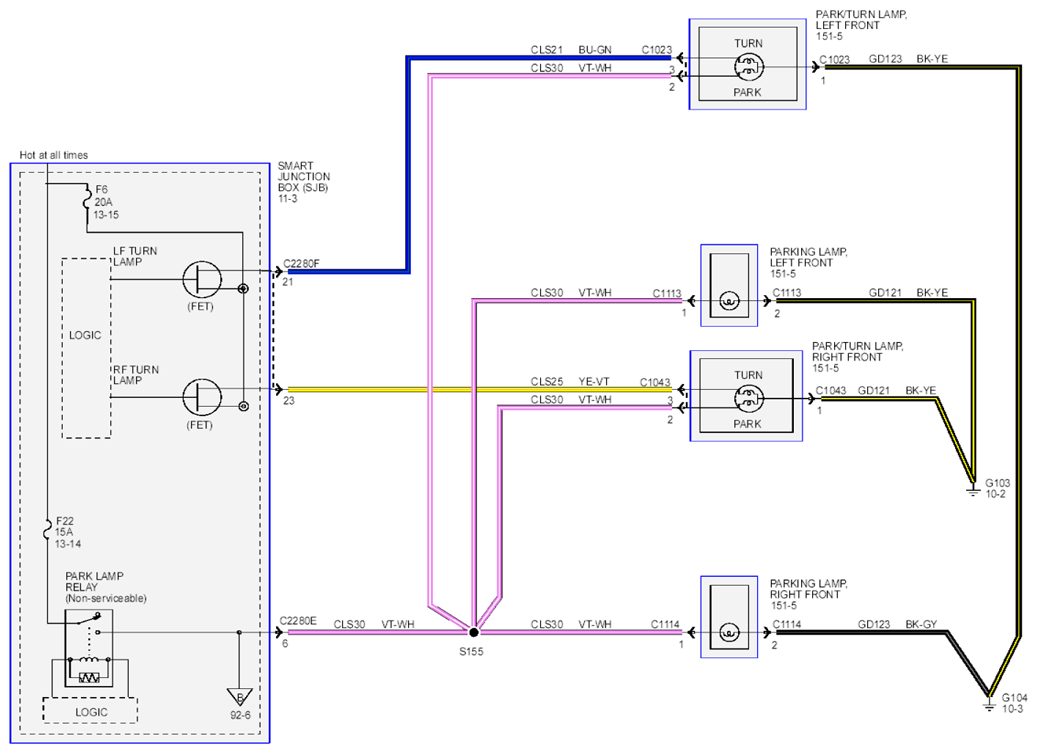

Fig 3: Parking, Rear And License Lamps Schematic - Milan (3 Of 3)
