Memory Seats

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

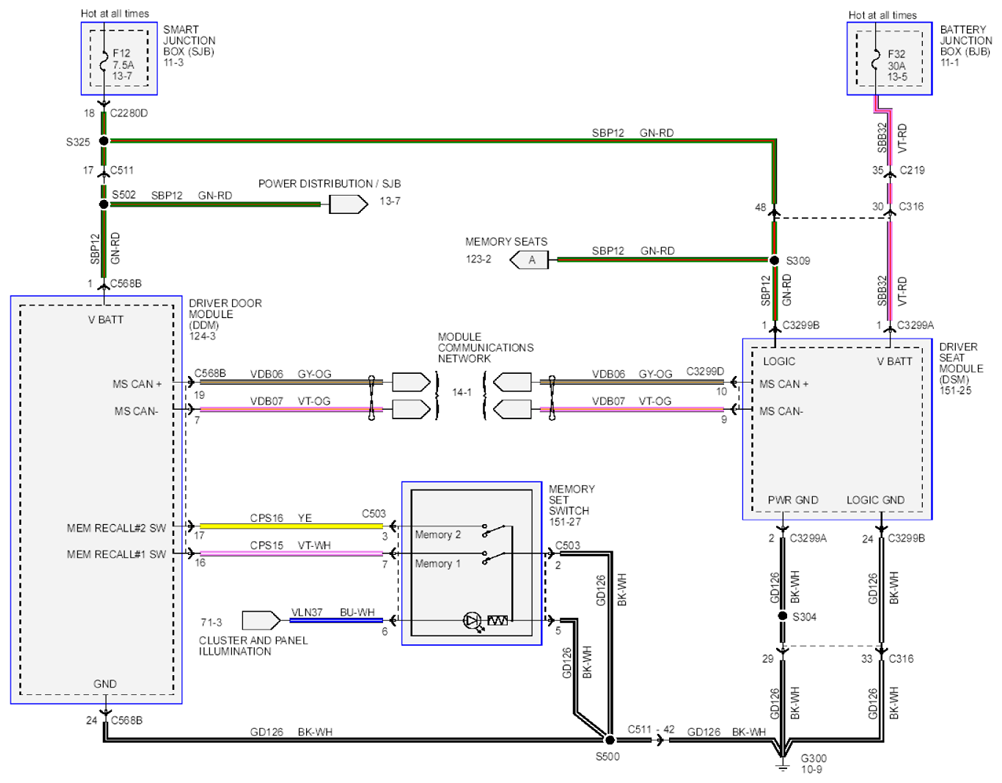

Fig 1: Memory Seats Schematic (1 Of 3)

Courtesy of FORD MOTOR CO.

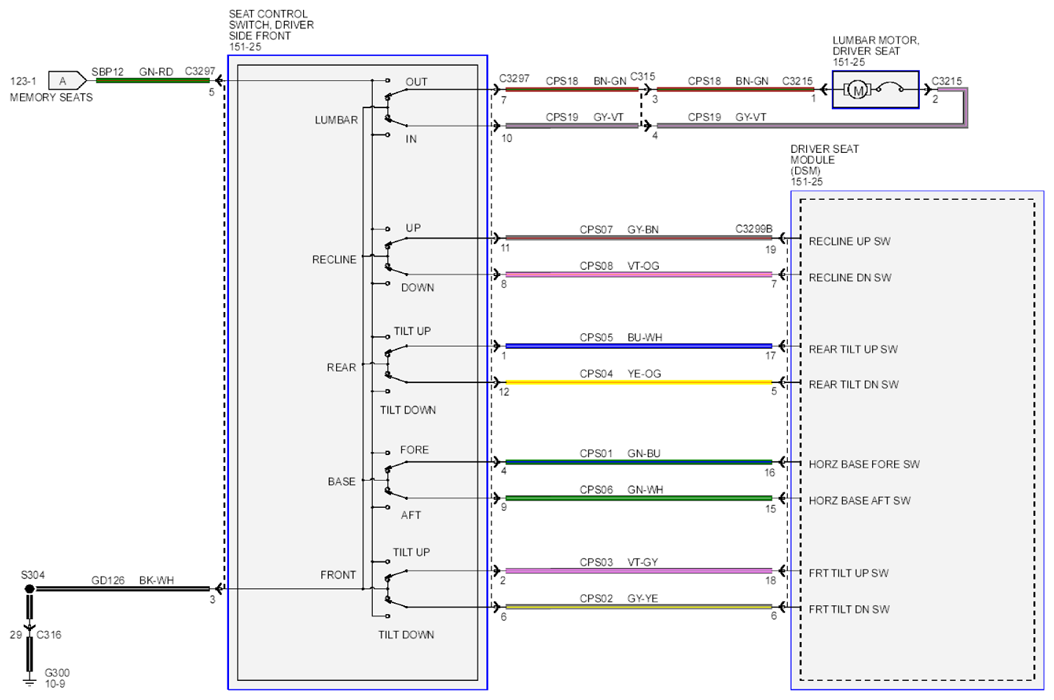

Fig 2: Memory Seats Schematic (2 Of 3)

Courtesy of FORD MOTOR CO.

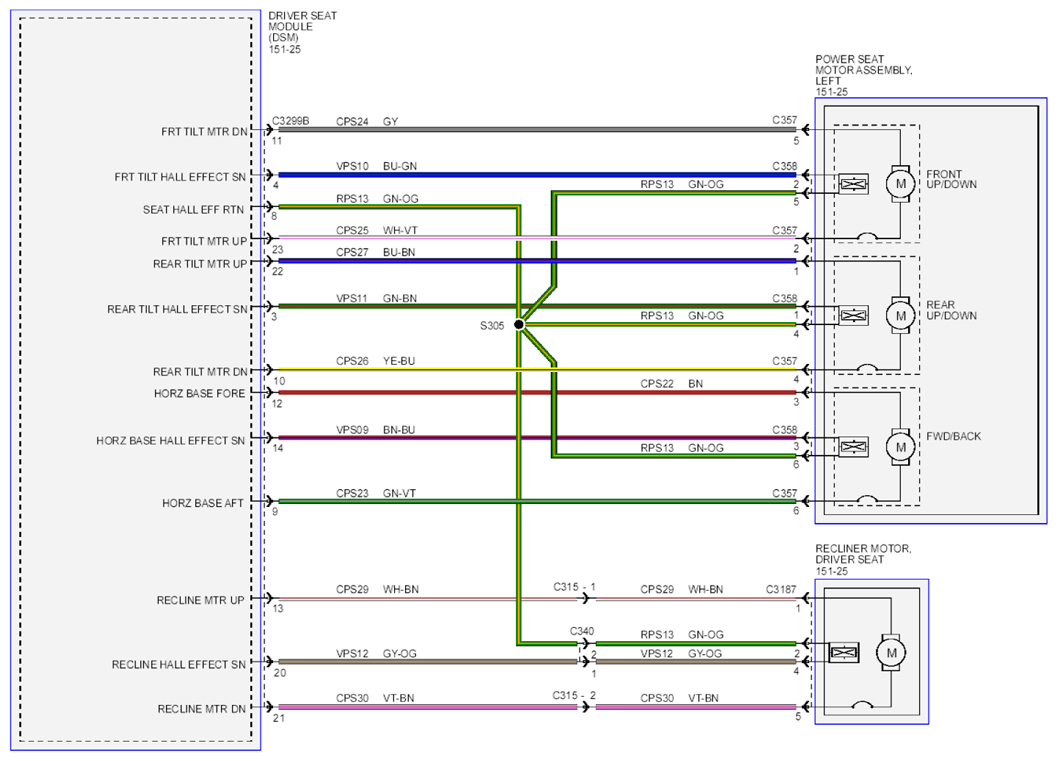

Fig 3: Memory Seats Schematic (3 Of 3)

Courtesy of FORD MOTOR CO.
