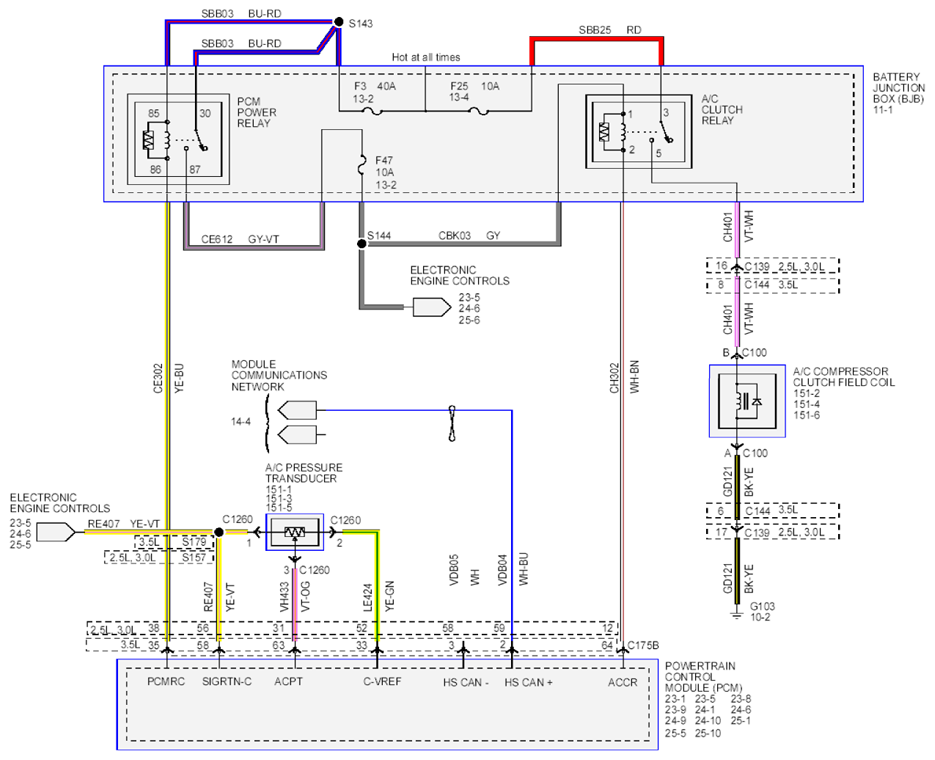

Fig 1: Manual Climate Control System Schematic (1 Of 4)
Courtesy of FORD MOTOR CO.

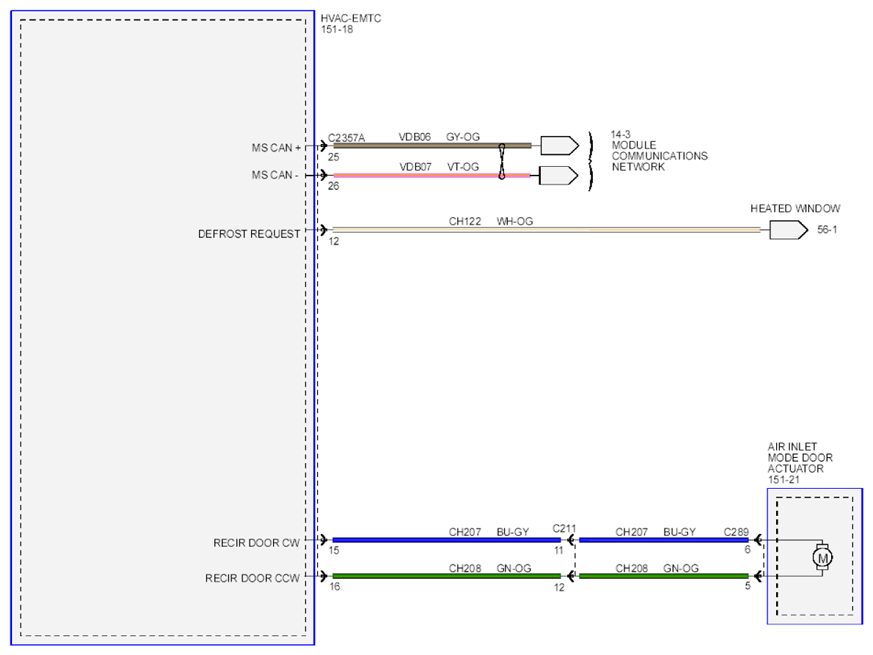

Fig 2: Manual Climate Control System Schematic (2 Of 4)
Courtesy of FORD MOTOR CO.

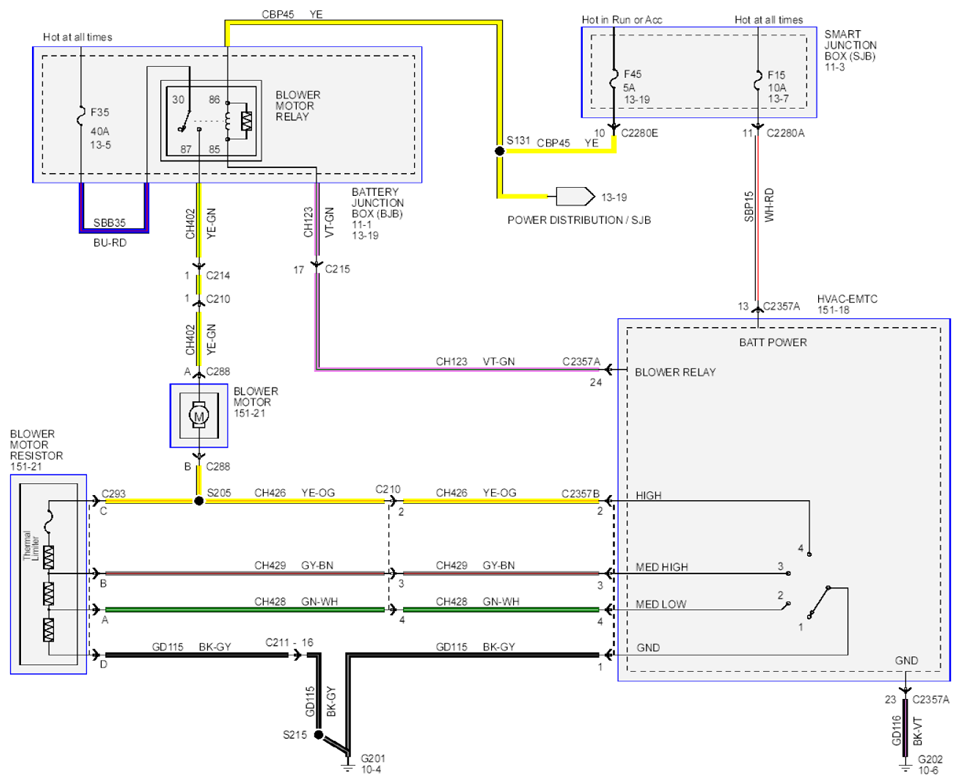

Fig 3: Manual Climate Control System Schematic (3 Of 4)
Courtesy of FORD MOTOR CO.

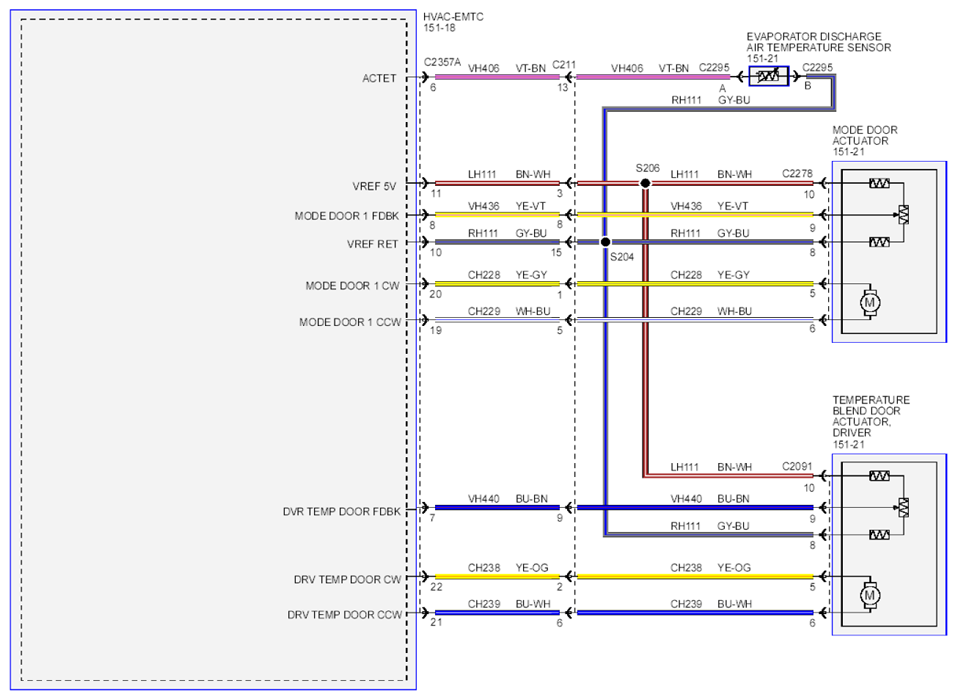

Fig 4: Manual Climate Control System Schematic (4 Of 4)
