WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

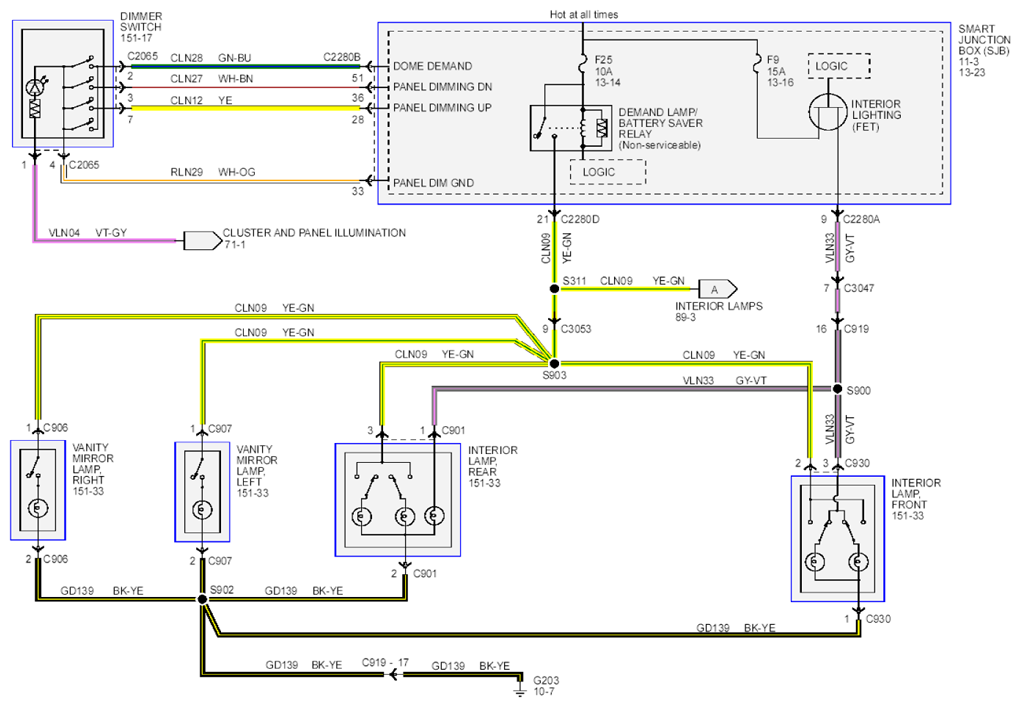

Fig 1: Interior Lamp Schematic - Fusion/Milan (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 2: Interior Lamp Schematic - Fusion/Milan (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 3: Interior Lamp Schematic - Fusion/Milan (3 Of 3)
