G400, Fusion

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

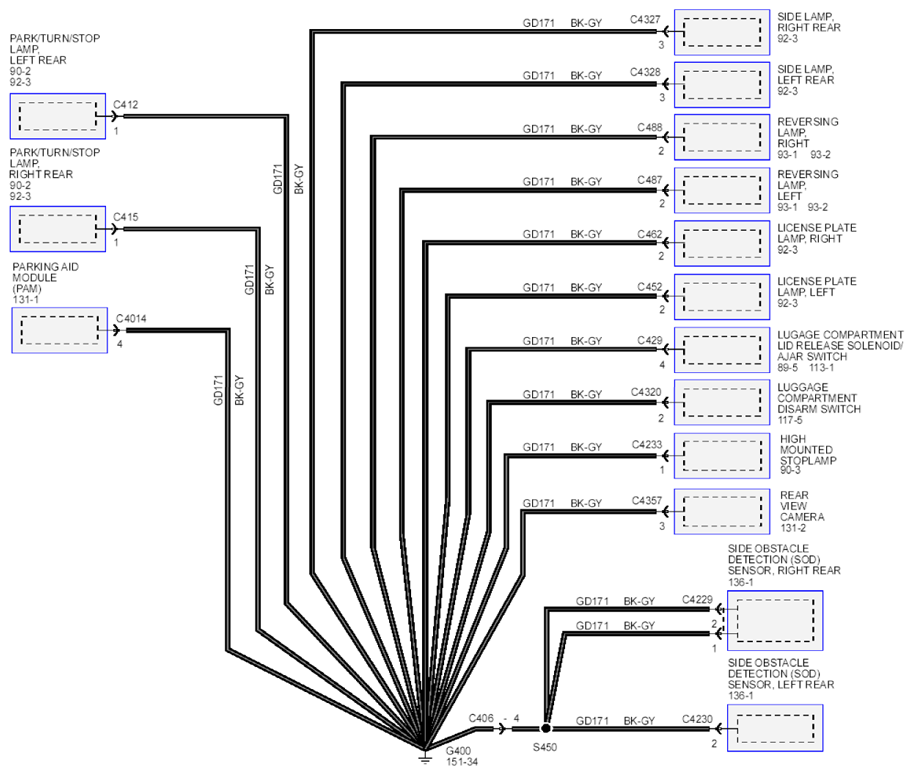

Fig 1: Grounds Schematic - G400, Fusion
G07861377Courtesy of FORD MOTOR CO.
