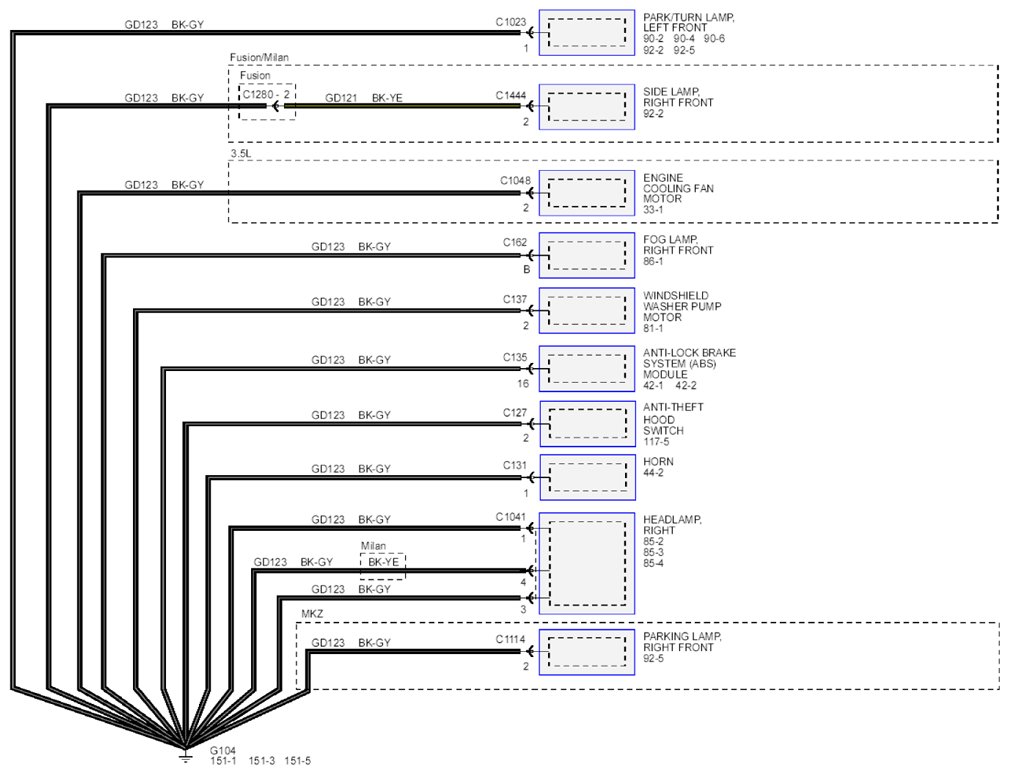

Section 1770 (OEM Wiring Diagrams (Except Hybrid)): Grounds: G104

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
