Cruise Control: 3.5L

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

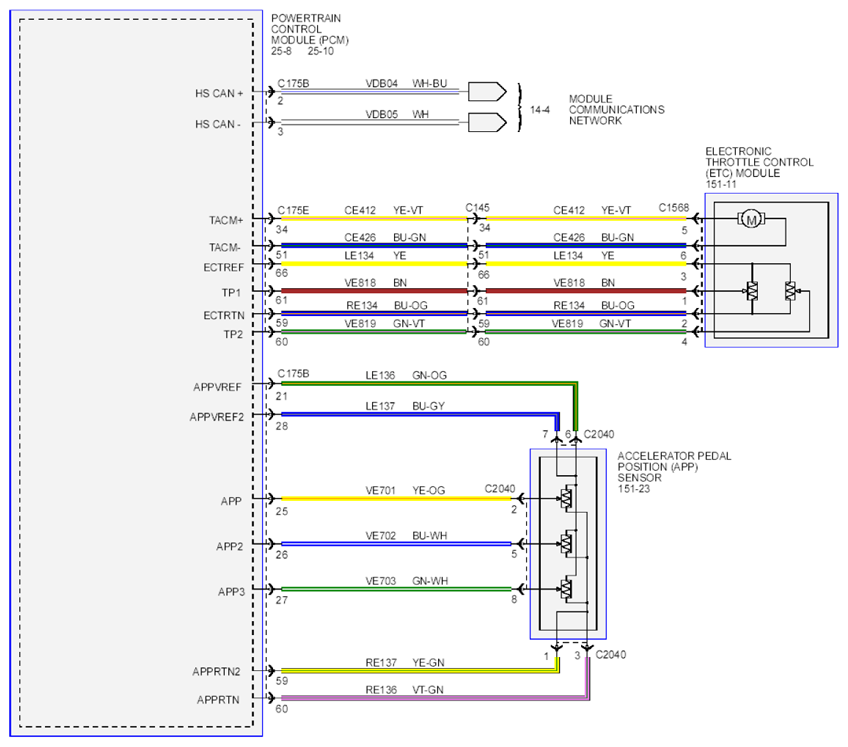

Fig 1: Cruise Control Schematic - 3.5L (1 Of 2)
G07861447Courtesy of FORD MOTOR CO.

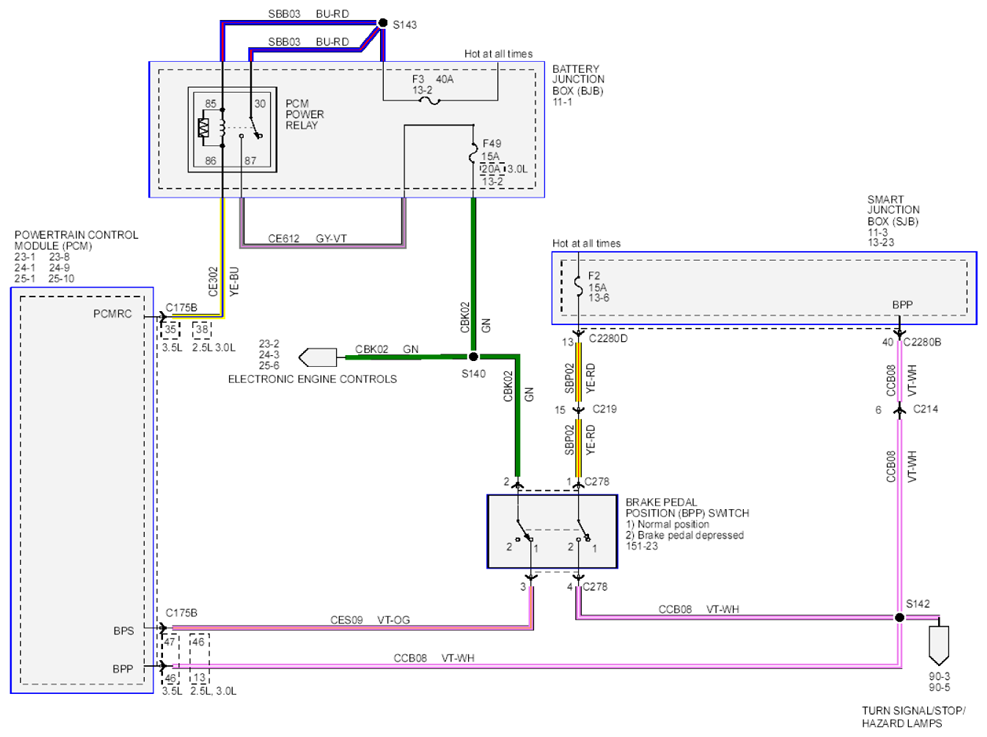

Fig 2: Cruise Control Schematic - 3.5L (2 Of 2)
G07861448Courtesy of FORD MOTOR CO.
