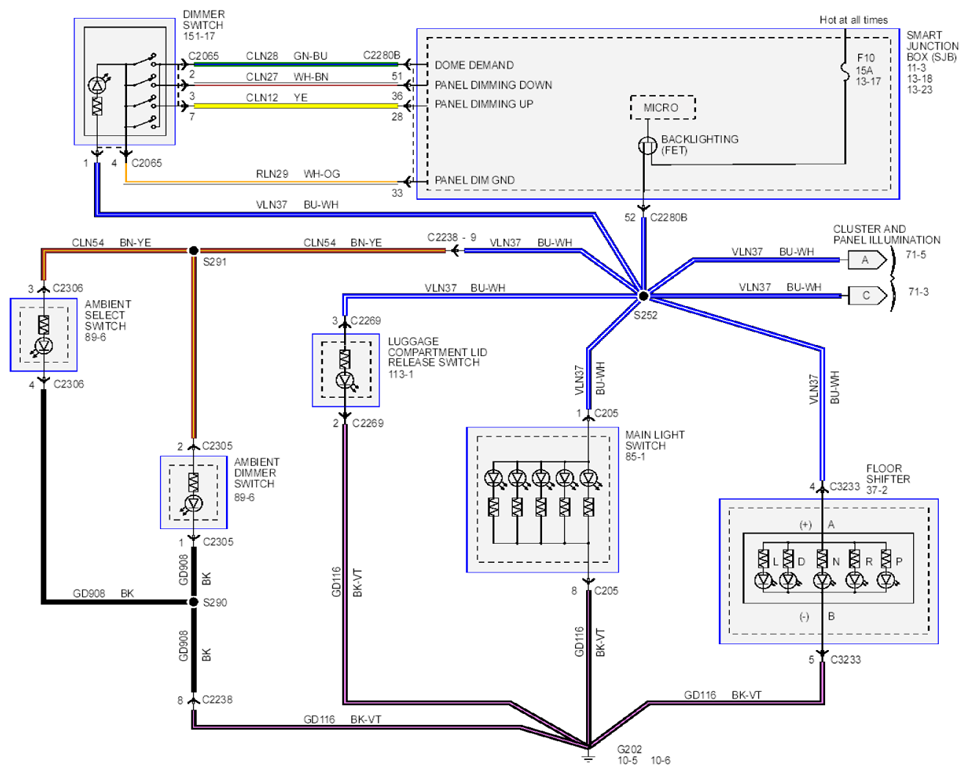

Fig 1: Cluster And Panel Illumination Schematic - MKZ (1 Of 2)
Courtesy of FORD MOTOR CO.

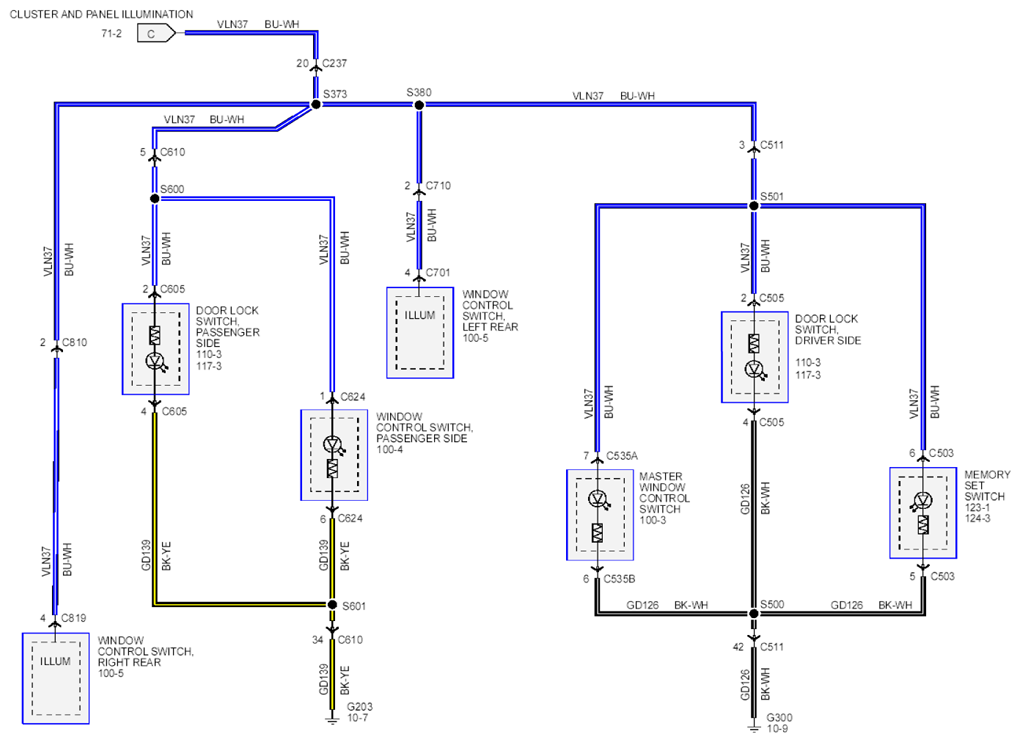

Fig 1: Cluster And Panel Illumination Schematic - MKZ (2 Of 2)
