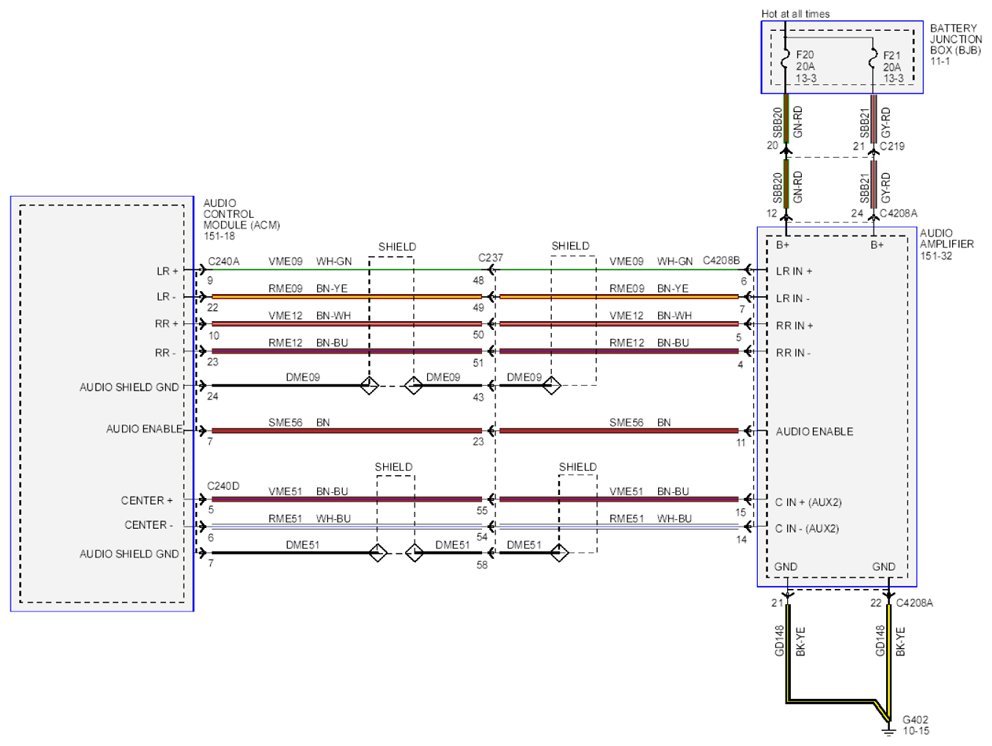

Fig 1: Audio System Navigation Schematic - Premium MKZ (1 Of 3)
Courtesy of FORD MOTOR CO.

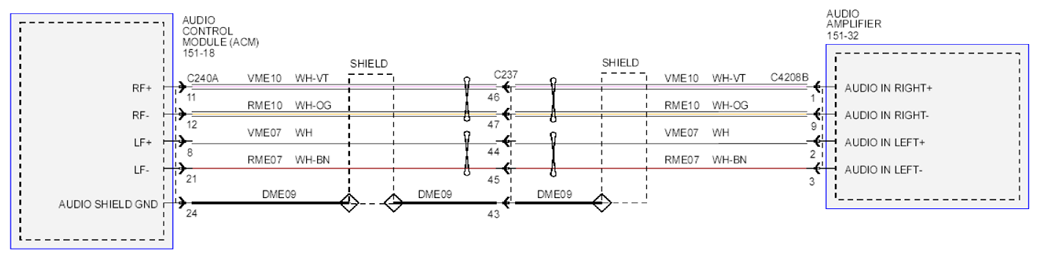

Fig 2: Audio System Navigation Schematic - Premium MKZ (2 Of 3)
Courtesy of FORD MOTOR CO.

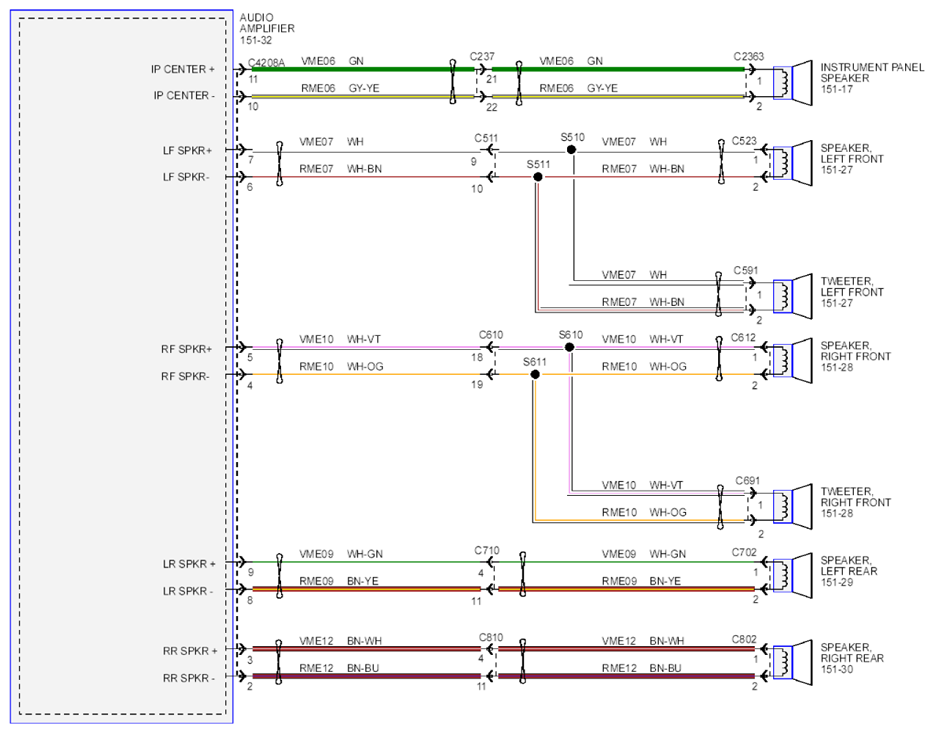

Fig 3: Audio System Navigation Schematic - Premium MKZ (3 Of 3)
