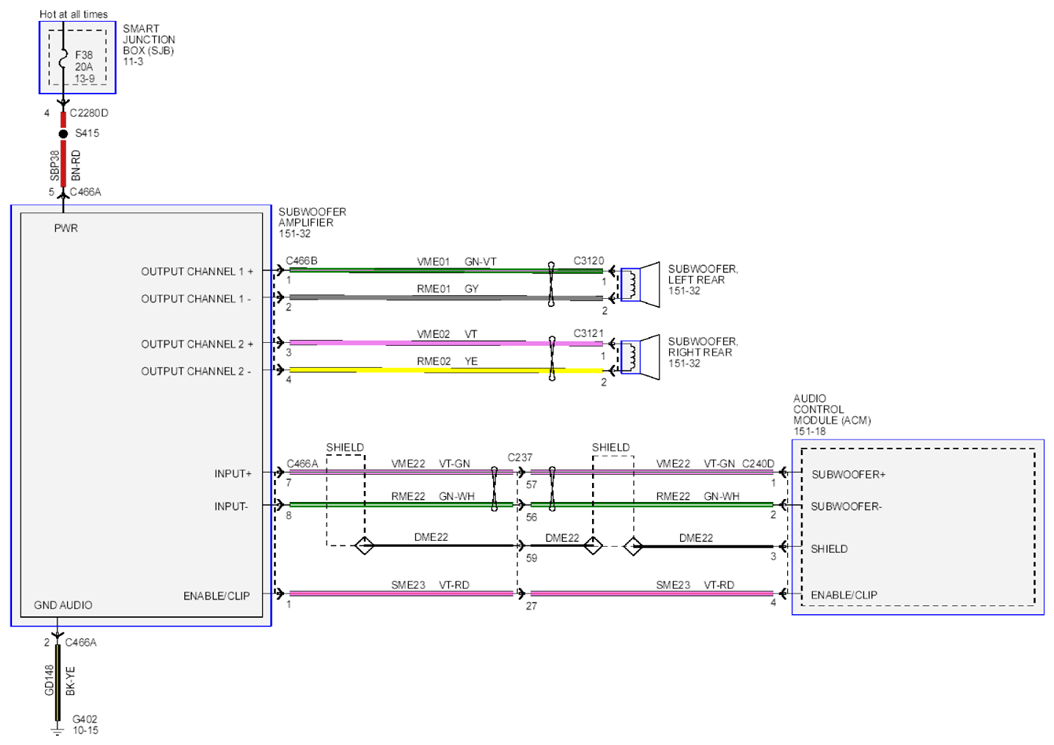

Fig 1: Audio System Navigation Schematic (Premium - MKZ) (1 Of 2)
Courtesy of FORD MOTOR CO.

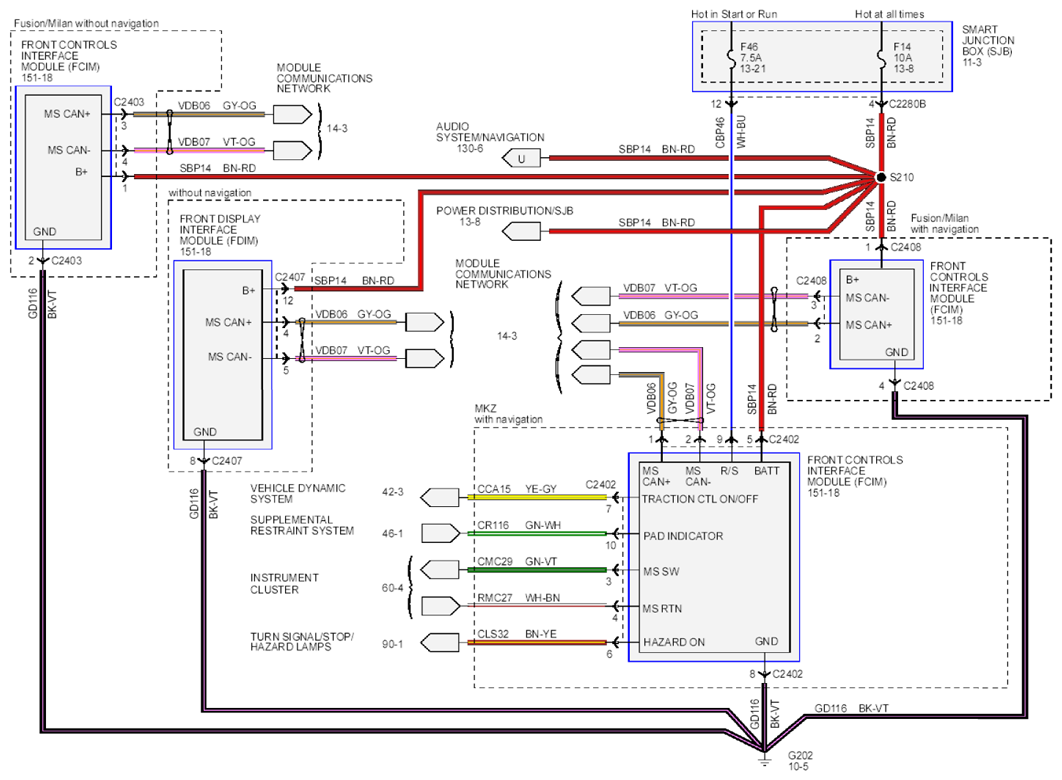

Fig 2: Audio System Navigation Schematic (Premium - MKZ) (2 Of 2)
